Airport Weather Analysis with NOAA ISD

Overview

This tutorial shows how to download, clean, and visualise long-term weather data for any airport in the world using the NOAA Integrated Surface Database (ISD) — no FTP, no API key, no paid data.

The example uses Athens Eleftherios Venizelos (LGAV), but every step works for any ICAO station code.

Outputs:

Plot	What it shows
Daily ribbon	Temperature range (min–max) for every day
Monthly ribbon	Smoothed monthly range with gradient line
Heatmap max	Monthly max temperature by year
Heatmap min	Monthly min temperature by year
Decomposition	Trend + seasonal + residual components

Packages

Code

library(rnoaa)
library(dplyr)
library(lubridate)
library(ggplot2)
library(ggfortify)   # autoplot() for decomposed time series

Code

# remotes::install_github("ropensci/rnoaa")   # use the GitHub version
# install.packages(c("dplyr", "lubridate", "ggplot2", "ggfortify"))

1. Find the station

NOAA ISD identifies stations by USAF and WBAN codes. The easiest way to find them is by ICAO airport code.

Code

stations <- isd_stations(refresh = FALSE)

# explore Greek stations
stations[stations$ctry %in% "GR", c("station_name","icao","usaf","wban","lat","lon")]

# A tibble: 92 × 6
   station_name          icao   usaf   wban    lat   lon
   <chr>                 <chr>  <chr>  <chr> <dbl> <dbl>
 1 ORESTIAS              ""     166000 99999  41.8  26.5
 2 SERRAI                ""     166060 99999  41.1  23.6
 3 KOMOTINI              ""     166100 99999  41.1  25.4
 4 FLORINA               ""     166130 99999  40.8  21.4
 5 ARISTOTELIS           "LGKA" 166140 99999  40.4  21.3
 6 EDESSA                ""     166181 99999  40.8  22.0
 7 SEDES(GAFB)           ""     166200 99999  40.6  23.0
 8 MAKEDONIA             "LGTS" 166220 99999  40.5  23.0
 9 MEGAS ALEXANDROS INTL "LGKV" 166240 99999  40.9  24.6
10 KAVALA/AMIGDHALEON    ""     166250 99999  40.9  24.4
# ℹ 82 more rows

Code

lgav    <- stations[stations$icao %in% "LGAV", ]
station <- lgav$station_name
usaf    <- lgav$usaf[1]
wban    <- lgav$wban[1]

message("Station : ", station)
message("USAF    : ", usaf, "   WBAN: ", wban)
message("Location: ", round(lgav$lat[1], 3), "°N  ", round(lgav$lon[1], 3), "°E")

Change "LGAV" to any ICAO code — "EGLL" for Heathrow, "KJFK" for New York, etc.

2. Download hourly ISD data

rnoaa::isd() replaces the old wget + FTP workflow. It downloads, decompresses, and parses the ISD binary format automatically. Each call fetches one year; a loop collects all years into a list.

Code

years     <- 2001:2026
data_list <- list()

for (yr in years) {
  tryCatch({
    d <- rnoaa::isd(usaf = usaf, wban = wban, year = yr, progress = FALSE)
    data_list[[as.character(yr)]] <- d
    message("  downloaded ", yr, " (", nrow(d), " rows)")
  }, error = function(e) message("  skip ", yr, ": ", conditionMessage(e)))
}

df_raw <- bind_rows(data_list)
message("Total rows: ", nrow(df_raw))

Years where data are unavailable are silently skipped by tryCatch. 2026 data may be partial depending on when you run this.

3. Clean: sentinel values and date parsing

Why sentinel values matter

NOAA ISD encodes missing measurements as 9999 in the raw file. After dividing by 10 (ISD stores all values as tenths of the unit), missing temperature becomes 999.9°C — a physically impossible value that will corrupt any aggregate (mean, max, min) if not removed.

Code

df_data <- df_raw |>
  mutate(
    date     = as.Date(date, format = "%Y%m%d"),   # isd() returns "YYYYMMDD" strings
    temp     = as.numeric(temperature) / 10,
    dew      = as.numeric(temperature_dewpoint) / 10,
    wind_spd = as.numeric(wind_speed) / 10,
    slp      = as.numeric(air_pressure) / 10
  ) |>
  mutate(across(c(temp, dew, wind_spd, slp),
                ~ ifelse(. > 900 | . < -200, NA, .))) |>
  filter(!is.na(date))

df_data[df_data == 999.9] <- NA          # catch any remaining sentinels
df_data$month <- sub("-\\d{2}$", "", df_data$date)   # "YYYY-MM" column

Two-pass sentinel removal:

ifelse(. > 900 | . < -200, NA, .) — catches the scaled sentinels immediately after division
df_data[df_data == 999.9] <- NA — safety net for any that slipped through

4. Daily and monthly aggregates

plyr::ddply with numcolwise applies a function (here max or min) to every numeric column, grouped by date or month. Columns are then renamed with _max / _min suffixes before merging.

Code

daily_max <- plyr::ddply(df_data, "date",  plyr::numcolwise(max, na.rm = TRUE))
daily_min <- plyr::ddply(df_data, "date",  plyr::numcolwise(min, na.rm = TRUE))
month_max <- plyr::ddply(df_data, "month", plyr::numcolwise(max, na.rm = TRUE))
month_min <- plyr::ddply(df_data, "month", plyr::numcolwise(min, na.rm = TRUE))

names(daily_max)[2:length(daily_max)] <- paste0(names(daily_max)[2:length(daily_max)], "_max")
names(daily_min)[2:length(daily_min)] <- paste0(names(daily_min)[2:length(daily_min)], "_min")
names(month_max)[2:length(month_max)] <- paste0(names(month_max)[2:length(month_max)], "_max")
names(month_min)[2:length(month_min)] <- paste0(names(month_min)[2:length(month_min)], "_min")

daily <- merge(daily_max, daily_min)
month <- merge(month_max, month_min)

daily$date       <- as.Date(daily$date)
month$month_date <- as.Date(paste0(month$month, "-01"))
month            <- month[order(month$month_date), ]

Code

head(daily[, c("date","temp_max","temp_min","wind_spd_max")], 6)

        date temp_max temp_min wind_spd_max
1 2004-01-05        9        7          6.2
2 2004-01-06        9        2          8.7
3 2004-01-07        4       -3          8.2
4 2004-01-08        9       -5          4.6
5 2004-01-09        9       -1          3.1
6 2004-01-10       11        4          9.3

5. Plots

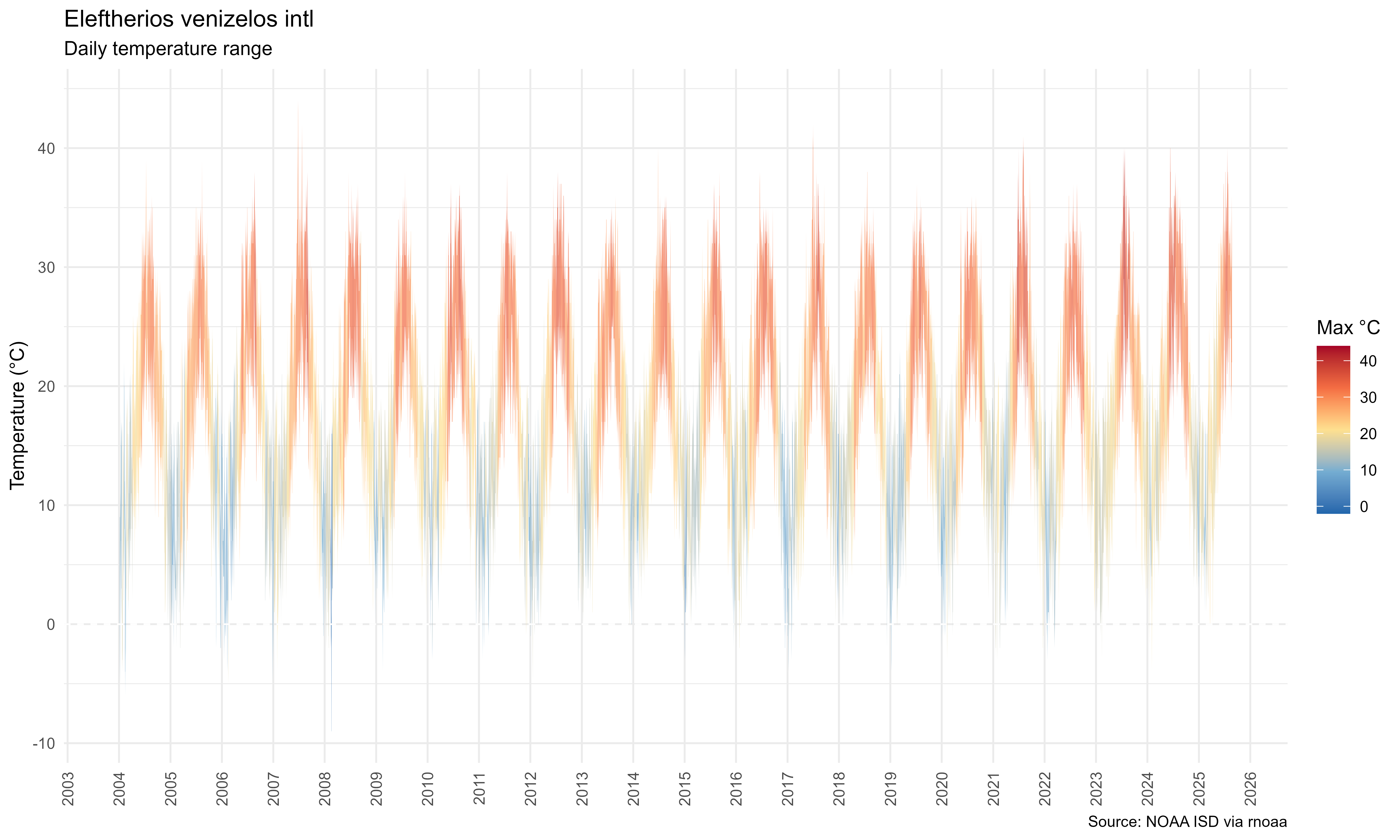

Daily temperature ribbon

geom_ribbon fills the area between the daily min and max. The fill colour is mapped to temp_max through a diverging gradient — cold days are blue, hot days are red.

Code

plot_daily <- ggplot(daily, aes(x = date)) +
  geom_ribbon(aes(ymin = temp_min, ymax = temp_max, fill = temp_max), alpha = 0.7) +
  scale_fill_gradientn(
    colours = c("#2166ac","#74add1","#fee090","#f46d43","#a50026"),
    name    = "Max °C"
  ) +
  scale_x_date(date_breaks = "1 year", date_labels = "%Y") +
  geom_hline(yintercept = 0, color = "white", linewidth = 0.4, linetype = "dashed") +
  labs(
    title    = str_aes(station),
    subtitle = "Daily temperature range",
    x        = NULL, y = "Temperature (°C)",
    caption  = "Source: NOAA ISD via rnoaa"
  ) +
  theme_minimal(base_size = 10) +
  theme(
    plot.background    = element_rect(fill = "white", color = NA),
    axis.text.x        = element_text(angle = 90, vjust = 0.5, hjust = 1),
    panel.grid.minor.x = element_blank()
  )

plot_daily

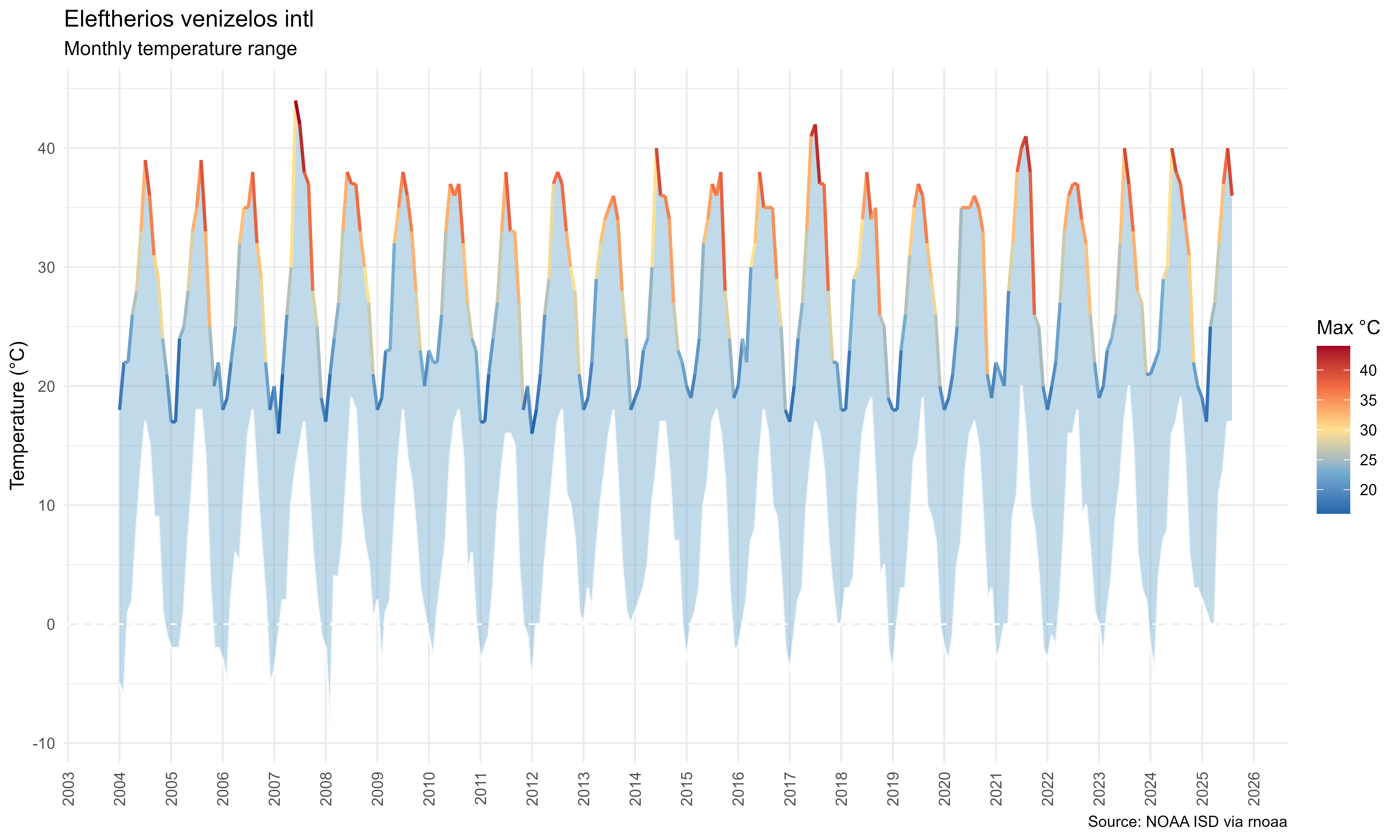

Monthly ribbon

Aggregating to monthly level removes the noise and makes the seasonal pattern clearer. The max temperature gets a coloured gradient line; the min stays white.

Code

plot_monthly <- ggplot(month, aes(x = month_date)) +
  geom_ribbon(aes(ymin = temp_min, ymax = temp_max), fill = "#74add1", alpha = 0.45) +
  geom_line(aes(y = temp_max, color = temp_max), linewidth = 0.8) +
  geom_line(aes(y = temp_min), color = "white", linewidth = 0.6, alpha = 0.8) +
  scale_color_gradientn(
    colours = c("#2166ac","#74add1","#fee090","#f46d43","#a50026"),
    name    = "Max °C"
  ) +
  scale_x_date(date_breaks = "1 year", date_labels = "%Y") +
  geom_hline(yintercept = 0, color = "white", linewidth = 0.4, linetype = "dashed") +
  labs(
    title    = str_aes(station),
    subtitle = "Monthly temperature range",
    x        = NULL, y = "Temperature (°C)",
    caption  = "Source: NOAA ISD via rnoaa"
  ) +
  theme_minimal(base_size = 10) +
  theme(
    plot.background    = element_rect(fill = "white", color = NA),
    axis.text.x        = element_text(angle = 90, vjust = 0.5, hjust = 1),
    panel.grid.minor.x = element_blank()
  )

plot_monthly

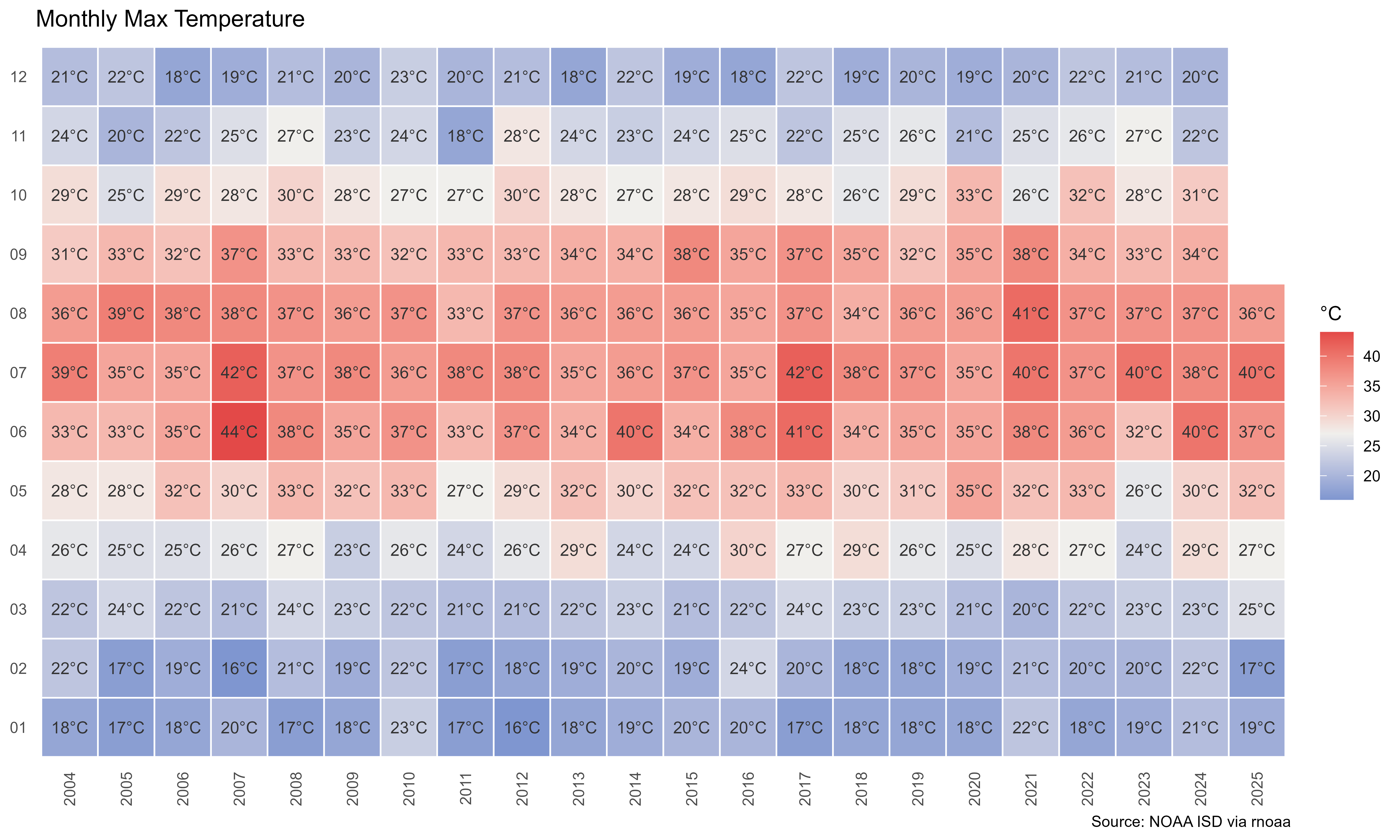

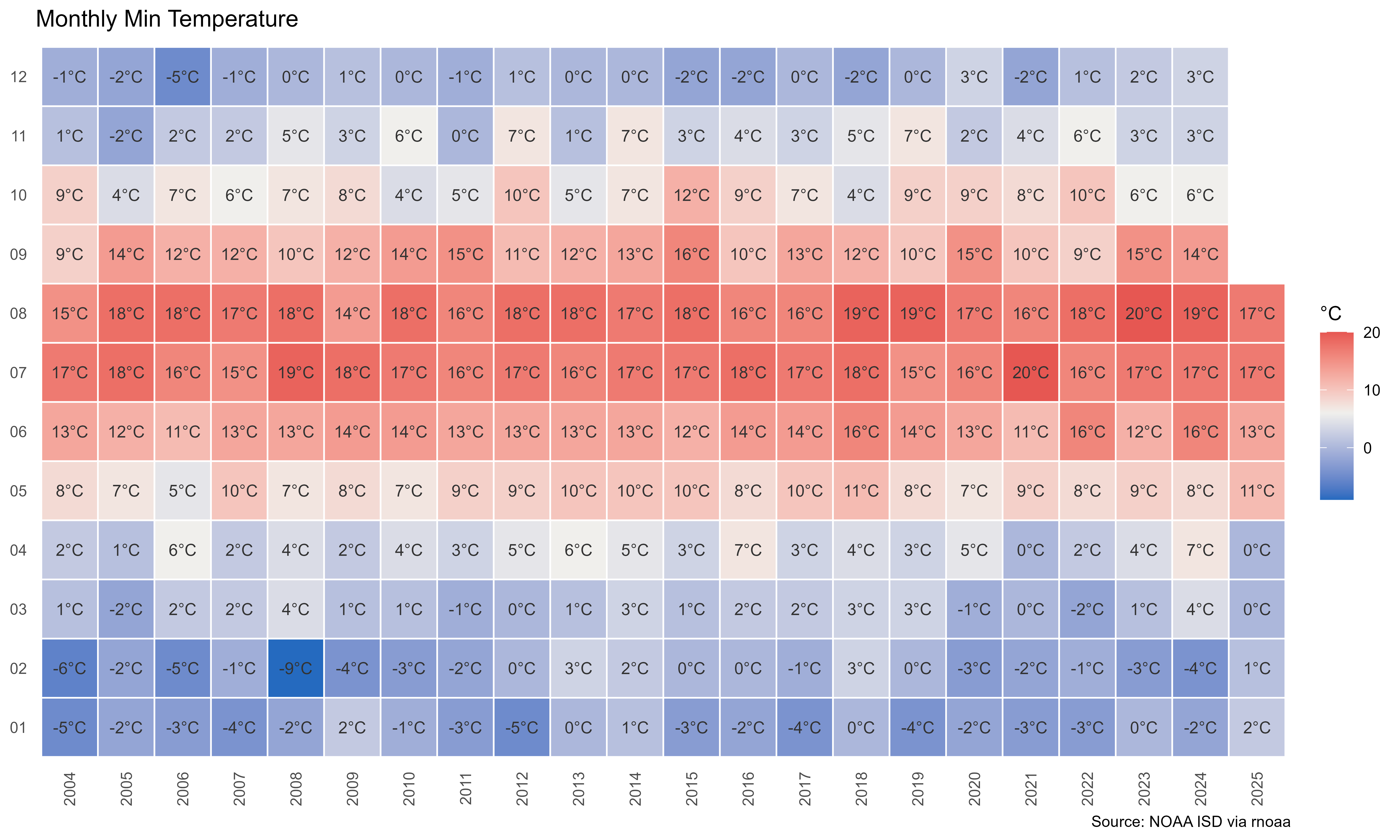

Heatmaps

A calendar heatmap puts year on the x-axis and month on the y-axis, with temperature encoded as fill colour. This format is ideal for spotting anomalies — an unusually hot August or a cold February stands out immediately.

Code

month$year <- substr(month$month, 1, 4)
month$mon  <- substr(month$month, 6, 7)

plot_heat_max <- ggplot(month, aes(x = year, y = mon, fill = temp_max)) +
  geom_tile(color = "white", linewidth = 0.4) +
  geom_text(aes(label = paste0(round(temp_max, 1), "°C")),
            color = "grey20", size = 3) +
  scale_fill_gradient2(
    low      = "#256abf", mid = "#f0efec", high = "#e34948",
    midpoint = median(month$temp_max, na.rm = TRUE),
    name     = "°C"
  ) +
  labs(title = "Monthly Max Temperature", x = NULL, y = NULL,
       caption = "Source: NOAA ISD via rnoaa") +
  theme_minimal(base_size = 10) +
  theme(panel.grid = element_blank(),
        axis.text.x = element_text(angle = 90, vjust = 0.5, hjust = 1))

plot_heat_min <- ggplot(month, aes(x = year, y = mon, fill = temp_min)) +
  geom_tile(color = "white", linewidth = 0.4) +
  geom_text(aes(label = paste0(round(temp_min, 1), "°C")),
            color = "grey20", size = 3) +
  scale_fill_gradient2(
    low      = "#256abf", mid = "#f0efec", high = "#e34948",
    midpoint = median(month$temp_min, na.rm = TRUE),
    name     = "°C"
  ) +
  labs(title = "Monthly Min Temperature", x = NULL, y = NULL,
       caption = "Source: NOAA ISD via rnoaa") +
  theme_minimal(base_size = 10) +
  theme(panel.grid = element_blank(),
        axis.text.x = element_text(angle = 90, vjust = 0.5, hjust = 1))

plot_heat_max

Code

plot_heat_min

All four together

Code

plot_multiplot(
  plotlist = list(plot_daily, plot_monthly, plot_heat_max, plot_heat_min),
  cols = 1
)

[[1]]

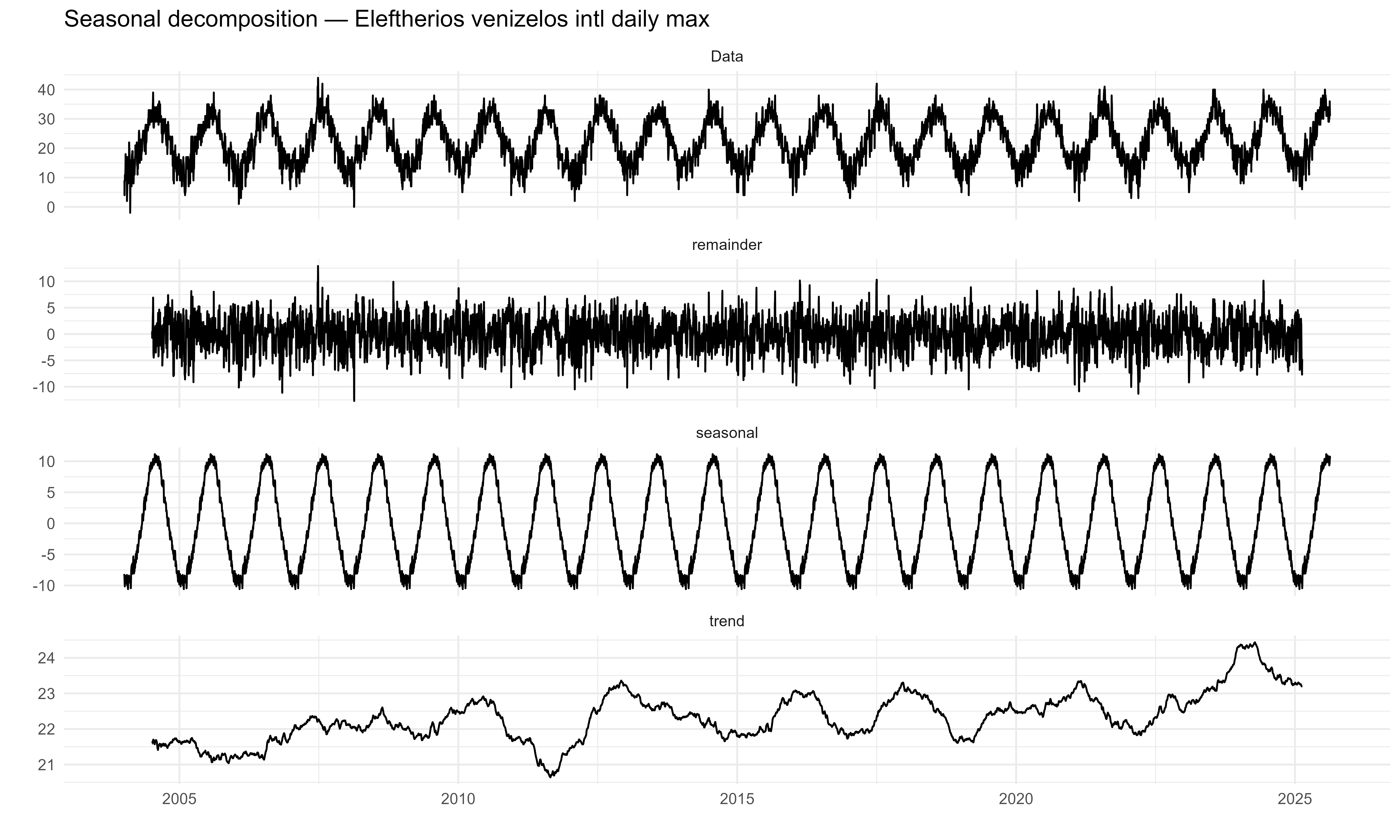

6. Seasonal decomposition

decompose() splits a time series into three additive components:

Trend — the long-term direction (is the station getting warmer?)
Seasonal — the repeating annual cycle (summer peaks, winter troughs)
Random — what’s left after removing trend and seasonal (unusual events, measurement noise)

The frequency = 365 tells R the series repeats annually. yday() sets the correct starting position within the first year.

Code

ts_temp <- ts(
  daily$temp_max,
  frequency = 365,
  start     = c(year(min(daily$date)), yday(min(daily$date)))
)

fit <- decompose(ts_temp)

autoplot(fit) +
  labs(title = paste("Seasonal decomposition —", str_aes(station), "daily max")) +
  theme_minimal(base_size = 10)

Reading the decomposition: If the trend panel slopes upward over 20+ years, that is a local warming signal. The random panel should look like white noise — large spikes indicate extreme weather events.

Adapting to another airport

Change only these two lines and re-run everything:

Code

lgav    <- stations[stations$icao %in% "EGLL", ]   # London Heathrow
years   <- 2000:2026

Any ICAO code in the ISD station list will work. To search by country:

Code

stations[stations$ctry %in% "UK", c("station_name","icao","usaf","wban")]

Data source

Resource	URL
NOAA ISD	`https://www.ncei.noaa.gov/products/land-based-station/integrated-surface-database`
rnoaa package	`https://github.com/ropensci/rnoaa`
Station list	`isd_stations()` — cached locally after first call

Rendered with R 4.6.1 · rnoaa · ggplot2 · plyr · lubridate
