Plot loadings

Usage

plot_loadings(
  model,
  matrix_type = NULL,
  title = "",
  base_size = 10,
  color = c("#5E912C", "white", "#5F2C91"),
  sort = TRUE
)

Arguments

model: psych EFA model
matrix_type: "pattern" "structure"
title: plot title
base_size: base font size
color: color ranges for heatmap
sort: TRUE or FALSE sort loadings

Examples

model<-psych::fa(mtcars,nfactors=2,rotate="oblimin",fm="pa",oblique.scores=TRUE)

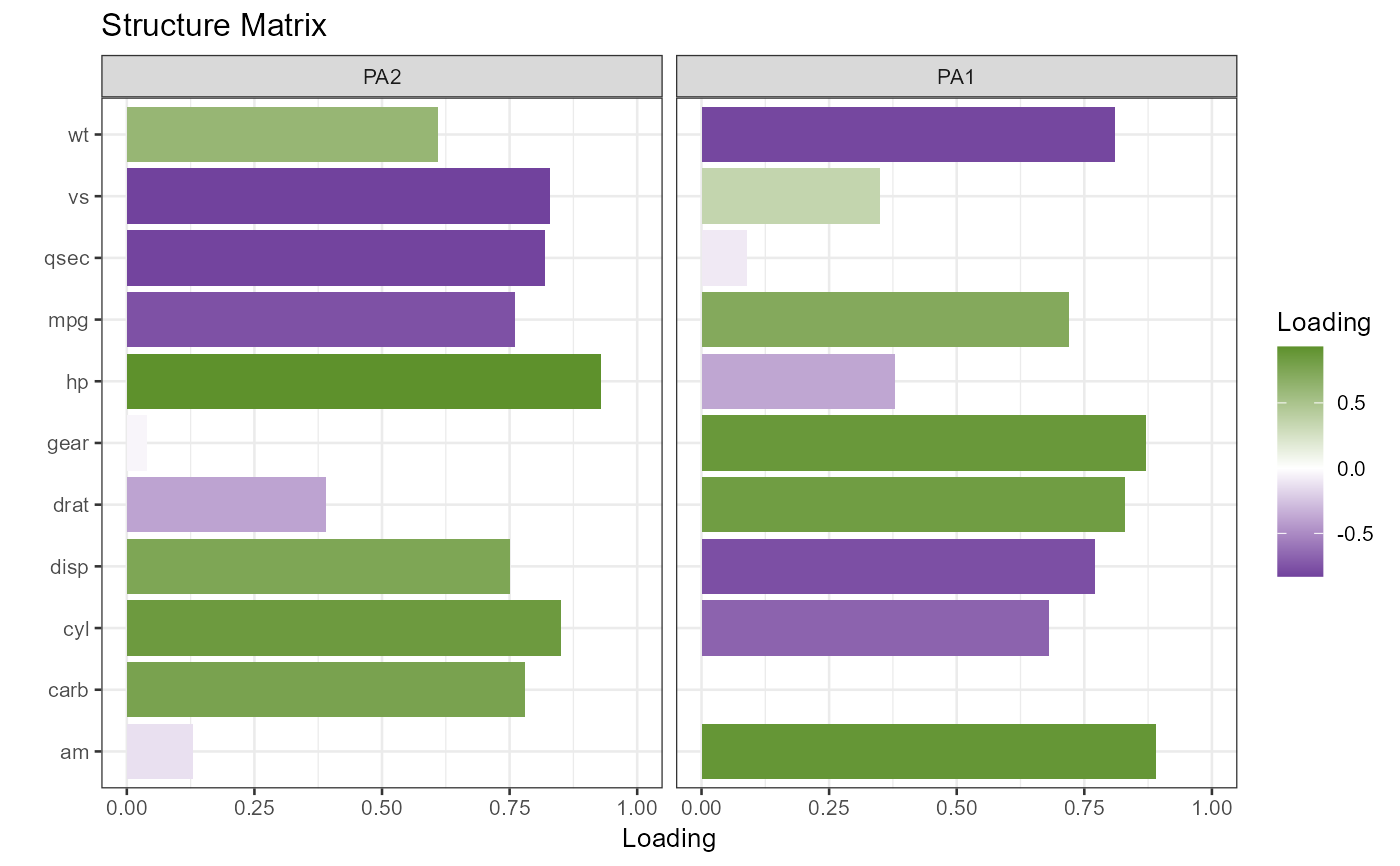

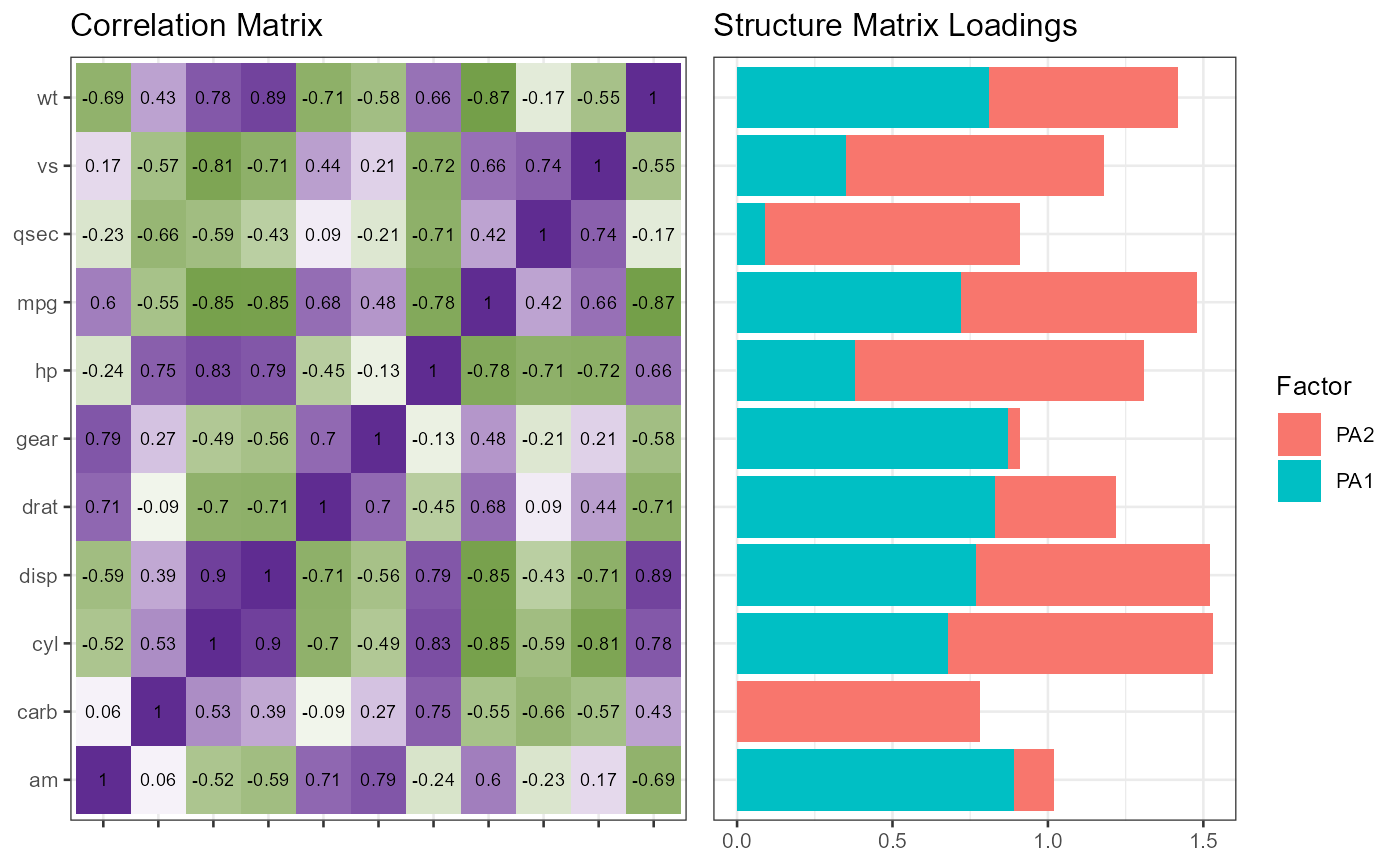

plot_loadings(model=model,matrix_type="structure")

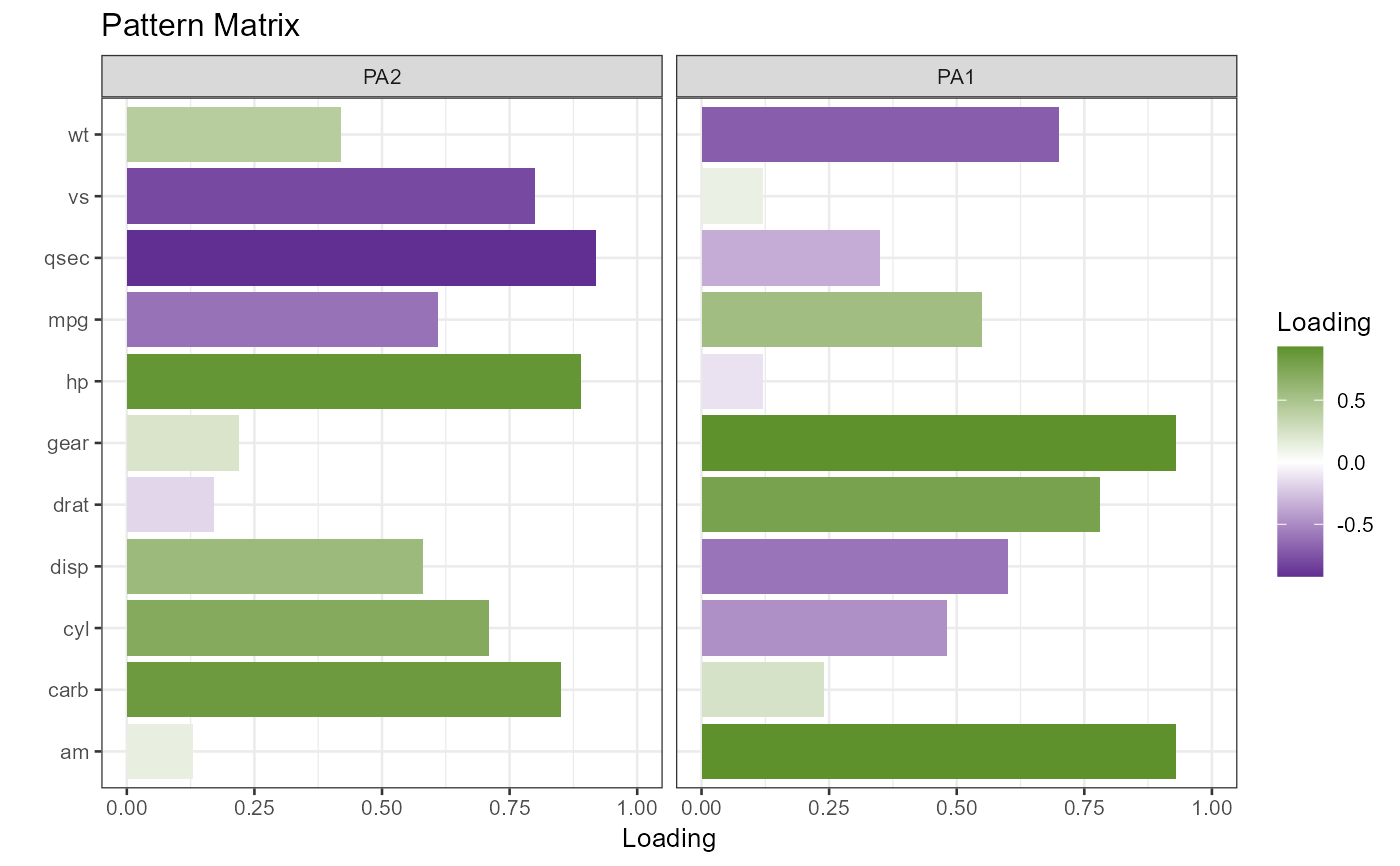

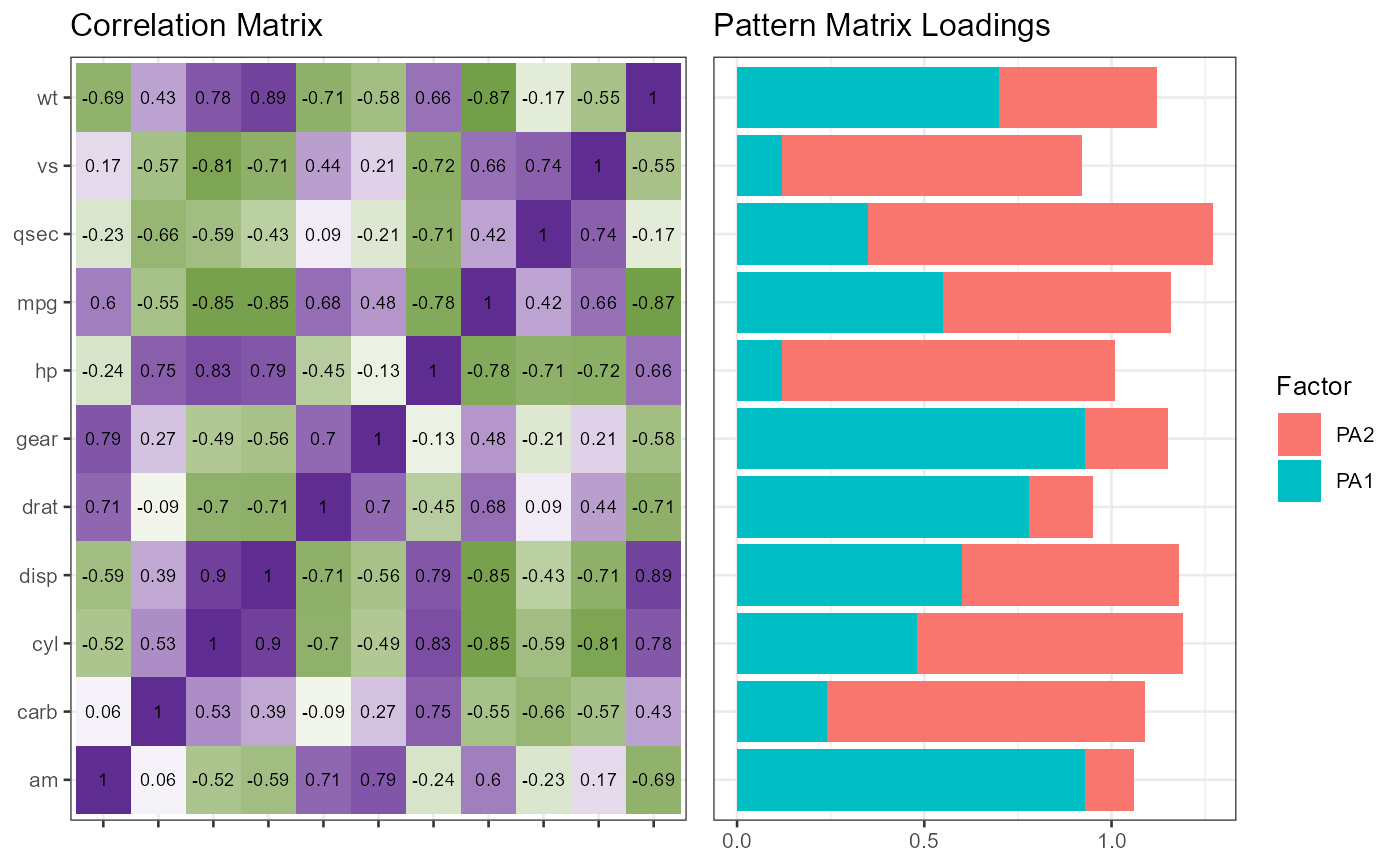

plot_loadings(model=model,matrix_type="pattern")


cm<-matrix(c(1,.8,.8,.1,.1,.1,
             .8,1,.8,.1,.1,.1,
             .8,.8,1,.1,.1,.1,
             .1,.1,.1,1,.8,.8,
             .1,.1,.1,.8,1,.8,
             .1,.1,.1,.8,.8,1),
             ncol=6,nrow=6)

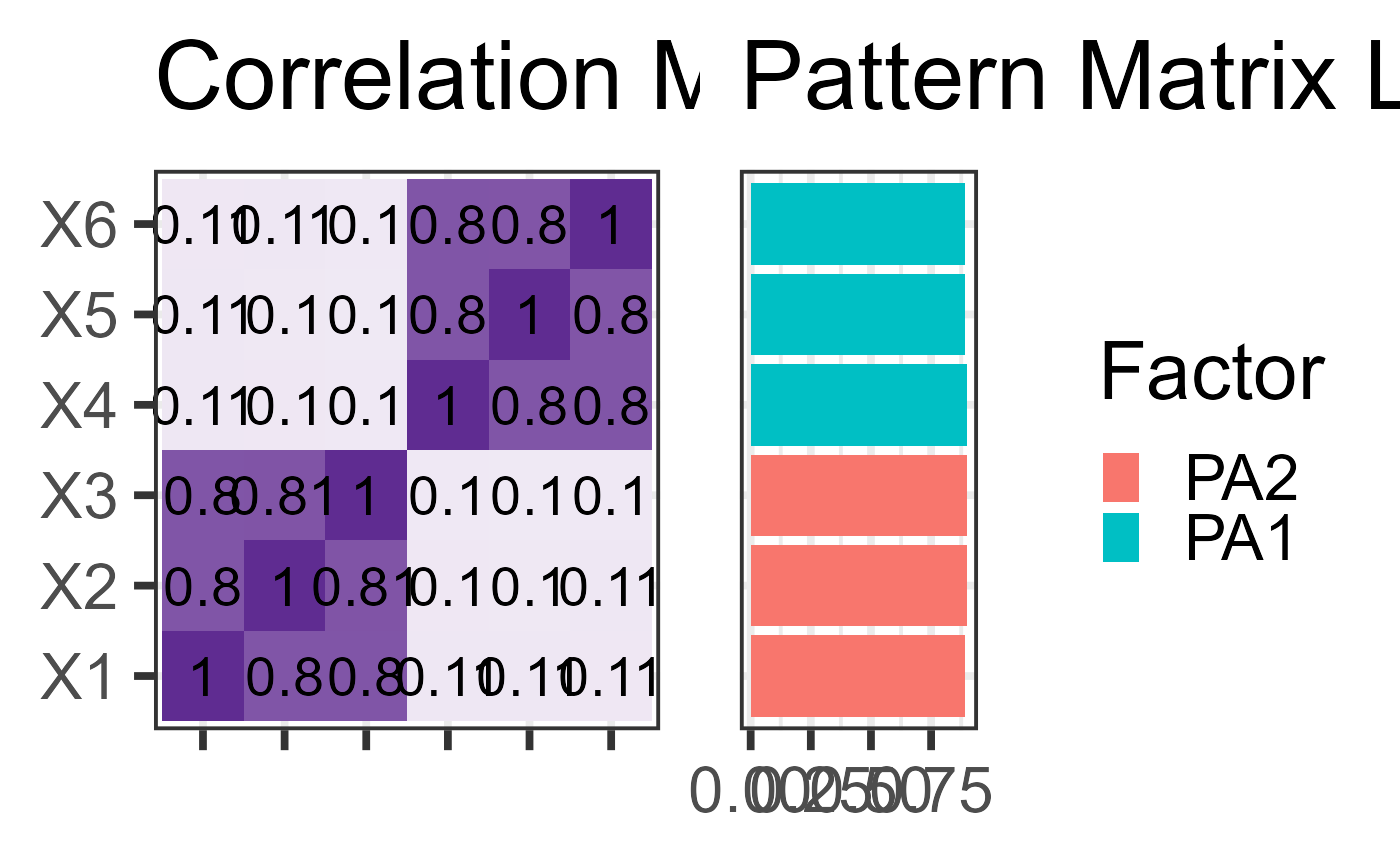

df1<-generate_correlation_matrix(cm,nrows=10000)
model1<-psych::fa(df1,nfactors=2,rotate="oblimin",fm="pa",oblique.scores=TRUE)

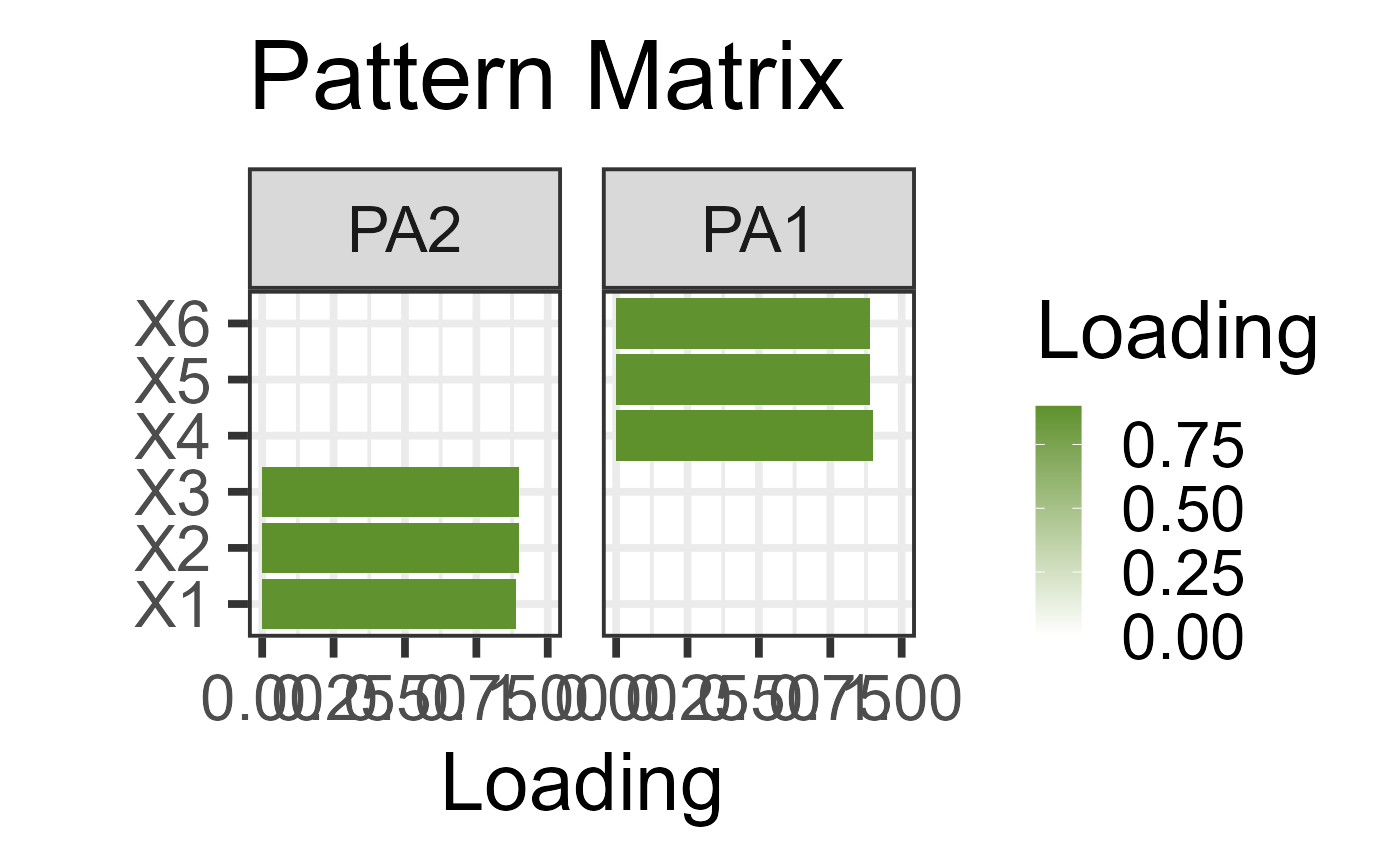

plot_loadings(model=model1,matrix_type="pattern",base_size=30)


cm<-matrix(c(1,.1,.1,.1,.1,.1,
             .1,1,.1,.1,.1,.1,
             .1,.1,1,.1,.1,.1,
             .1,.1,.1,1,.8,.8,
             .1,.1,.1,.8,1,.8,
             .1,.1,.1,.8,.8,1),
             ncol=6,nrow=6)

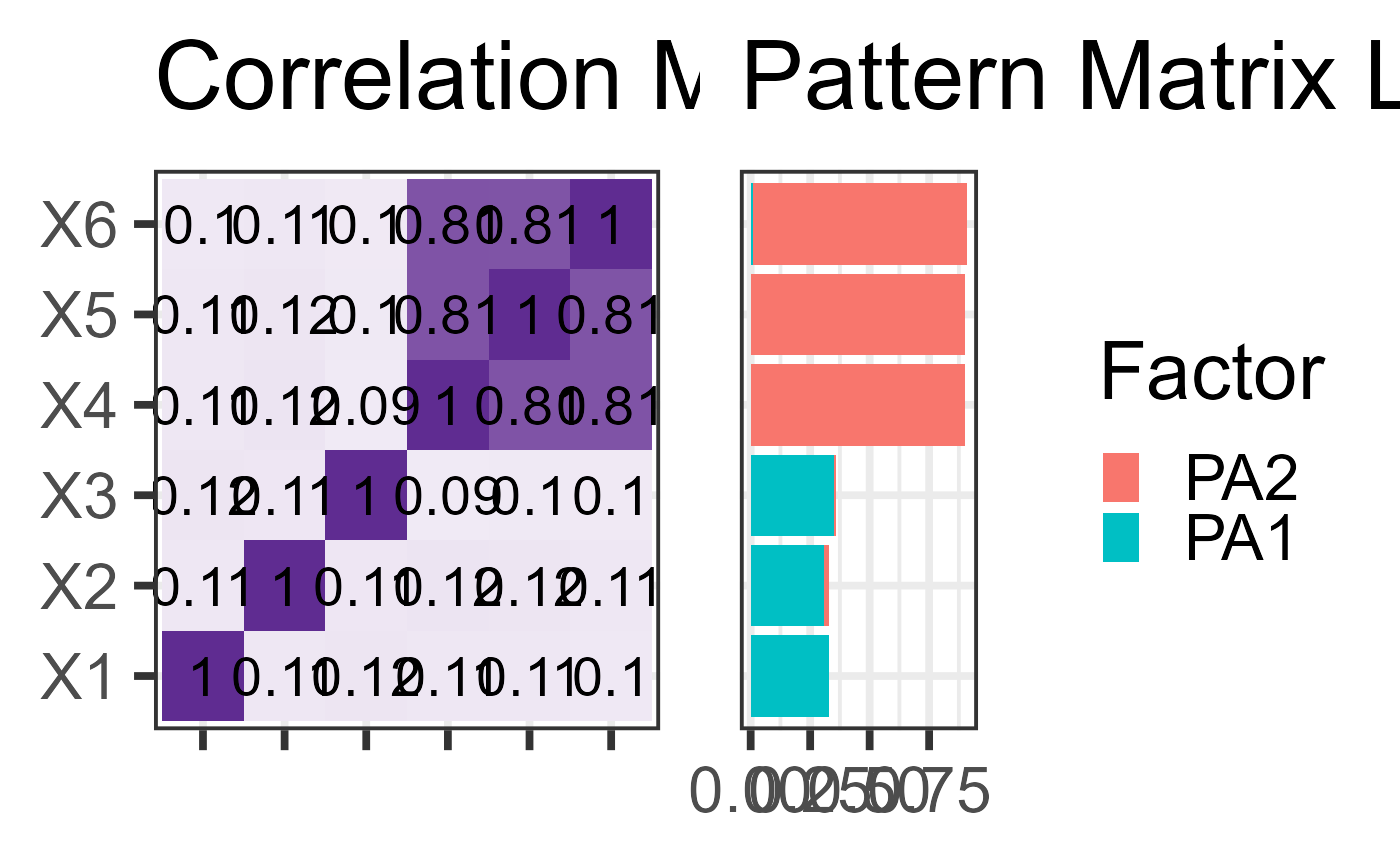

df1<-generate_correlation_matrix(cm,nrows=10000)
model2<-psych::fa(df1,nfactors=2,rotate="oblimin",fm="pa",oblique.scores=TRUE)

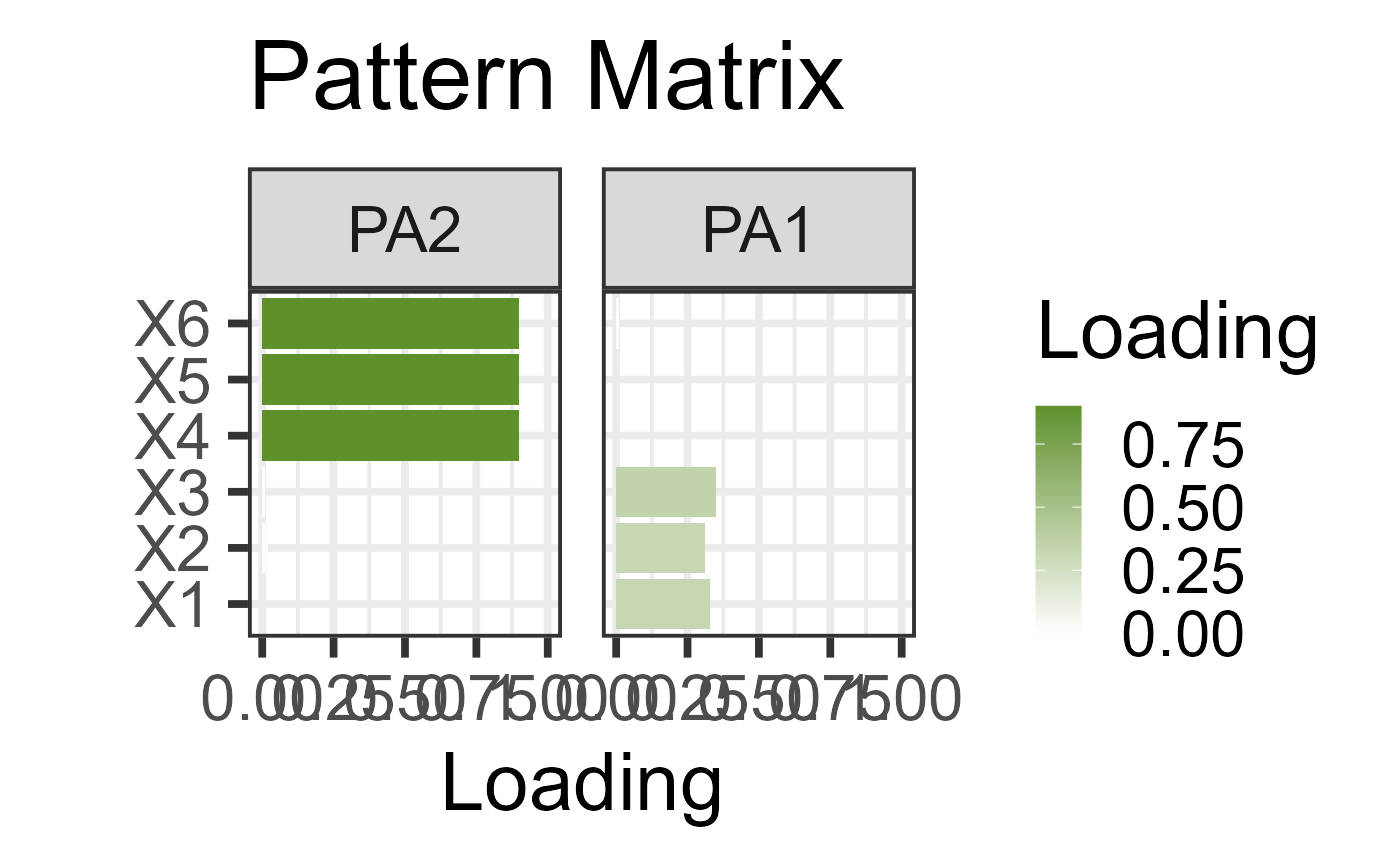

plot_loadings(model=model2,matrix_type="pattern",base_size=30)


cm<-matrix(c(1,.01,.01,.01,.01,.01,
             .01,1,.01,.01,.01,.01,
             .01,.01,1,.01,.01,.01,
             .01,.01,.01,1,.01,.01,
             .01,.01,.01,.01,1,.01,
             .01,.01,.01,.01,.01,1),
             ncol=6,nrow=6)

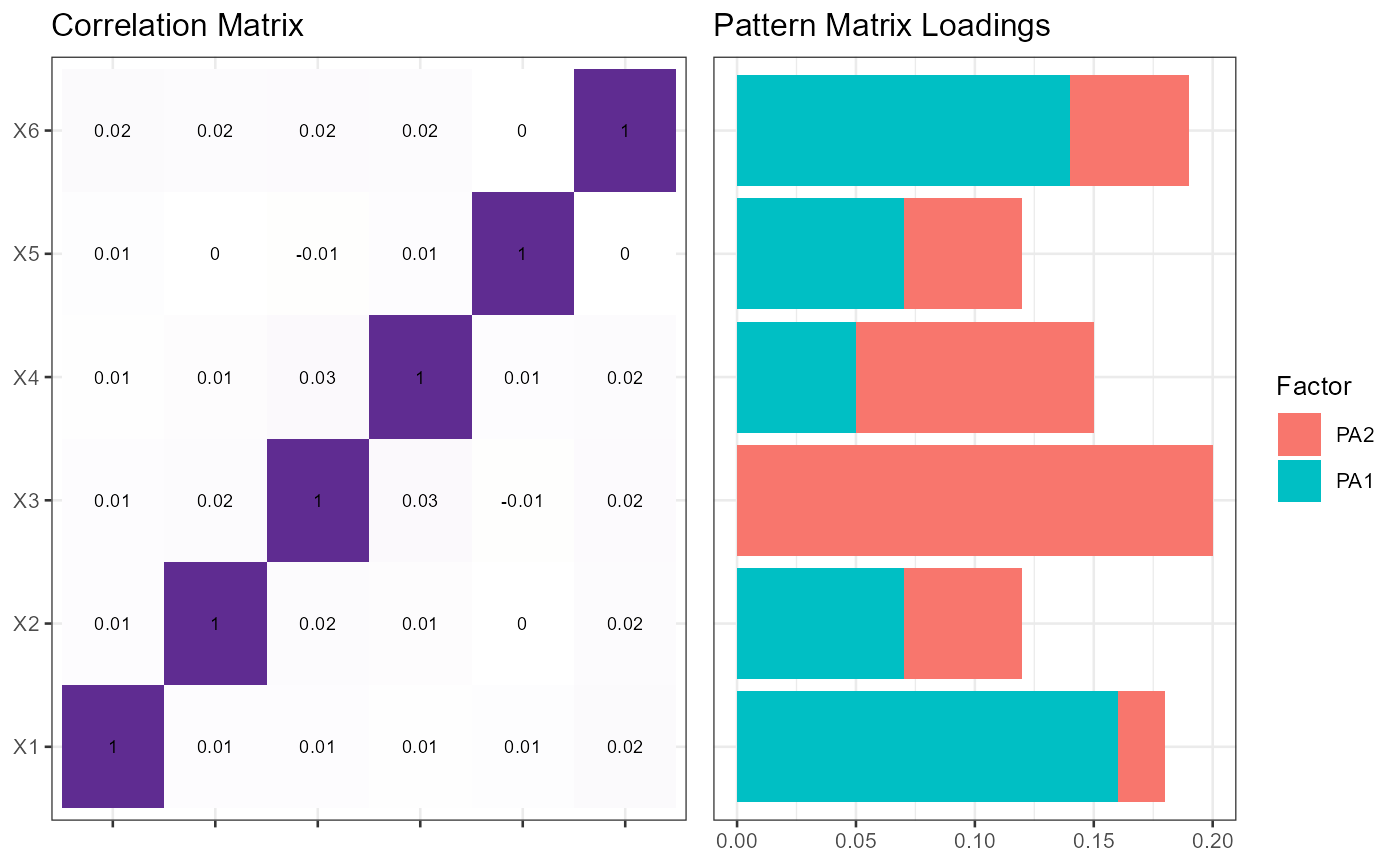

df1<-generate_correlation_matrix(cm,nrows=10000)
model3<-psych::fa(df1,nfactors=2,rotate="oblimin",fm="pa",oblique.scores=TRUE)

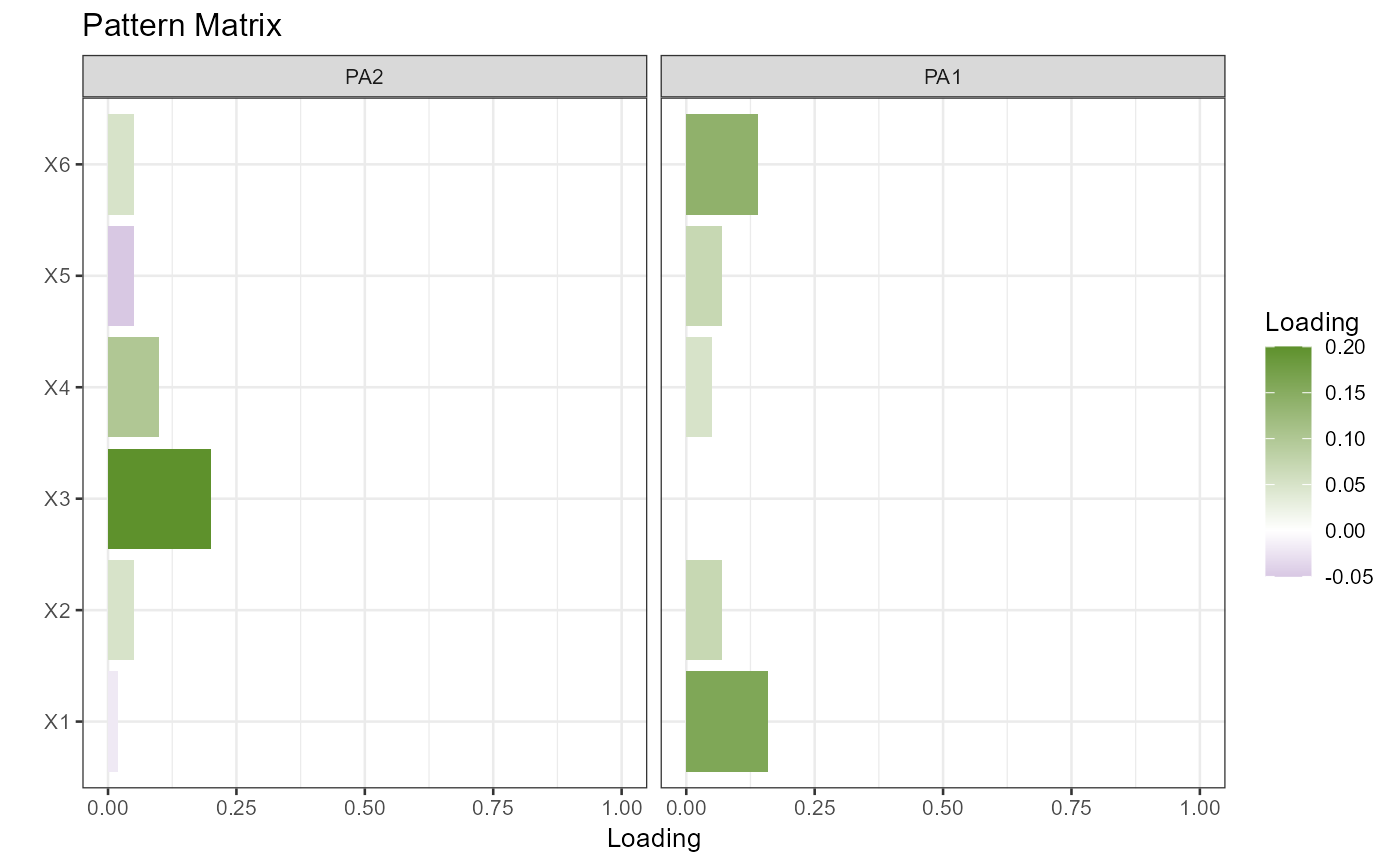

plot_loadings(model=model3,matrix_type="pattern",base_size=10)
