Plot thurstonian icc

Plot icc curves, computed with the compute_icc_thurstonian function, for binary thurstonian coded items for a single dimension

Usage

plot_icc_thurstonian(mydata, title = "Item Characteristic Curve")

Arguments

mydata

dataframe from compute_icc_thurstonian function

title

plot title

Examples

gamma<-c(0.556,-1.253,-1.729,0.618,0.937,0.295,-0.672,-1.127,-0.446,0.632,1.147,0.498)
psi<-c(2.172,1.883,2.055,1.869,2.231,2.100,1.762,1.803,1.565,1.892,1.794,1.686)
lambda<-c(1.082,1.082,-1.297,-1.297,0.802,0.802,1.083,1.083)
gamma<-gamma[response_dimension(c(1:12),3,c(1,2))]
psi<-psi[response_dimension(c(1:12),3,c(1,2))]
eta<-seq(-6,6,by=1)
result<-compute_icc_thurstonian(eta=eta,gamma=gamma,lambda=lambda,psi=psi,plot=TRUE)

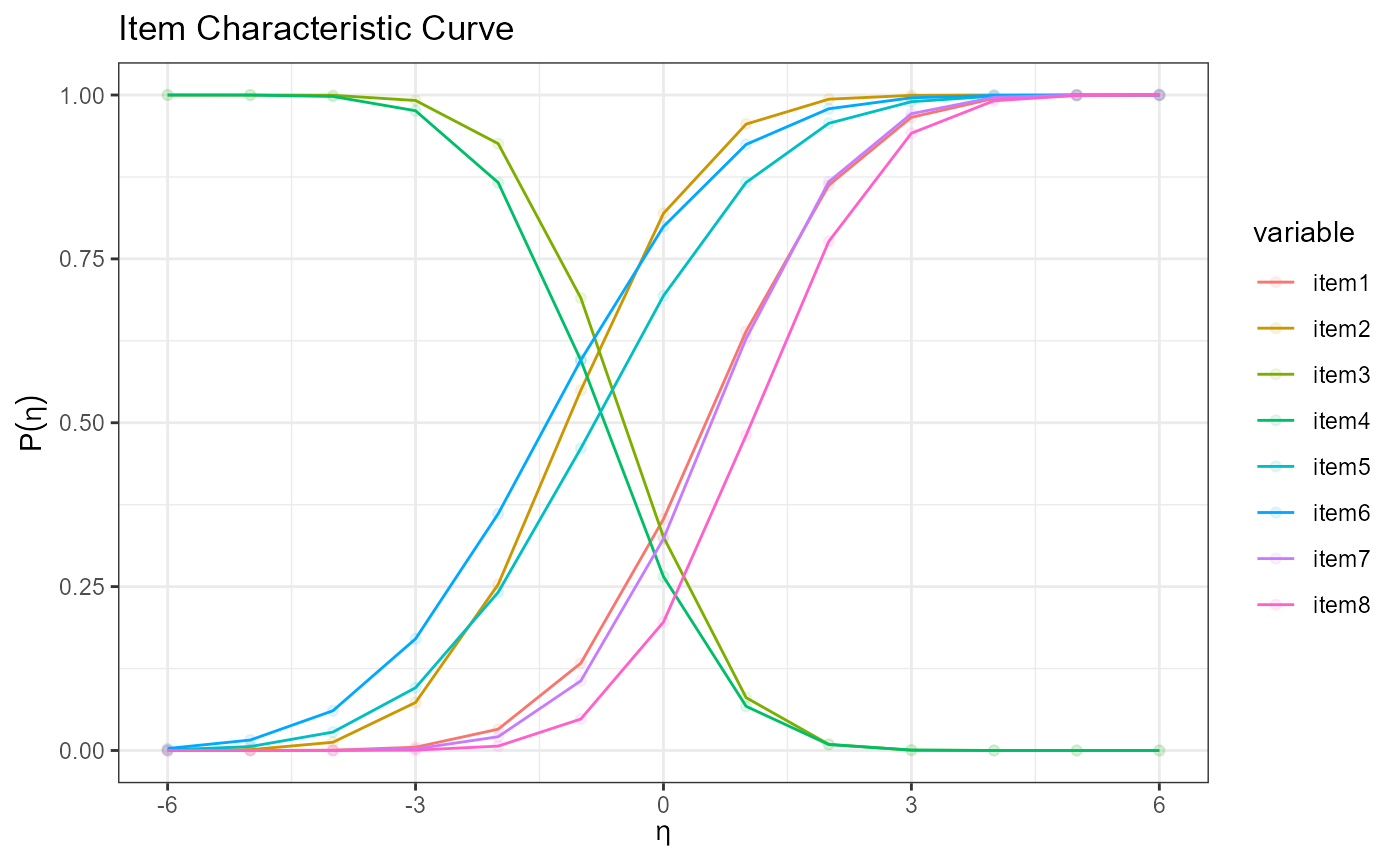

plot_icc_thurstonian(result$icc)
