IPIP-NEO-120: Measurement Invariance Across Sex, Countries and Age

Description

Comparing the mean scores of two groups assumes that the questionnaire measures the same thing in the same way in both. Measurement invariance tests that assumption, in a sequence of increasingly strict multi-group confirmatory factor models (Vandenberg & Lance, 2000; Putnick & Bornstein, 2016):

Level	Constraint across groups	What it allows
Configural	Same factor structure	The construct has the same form
Metric (weak)	Equal loadings	Comparing correlations and regressions
Scalar (strong)	Equal loadings and intercepts	Comparing means

If scalar invariance fails, a group difference in observed scores mixes a difference in the trait with differences in how particular items or facets work in each group. Partial invariance (Byrne, Shavelson & Muthén, 1989) frees the intercepts that differ and compares latent means through the indicators that remain invariant. A step is accepted here when it lowers CFI by no more than .010 and raises RMSEA by no more than .015 (Chen, 2007); chi-square tests are not used, because with thousands of respondents per group they reject any constraint.

The questionnaire is the IPIP-NEO-120 (Johnson, 2014): 120 public-domain items from the International Personality Item Pool that measure the 30 facets of the NEO PI-R five-factor model, four items per facet and six facets per domain. Respondents rated each item from 1 (very inaccurate) to 5 (very accurate). The tests below ask whether its scores can be compared between men and women, between 12 countries and between age groups, and what the comparisons show where they are allowed.

Data and cleaning

Johnson made the 619,150 protocols collected online between 2001 and 2011 freely available on the Open Science Framework, with the scoring key. data/prepare_ipipneo120.R applies the rules below. Johnson had already screened the protocols, so the consistency check (the even-odd index of Johnson, 2005, on the 30 pairs of half-facets) removes very few; most exclusions are incomplete protocols.

Rule	Excluded	Remaining
All 120 items answered	208,774	410,376
Sex recorded	0	619,150
Age between 14 and 80	10,260	608,890
Even-odd consistency at least .30	2,888	616,262
All rules together	215,109	404,041

From the cleaned protocols, a reproducible random sample was kept: 30,000 from the USA, used for the comparisons of sex and age within one country, and up to 3,000 from each of 11 other countries.

Country	Respondents	% women	Mean age	SD age
USA	30,000	60.0	24.9	9.9
Canada	3,000	61.2	25.7	10.2
UK	3,000	55.8	26.0	10.3
Australia	3,000	63.6	26.3	10.0
Ireland	2,212	55.9	25.3	8.9
New Zealand	2,549	56.6	26.5	10.3
Singapore	3,000	55.7	21.2	4.8
India	3,000	36.8	26.2	7.1
Philippines	2,931	65.2	21.7	6.4
Netherlands	1,977	50.8	27.2	9.5
Sweden	1,573	47.8	28.2	9.6
Germany	1,384	47.6	26.8	8.3

Item List

Show the 120 items with their facet and keying

Item	Domain	Code	Facet	Key	Wording
I1	Neuroticism	N1	Anxiety	+	Worry about things.
I2	Extraversion	E1	Friendliness	+	Make friends easily.
I3	Openness	O1	Imagination	+	Have a vivid imagination.
I4	Agreeableness	A1	Trust	+	Trust others.
I5	Conscientiousness	C1	Self-Efficacy	+	Complete tasks successfully.
I6	Neuroticism	N2	Anger	+	Get angry easily.
I7	Extraversion	E2	Gregariousness	+	Love large parties.
I8	Openness	O2	Artistic Interests	+	Believe in the importance of art.
I9	Agreeableness	A2	Morality	-	Use others for my own ends.
I10	Conscientiousness	C2	Orderliness	+	Like to tidy up.
I11	Neuroticism	N3	Depression	+	Often feel blue.
I12	Extraversion	E3	Assertiveness	+	Take charge.
I13	Openness	O3	Emotionality	+	Experience my emotions intensely.
I14	Agreeableness	A3	Altruism	+	Love to help others.
I15	Conscientiousness	C3	Dutifulness	+	Keep my promises.
I16	Neuroticism	N4	Self-Consciousness	+	Find it difficult to approach others.
I17	Extraversion	E4	Activity Level	+	Am always busy.
I18	Openness	O4	Adventurousness	+	Prefer variety to routine.
I19	Agreeableness	A4	Cooperation	-	Love a good fight.
I20	Conscientiousness	C4	Achievement-Striving	+	Work hard.
I21	Neuroticism	N5	Immoderation	+	Go on binges.
I22	Extraversion	E5	Excitement-Seeking	+	Love excitement.
I23	Openness	O5	Intellect	+	Love to read challenging material.
I24	Agreeableness	A5	Modesty	-	Believe that I am better than others.
I25	Conscientiousness	C5	Self-Discipline	+	Am always prepared.
I26	Neuroticism	N6	Vulnerability	+	Panic easily.
I27	Extraversion	E6	Cheerfulness	+	Radiate joy.
I28	Openness	O6	Liberalism	+	Tend to vote for liberal political candidates.
I29	Agreeableness	A6	Sympathy	+	Sympathize with the homeless.
I30	Conscientiousness	C6	Cautiousness	-	Jump into things without thinking.
I31	Neuroticism	N1	Anxiety	+	Fear for the worst.
I32	Extraversion	E1	Friendliness	+	Feel comfortable around people.
I33	Openness	O1	Imagination	+	Enjoy wild flights of fantasy.
I34	Agreeableness	A1	Trust	+	Believe that others have good intentions.
I35	Conscientiousness	C1	Self-Efficacy	+	Excel in what I do.
I36	Neuroticism	N2	Anger	+	Get irritated easily.
I37	Extraversion	E2	Gregariousness	+	Talk to a lot of different people at parties.
I38	Openness	O2	Artistic Interests	+	See beauty in things that others might not notice.
I39	Agreeableness	A2	Morality	-	Cheat to get ahead.
I40	Conscientiousness	C2	Orderliness	-	Often forget to put things back in their proper place.
I41	Neuroticism	N3	Depression	+	Dislike myself.
I42	Extraversion	E3	Assertiveness	+	Try to lead others.
I43	Openness	O3	Emotionality	+	Feel others’ emotions.
I44	Agreeableness	A3	Altruism	+	Am concerned about others.
I45	Conscientiousness	C3	Dutifulness	+	Tell the truth.
I46	Neuroticism	N4	Self-Consciousness	+	Am afraid to draw attention to myself.
I47	Extraversion	E4	Activity Level	+	Am always on the go.
I48	Openness	O4	Adventurousness	-	Prefer to stick with things that I know.
I49	Agreeableness	A4	Cooperation	-	Yell at people.
I50	Conscientiousness	C4	Achievement-Striving	+	Do more than what’s expected of me.
I51	Neuroticism	N5	Immoderation	-	Rarely overindulge.
I52	Extraversion	E5	Excitement-Seeking	+	Seek adventure.
I53	Openness	O5	Intellect	-	Avoid philosophical discussions.
I54	Agreeableness	A5	Modesty	-	Think highly of myself.
I55	Conscientiousness	C5	Self-Discipline	+	Carry out my plans.
I56	Neuroticism	N6	Vulnerability	+	Become overwhelmed by events.
I57	Extraversion	E6	Cheerfulness	+	Have a lot of fun.
I58	Openness	O6	Liberalism	+	Believe that there is no absolute right or wrong.
I59	Agreeableness	A6	Sympathy	+	Feel sympathy for those who are worse off than myself.
I60	Conscientiousness	C6	Cautiousness	-	Make rash decisions.
I61	Neuroticism	N1	Anxiety	+	Am afraid of many things.
I62	Extraversion	E1	Friendliness	-	Avoid contacts with others.
I63	Openness	O1	Imagination	+	Love to daydream.
I64	Agreeableness	A1	Trust	+	Trust what people say.
I65	Conscientiousness	C1	Self-Efficacy	+	Handle tasks smoothly.
I66	Neuroticism	N2	Anger	+	Lose my temper.
I67	Extraversion	E2	Gregariousness	-	Prefer to be alone.
I68	Openness	O2	Artistic Interests	-	Do not like poetry.
I69	Agreeableness	A2	Morality	-	Take advantage of others.
I70	Conscientiousness	C2	Orderliness	-	Leave a mess in my room.
I71	Neuroticism	N3	Depression	+	Am often down in the dumps.
I72	Extraversion	E3	Assertiveness	+	Take control of things.
I73	Openness	O3	Emotionality	-	Rarely notice my emotional reactions.
I74	Agreeableness	A3	Altruism	-	Am indifferent to the feelings of others.
I75	Conscientiousness	C3	Dutifulness	-	Break rules.
I76	Neuroticism	N4	Self-Consciousness	+	Only feel comfortable with friends.
I77	Extraversion	E4	Activity Level	+	Do a lot in my spare time.
I78	Openness	O4	Adventurousness	-	Dislike changes.
I79	Agreeableness	A4	Cooperation	-	Insult people.
I80	Conscientiousness	C4	Achievement-Striving	-	Do just enough work to get by.
I81	Neuroticism	N5	Immoderation	-	Easily resist temptations.
I82	Extraversion	E5	Excitement-Seeking	+	Enjoy being reckless.
I83	Openness	O5	Intellect	-	Have difficulty understanding abstract ideas.
I84	Agreeableness	A5	Modesty	-	Have a high opinion of myself.
I85	Conscientiousness	C5	Self-Discipline	-	Waste my time.
I86	Neuroticism	N6	Vulnerability	+	Feel that I’m unable to deal with things.
I87	Extraversion	E6	Cheerfulness	+	Love life.
I88	Openness	O6	Liberalism	-	Tend to vote for conservative political candidates.
I89	Agreeableness	A6	Sympathy	-	Am not interested in other people’s problems.
I90	Conscientiousness	C6	Cautiousness	-	Rush into things.
I91	Neuroticism	N1	Anxiety	+	Get stressed out easily.
I92	Extraversion	E1	Friendliness	-	Keep others at a distance.
I93	Openness	O1	Imagination	+	Like to get lost in thought.
I94	Agreeableness	A1	Trust	-	Distrust people.
I95	Conscientiousness	C1	Self-Efficacy	+	Know how to get things done.
I96	Neuroticism	N2	Anger	-	Am not easily annoyed.
I97	Extraversion	E2	Gregariousness	-	Avoid crowds.
I98	Openness	O2	Artistic Interests	-	Do not enjoy going to art museums.
I99	Agreeableness	A2	Morality	-	Obstruct others’ plans.
I100	Conscientiousness	C2	Orderliness	-	Leave my belongings around.
I101	Neuroticism	N3	Depression	-	Feel comfortable with myself.
I102	Extraversion	E3	Assertiveness	-	Wait for others to lead the way.
I103	Openness	O3	Emotionality	-	Don’t understand people who get emotional.
I104	Agreeableness	A3	Altruism	-	Take no time for others.
I105	Conscientiousness	C3	Dutifulness	-	Break my promises.
I106	Neuroticism	N4	Self-Consciousness	-	Am not bothered by difficult social situations.
I107	Extraversion	E4	Activity Level	-	Like to take it easy.
I108	Openness	O4	Adventurousness	-	Am attached to conventional ways.
I109	Agreeableness	A4	Cooperation	-	Get back at others.
I110	Conscientiousness	C4	Achievement-Striving	-	Put little time and effort into my work.
I111	Neuroticism	N5	Immoderation	-	Am able to control my cravings.
I112	Extraversion	E5	Excitement-Seeking	+	Act wild and crazy.
I113	Openness	O5	Intellect	-	Am not interested in theoretical discussions.
I114	Agreeableness	A5	Modesty	-	Boast about my virtues.
I115	Conscientiousness	C5	Self-Discipline	-	Have difficulty starting tasks.
I116	Neuroticism	N6	Vulnerability	-	Remain calm under pressure.
I117	Extraversion	E6	Cheerfulness	+	Look at the bright side of life.
I118	Openness	O6	Liberalism	-	Believe that we should be tough on crime.
I119	Agreeableness	A6	Sympathy	-	Try not to think about the needy.
I120	Conscientiousness	C6	Cautiousness	-	Act without thinking.

Reliability

facet_alpha <- sapply(facet_codes, function(f)
  psych::alpha(df_ipipneo120[, key$item[key$facet_code == f]], warnings = FALSE)$total$raw_alpha)
domain_alpha <- sapply(names(domains), function(dom)
  psych::alpha(df_ipipneo120[, key$item[substr(key$facet_code, 1, 1) == dom]], warnings = FALSE)$total$raw_alpha)
knitr::kable(data.frame(domain = unname(domains), alpha = domain_alpha,
                        facet_min = tapply(facet_alpha, substr(facet_codes, 1, 1), min)[names(domains)],
                        facet_max = tapply(facet_alpha, substr(facet_codes, 1, 1), max)[names(domains)],
                        lowest = sapply(names(domains), function(dom) {
                          a <- facet_alpha[substr(facet_codes, 1, 1) == dom]; facet_label[names(which.min(a))] })),
             digits = 2, row.names = FALSE,
             col.names = c("Domain (24 items)", "Alpha", "Lowest facet alpha", "Highest facet alpha", "Lowest facet"))

Domain (24 items)	Alpha	Lowest facet alpha	Highest facet alpha	Lowest facet
Neuroticism	0.90	0.70	0.87	N5 Immoderation
Extraversion	0.89	0.69	0.85	E4 Activity Level
Openness	0.82	0.61	0.75	O6 Liberalism
Agreeableness	0.86	0.70	0.85	A4 Cooperation
Conscientiousness	0.91	0.68	0.89	C3 Dutifulness

With four items each, the facet scales are short, and their alphas (0.61-0.89) are lower than those of the 24-item domain scales. This is why the invariance tests of the domains use the six facet scores as indicators rather than the 24 single items.

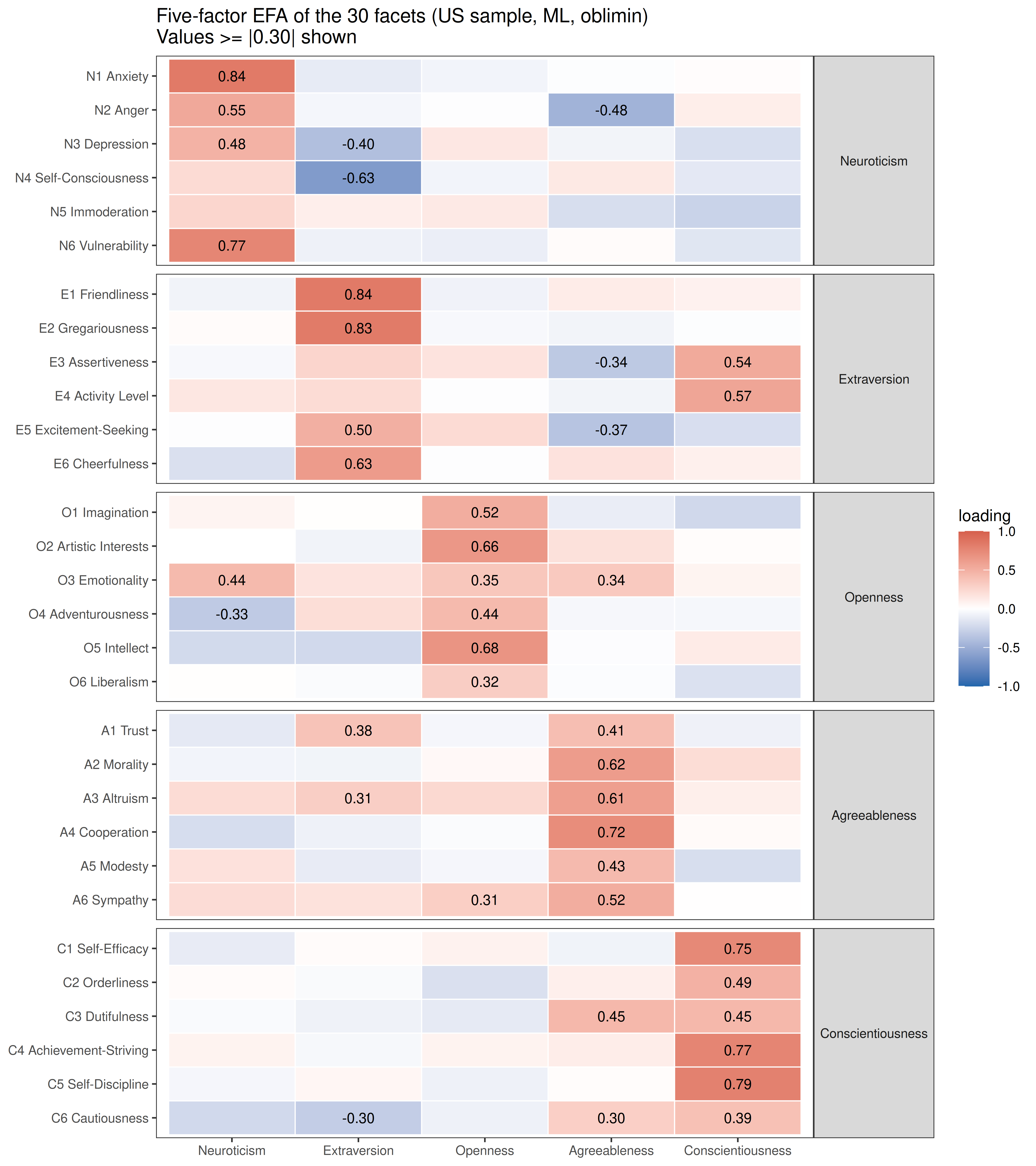

The Five-Factor Structure

Before testing whether the structure is the same across groups, check that it is there: an exploratory factor analysis of the 30 facets in the US sample.

efa <- fa(us[, facet_codes], nfactors = 5, rotate = "oblimin", fm = "ml")
L <- unclass(efa$loadings)
colnames(L) <- sapply(seq_len(ncol(L)), function(j)
  names(which.max(tapply(L[, j], substr(facet_codes, 1, 1), mean))))
L <- L[, names(domains)]
found <- colnames(L)[apply(abs(L), 1, which.max)]
cat(sprintf("Facets whose largest loading is on their own domain: %d of %d\n",
            sum(found == substr(facet_codes, 1, 1)), length(facet_codes)))

Facets whose largest loading is on their own domain: 24 of 30

misplaced <- found != substr(facet_codes, 1, 1)
print(data.frame(facet = facet_label[misplaced], largest_loading_on = domains[found[misplaced]], row.names = NULL))

                  facet largest_loading_on
1 N4 Self-Consciousness       Extraversion
2       N5 Immoderation  Conscientiousness
3      E3 Assertiveness  Conscientiousness
4     E4 Activity Level  Conscientiousness
5       O3 Emotionality        Neuroticism
6        C3 Dutifulness      Agreeableness

long <- melt(L, varnames = c("facet", "factor"), value.name = "loading")
long$label  <- factor(facet_label[as.character(long$facet)], levels = rev(facet_label))
long$domain <- factor(domains[substr(as.character(long$facet), 1, 1)], levels = domains)
long$factor <- factor(domains[as.character(long$factor)], levels = domains)
ggplot(long, aes(x = factor, y = label, fill = loading)) +
  geom_tile(color = "white", linewidth = 0.3) +
  geom_text(aes(label = ifelse(abs(loading) >= 0.30, sprintf("%.2f", loading), "")), size = 2.8) +
  scale_fill_gradient2(low = "#2166ac", mid = "white", high = "#d6604d",
                       midpoint = 0, limits = c(-1, 1), name = "loading") +
  facet_grid(domain ~ ., scales = "free_y", space = "free_y") +
  theme_bw(base_size = 9) +
  theme(strip.text.y = element_text(angle = 0), axis.title = element_blank(), panel.grid = element_blank()) +
  ggtitle("Five-factor EFA of the 30 facets (US sample, ML, oblimin)\nValues >= |0.30| shown")

The facets that load more on another domain than on their own each make sense from their content: activity level and assertiveness go with the energetic, goal-directed side of Conscientiousness, self-consciousness with low Extraversion, immoderation (giving in to cravings) with low Conscientiousness, emotionality (openness to feelings) with Neuroticism, and dutifulness shares Conscientiousness with Agreeableness. A one-factor model per domain therefore cannot fit perfectly, which the next step deals with.

Step 1: A Baseline Model for Each Domain

Invariance is tested on a model that fits in each group, so the first step is a model that fits in the whole sample. Each domain is modelled as one factor measured by its six facet scores. A single factor rarely fits a Big Five domain perfectly, because some facets share variance beyond the domain (Depression and Self-Consciousness, for example, are closer to each other than to Anger). Residual covariances are added from the modification indices in the US sample, the largest first and at most three per domain, and kept fixed in form for all the comparisons.

baselines <- lapply(setNames(names(domains), names(domains)), baseline_model, data = us)
pretty_cov <- function(x) {
  p <- strsplit(x, " ~~ ")[[1]]
  paste(facet_names[p[1]], "with", facet_names[p[2]])
}
knitr::kable(data.frame(
  domain = unname(domains),
  cfi0   = sapply(baselines, function(b) b$start[["cfi.robust"]]),
  rmsea0 = sapply(baselines, function(b) b$start[["rmsea.robust"]]),
  added  = sapply(baselines, function(b) paste(sapply(b$added, pretty_cov), collapse = "; ")),
  cfi    = sapply(baselines, function(b) b$final[["cfi.robust"]]),
  rmsea  = sapply(baselines, function(b) b$final[["rmsea.robust"]]),
  srmr   = sapply(baselines, function(b) b$final[["srmr"]])),
  digits = 3, row.names = FALSE,
  col.names = c("Domain", "CFI (one factor)", "RMSEA (one factor)", "Residual covariances added",
                "CFI", "RMSEA", "SRMR"))

Domain	CFI (one factor)	RMSEA (one factor)	Residual covariances added	CFI	RMSEA	SRMR
Neuroticism	0.944	0.113	Depression with Self-Consciousness; Depression with Immoderation	0.980	0.077	0.033
Extraversion	0.888	0.153	Gregariousness with Excitement-Seeking; Assertiveness with Activity Level	0.978	0.076	0.027
Openness	0.925	0.080	Artistic Interests with Emotionality	0.955	0.066	0.034
Agreeableness	0.805	0.174	Altruism with Sympathy; Trust with Morality; Trust with Modesty	0.989	0.050	0.019
Conscientiousness	0.936	0.122	Dutifulness with Cautiousness; Orderliness with Self-Discipline	0.982	0.072	0.031

The added covariances are substantively sensible pairs of neighbouring facets, and with them every domain model fits well.

Step 2: Men and Women

inv_sex <- run_domains(us, "sex")
invariance_table(inv_sex)

Domain	Model	CFI	RMSEA	SRMR	ΔCFI	ΔRMSEA
Neuroticism	configural	0.978	0.079	0.030	NA	NA
Neuroticism	metric	0.976	0.071	0.033	-0.002	-0.008
Neuroticism	scalar	0.961	0.080	0.044	-0.015	0.009
Neuroticism	partial	0.972	0.072	0.037	-0.004	0.001
Extraversion	configural	0.980	0.074	0.023	NA	NA
Extraversion	metric	0.980	0.064	0.024	0.000	-0.010
Extraversion	scalar	0.951	0.088	0.044	-0.029	0.024
Extraversion	partial	0.975	0.066	0.030	-0.005	0.002
Openness	configural	0.950	0.071	0.032	NA	NA
Openness	metric	0.944	0.065	0.036	-0.006	-0.006
Openness	scalar	0.766	0.120	0.077	-0.178	0.055
Openness	partial	0.942	0.063	0.037	-0.002	-0.002
Agreeableness	configural	0.987	0.053	0.018	NA	NA
Agreeableness	metric	0.986	0.046	0.021	-0.001	-0.007
Agreeableness	scalar	0.928	0.091	0.061	-0.058	0.045
Agreeableness	partial	0.986	0.045	0.021	0.000	-0.001
Conscientiousness	configural	0.982	0.075	0.029	NA	NA
Conscientiousness	metric	0.979	0.068	0.034	-0.002	-0.007
Conscientiousness	scalar	0.962	0.082	0.041	-0.017	0.014
Conscientiousness	partial	0.971	0.073	0.038	-0.008	0.005

freed_table(inv_sex)

Domain	Metric invariance	Facet intercepts freed (in order)	Partial scalar invariance reached
Neuroticism	yes	N3 Depression, N4 Self-Consciousness	yes
Extraversion	yes	E4 Activity Level, E5 Excitement-Seeking	yes
Openness	yes	O3 Emotionality, O2 Artistic Interests, O6 Liberalism	yes
Agreeableness	yes	A1 Trust, A6 Sympathy, A5 Modesty, A3 Altruism	yes
Conscientiousness	yes	C1 Self-Efficacy	yes

# Cohen's d of women minus men, used for the domains and facets below
cohen_d <- function(x, g) {
  m <- tapply(x, g, mean); v <- tapply(x, g, var); n <- tapply(x, g, length)
  unname((m["Female"] - m["Male"]) / sqrt(sum((n - 1) * v) / (sum(n) - 2)))
}
facet_d <- data.frame(facet = facet_codes, d = sapply(facet_codes, function(f) cohen_d(us[[f]], us$sex)))

Metric invariance holds in 5 of the 5 domains: the facets measure the domains with the same loadings for men and women. Full scalar invariance fails in every domain; it holds once some facet intercepts are freed. A freed intercept means that men and women with the same level of the domain score differently on that facet. In Agreeableness, for example, women score much higher than men on Sympathy (d = 0.57), Altruism (0.50) and Modesty (0.45), but not on Trust (0.01), so the facets cannot all share one domain-level difference (the facet chart below).

Latent and observed sex differences

The latent mean difference uses only the invariant facets; the observed difference is the plain difference in the 24-item domain score. Positive values mean higher scores for women.

domain_score <- sapply(names(domains), function(dom) rowMeans(us[, key$item[substr(key$facet_code, 1, 1) == dom]]))
sex_diff <- data.frame(
  domain   = factor(unname(domains), levels = rev(domains)),
  latent   = sapply(names(domains), function(dom) latent_means(inv_sex[[dom]], dom)$mean[2]),
  observed = apply(domain_score, 2, cohen_d, g = us$sex))
knitr::kable(sex_diff, digits = 2, row.names = FALSE,
             col.names = c("Domain", "Latent d (partial scalar model)", "Observed d (domain score)"))

Domain	Latent d (partial scalar model)	Observed d (domain score)
Neuroticism	0.65	0.43
Extraversion	0.06	0.03
Openness	-0.24	0.20
Agreeableness	0.47	0.56
Conscientiousness	0.22	0.13

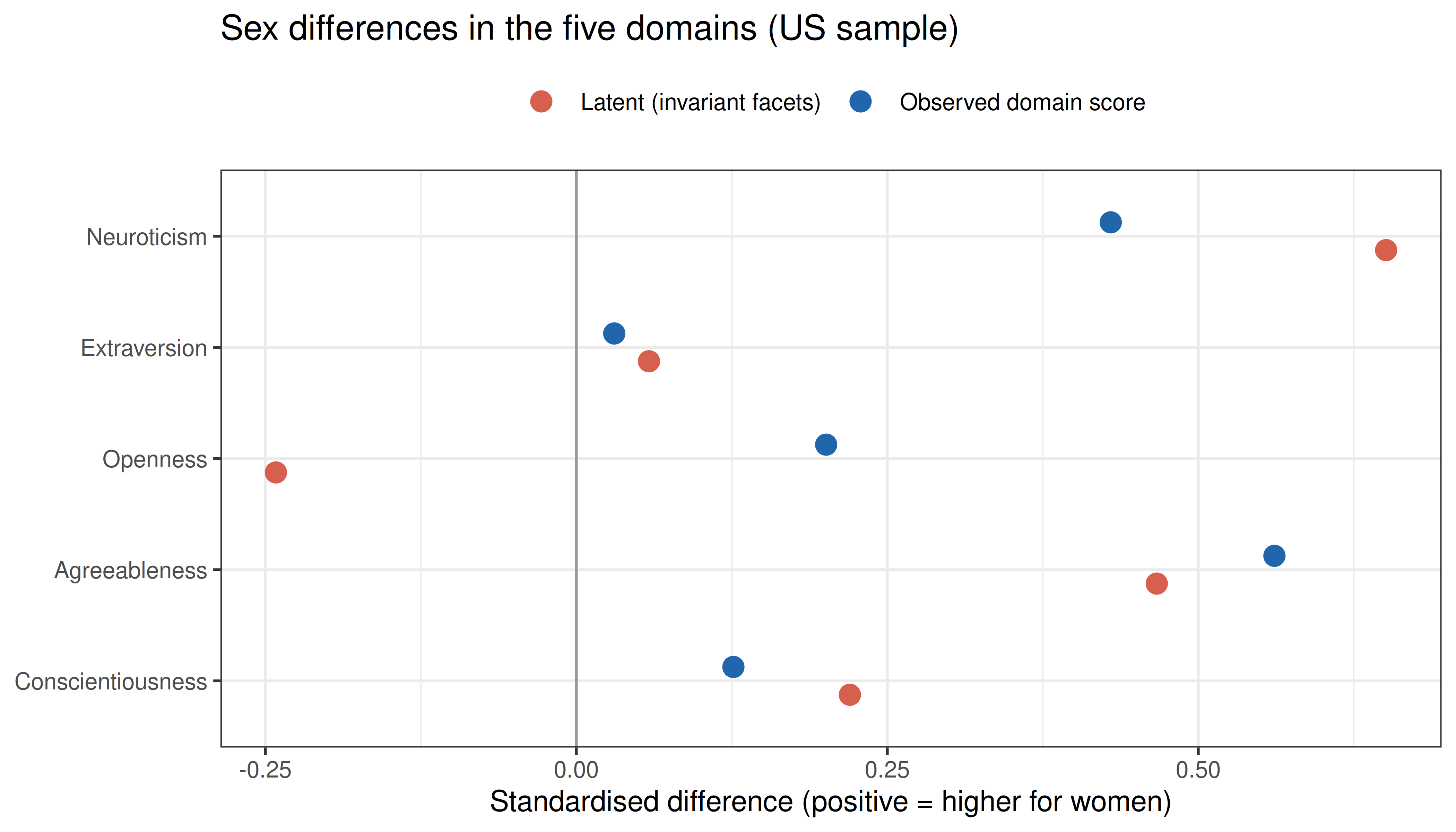

ggplot(melt(sex_diff, id.vars = "domain"), aes(x = value, y = domain, colour = variable)) +
  geom_vline(xintercept = 0, colour = "grey60") +
  geom_point(size = 3, position = position_dodge(width = 0.5)) +
  scale_colour_manual(values = c(latent = "#d6604d", observed = "#2166ac"),
                      labels = c(latent = "Latent (invariant facets)", observed = "Observed domain score"), name = NULL) +
  labs(x = "Standardised difference (positive = higher for women)", y = NULL) +
  theme_bw(base_size = 10) + theme(legend.position = "top") +
  ggtitle("Sex differences in the five domains (US sample)")

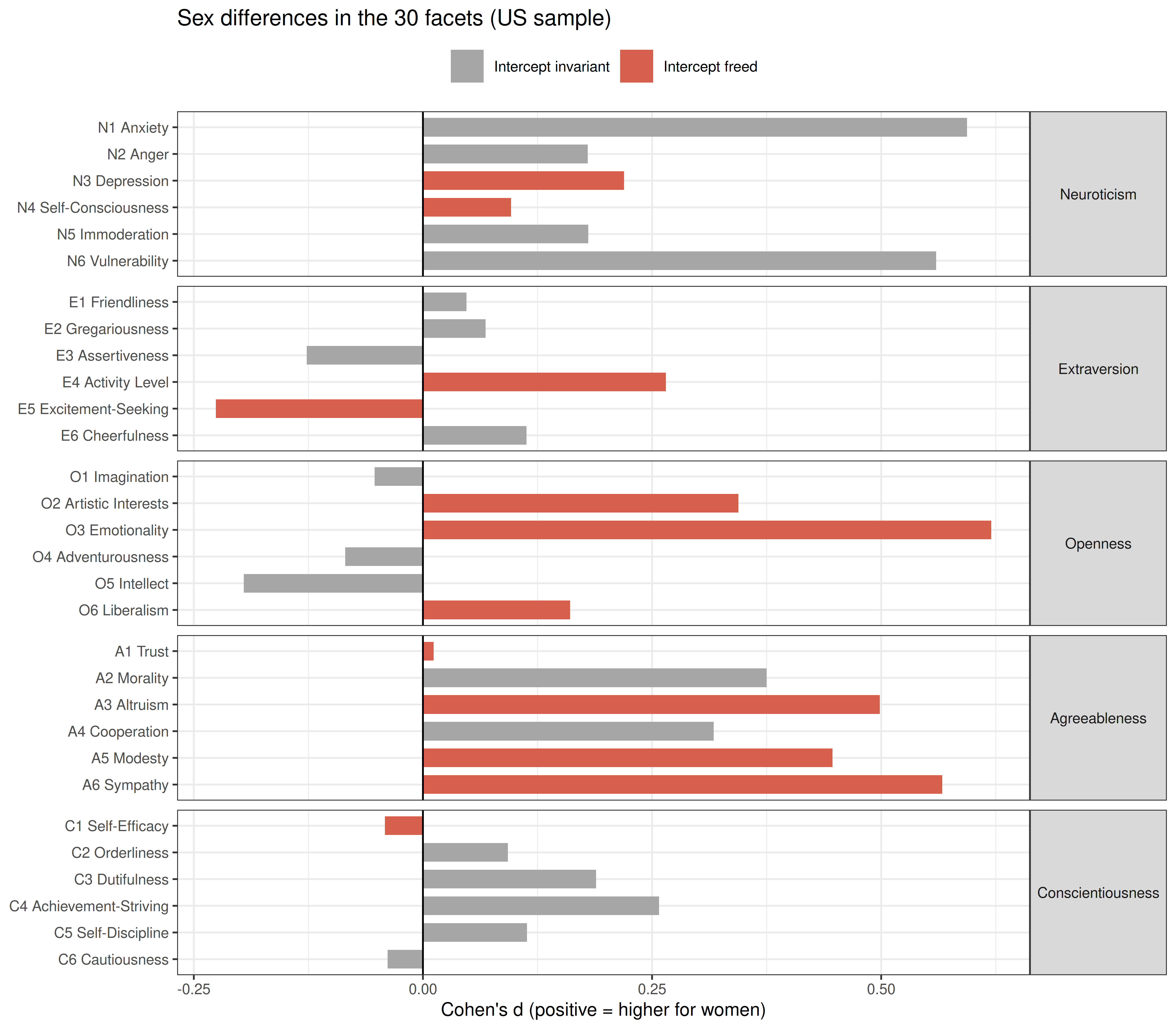

facet_d$domain <- factor(domains[substr(facet_d$facet, 1, 1)], levels = domains)
facet_d$freed  <- facet_d$facet %in% unlist(lapply(inv_sex, `[[`, "freed"))
facet_d$label  <- factor(facet_label[facet_d$facet], levels = rev(facet_label))
ggplot(facet_d, aes(x = d, y = label, fill = freed)) +
  geom_col(width = 0.7) +
  geom_vline(xintercept = 0) +
  scale_fill_manual(values = c(`FALSE` = "grey65", `TRUE` = "#d6604d"),
                    labels = c(`FALSE` = "Intercept invariant", `TRUE` = "Intercept freed"), name = NULL) +
  facet_grid(domain ~ ., scales = "free_y", space = "free_y") +
  labs(x = "Cohen's d (positive = higher for women)", y = NULL) +
  theme_bw(base_size = 9) + theme(legend.position = "top", strip.text.y = element_text(angle = 0)) +
  ggtitle("Sex differences in the 30 facets (US sample)")

Costa, Terracciano and McCrae (2001), across 26 cultures, found that women score higher than men on Neuroticism and Agreeableness, and that some facets show differences in the opposite direction to their domain: women higher on openness to feelings, men higher on assertiveness and openness to ideas. The same appears here: women score higher on Emotionality (openness to feelings, d = 0.62), men on Assertiveness (-0.13) and Intellect (openness to ideas, -0.20). The comparison of latent and observed differences is where invariance testing changes the conclusion. For Neuroticism the latent difference (0.65) is larger than the observed one (0.43). For Openness the two even differ in sign: in the observed domain score women score higher (+0.20), because they score much higher on Emotionality, Artistic Interests, Liberalism, the facets whose intercepts had to be freed; the latent difference, which rests on the invariant facets (Imagination, Adventurousness, Intellect), slightly favours men (-0.24). Which sex is “more open” depends on which facets are treated as measuring Openness in the same way for both, which is exactly the question measurement invariance answers.

Step 3: Twelve Countries

inv_country <- run_domains(dat, "country")
invariance_table(inv_country)

Domain	Model	CFI	RMSEA	SRMR	ΔCFI	ΔRMSEA
Neuroticism	configural	0.978	0.080	0.031	NA	NA
Neuroticism	metric	0.975	0.066	0.037	-0.003	-0.014
Neuroticism	scalar	0.944	0.085	0.051	-0.032	0.019
Neuroticism	partial	0.967	0.069	0.041	-0.008	0.003
Extraversion	configural	0.973	0.084	0.028	NA	NA
Extraversion	metric	0.970	0.069	0.034	-0.003	-0.015
Extraversion	scalar	0.936	0.085	0.048	-0.034	0.016
Extraversion	partial	0.963	0.071	0.038	-0.007	0.002
Openness	configural	0.948	0.069	0.032	NA	NA
Openness	metric	0.943	0.058	0.036	-0.005	-0.011
Openness	scalar	0.798	0.093	0.066	-0.145	0.035
Openness	partial	0.940	0.057	0.037	-0.004	0.000
Agreeableness	configural	0.987	0.053	0.019	NA	NA
Agreeableness	metric	0.982	0.048	0.029	-0.006	-0.005
Agreeableness	scalar	0.925	0.082	0.050	-0.057	0.033
Agreeableness	partial	0.979	0.049	0.031	-0.002	0.001
Conscientiousness	configural	0.976	0.084	0.033	NA	NA
Conscientiousness	metric	0.973	0.069	0.038	-0.003	-0.015
Conscientiousness	scalar	0.951	0.078	0.048	-0.022	0.009
Conscientiousness	partial	0.969	0.068	0.040	-0.004	0.000

freed_table(inv_country)

Domain	Metric invariance	Facet intercepts freed (in order)	Partial scalar invariance reached
Neuroticism	yes	N3 Depression, N5 Immoderation	yes
Extraversion	yes	E2 Gregariousness, E6 Cheerfulness, E5 Excitement-Seeking	yes
Openness	yes	O2 Artistic Interests, O6 Liberalism, O1 Imagination, O4 Adventurousness	yes
Agreeableness	yes	A4 Cooperation, A6 Sympathy, A5 Modesty, A1 Trust	yes
Conscientiousness	yes	C6 Cautiousness, C2 Orderliness, C5 Self-Discipline	yes

Across the twelve countries the picture is similar at the domain level: metric invariance holds in 5 of the 5 domains, and comparing latent means requires freeing several facet intercepts per domain. The facet-level map below shows how much stricter the comparison of countries is when the items themselves are examined.

Step 4: Age Groups

inv_age <- run_domains(us, "agegroup")
invariance_table(inv_age)

Domain	Model	CFI	RMSEA	SRMR	ΔCFI	ΔRMSEA
Neuroticism	configural	0.979	0.079	0.030	NA	NA
Neuroticism	metric	0.977	0.065	0.035	-0.002	-0.014
Neuroticism	scalar	0.959	0.075	0.046	-0.018	0.010
Neuroticism	partial	0.968	0.070	0.042	-0.009	0.005
Extraversion	configural	0.975	0.081	0.027	NA	NA
Extraversion	metric	0.975	0.065	0.029	-0.001	-0.016
Extraversion	scalar	0.912	0.103	0.069	-0.063	0.038
Extraversion	partial	0.967	0.070	0.036	-0.008	0.004
Openness	configural	0.957	0.065	0.030	NA	NA
Openness	metric	0.943	0.061	0.039	-0.014	-0.004
Openness	scalar	0.842	0.087	0.061	-0.101	0.027
Openness	partial	0.939	0.059	0.041	-0.005	-0.001
Agreeableness	configural	0.992	0.041	0.014	NA	NA
Agreeableness	metric	0.991	0.035	0.020	-0.002	-0.006
Agreeableness	scalar	0.926	0.084	0.051	-0.065	0.049
Agreeableness	partial	0.984	0.044	0.024	-0.007	0.009
Conscientiousness	configural	0.981	0.073	0.029	NA	NA
Conscientiousness	metric	0.975	0.066	0.038	-0.006	-0.007
Conscientiousness	scalar	0.943	0.086	0.050	-0.033	0.020
Conscientiousness	partial	0.967	0.071	0.042	-0.008	0.005

freed_table(inv_age)

Domain	Metric invariance	Facet intercepts freed (in order)	Partial scalar invariance reached
Neuroticism	yes	N3 Depression, N6 Vulnerability	yes
Extraversion	yes	E5 Excitement-Seeking, E2 Gregariousness, E3 Assertiveness	yes
Openness	no	O1 Imagination, O6 Liberalism, O2 Artistic Interests	yes
Agreeableness	yes	A1 Trust, A3 Altruism, A5 Modesty, A6 Sympathy	yes
Conscientiousness	yes	C4 Achievement-Striving, C6 Cautiousness, C3 Dutifulness	yes

Personality across age

Across age groups, metric invariance fails for Openness: its facets do not relate to the domain in the same way at every age, so its latent age trend below should be read with caution. For the other domains, partial scalar invariance allows latent means to be compared across age groups. The first plot shows them relative to the 14-17 group; the second shows the observed domain scores by single year of age for men and women, smoothed.

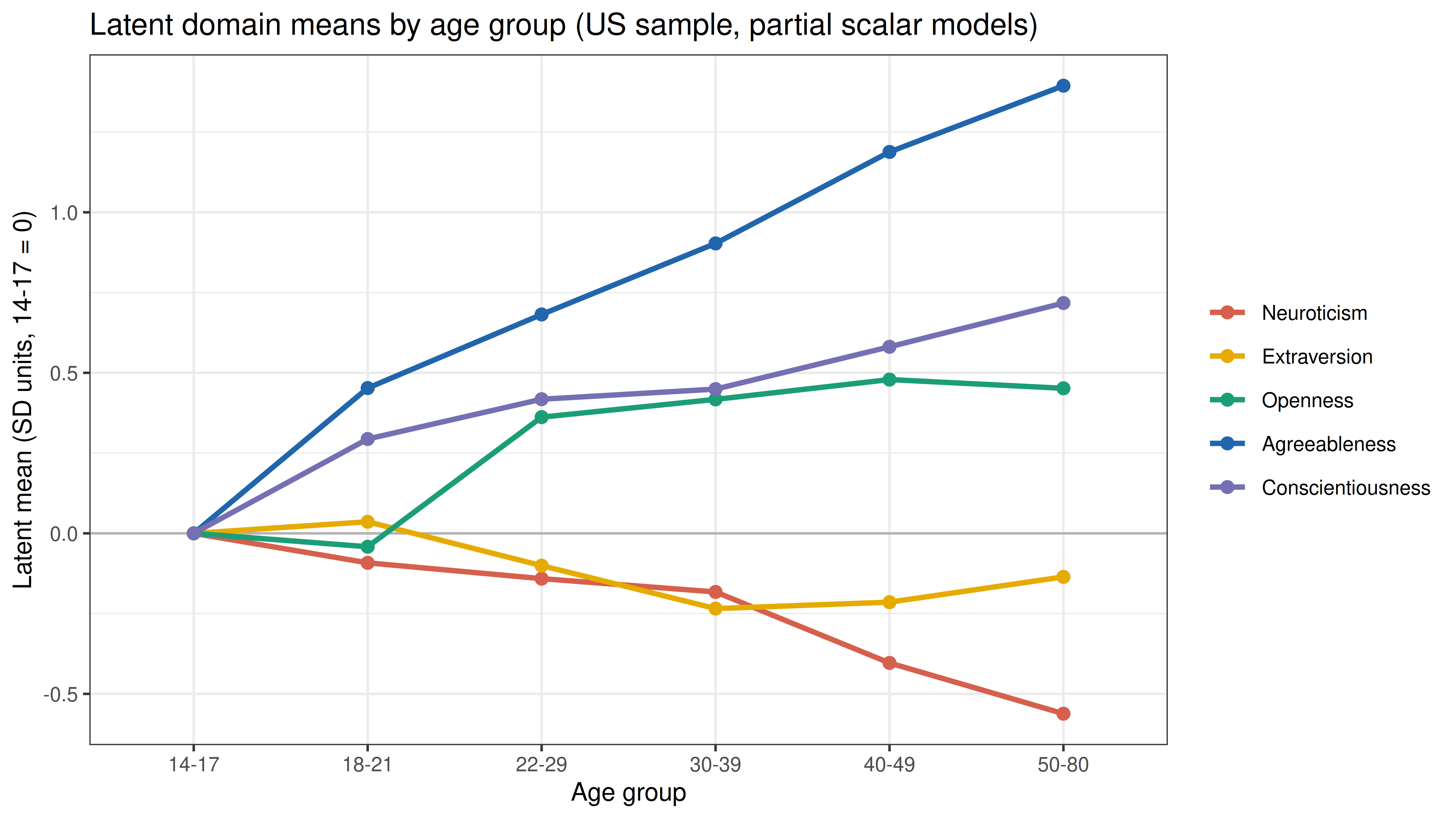

age_lm <- do.call(rbind, lapply(names(domains), function(dom)
  cbind(domain = domains[[dom]], latent_means(inv_age[[dom]], dom))))
age_lm$domain <- factor(age_lm$domain, levels = domains)
age_lm$group  <- factor(age_lm$group, levels = levels(dat$agegroup))
ggplot(age_lm, aes(x = group, y = mean, colour = domain, group = domain)) +
  geom_hline(yintercept = 0, colour = "grey70") +
  geom_line(linewidth = 1) + geom_point(size = 2) +
  scale_colour_manual(values = c("#d6604d", "#e6ab02", "#1b9e77", "#2166ac", "#7570b3"), name = NULL) +
  labs(x = "Age group", y = "Latent mean (SD units, 14-17 = 0)") +
  theme_bw(base_size = 10) +
  ggtitle("Latent domain means by age group (US sample, partial scalar models)")

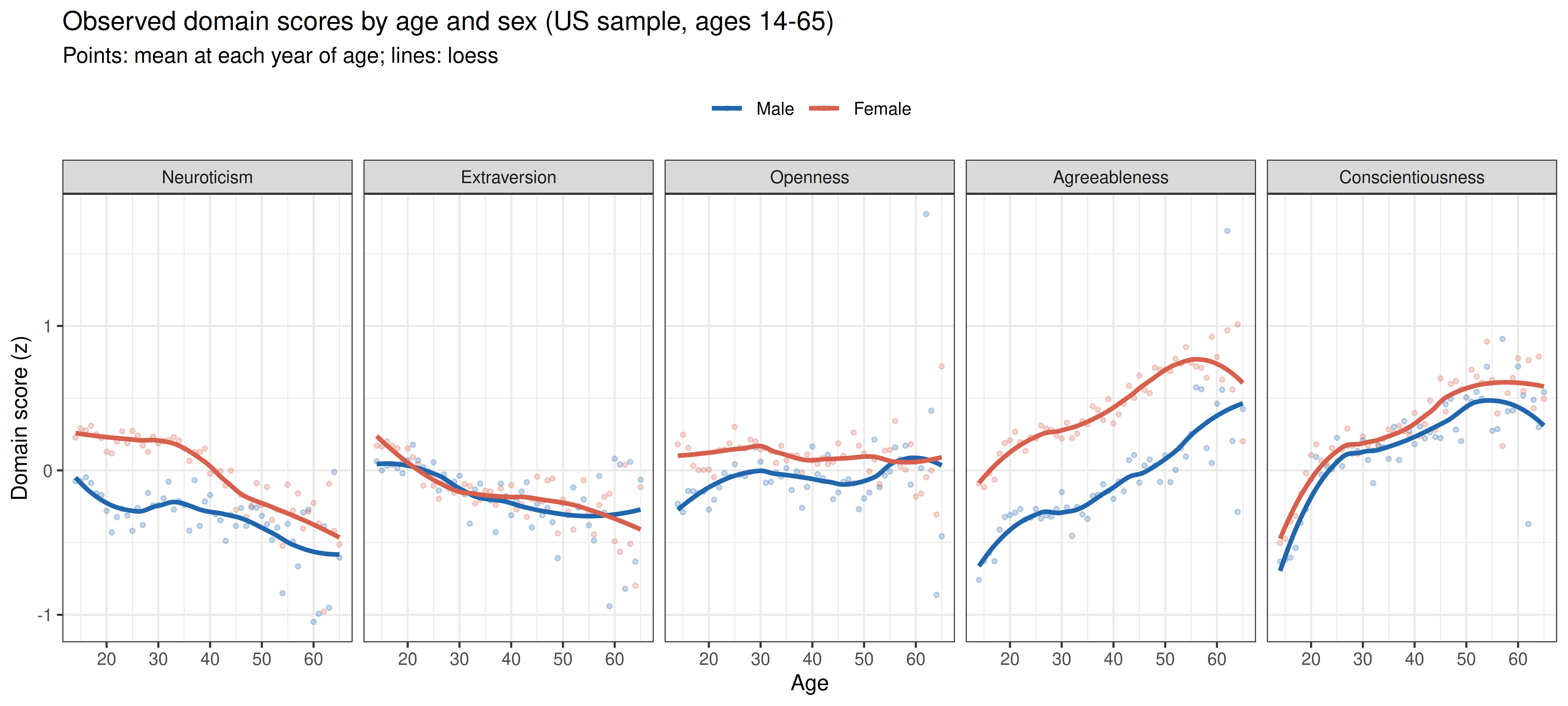

age_obs <- data.frame(age = us$age, sex = us$sex, scale(domain_score))
names(age_obs)[-(1:2)] <- unname(domains)
age_long <- melt(age_obs, id.vars = c("age", "sex"), variable.name = "domain", value.name = "z")
age_mean <- aggregate(z ~ age + sex + domain, data = age_long[age_long$age <= 65, ], FUN = mean)
ggplot(age_mean, aes(x = age, y = z, colour = sex)) +
  geom_point(alpha = 0.25, size = 0.8) +
  geom_smooth(method = "loess", span = 0.6, se = FALSE, linewidth = 1) +
  facet_wrap(~ domain, nrow = 1) +
  scale_colour_manual(values = c(Male = "#2166ac", Female = "#d6604d"), name = NULL) +
  labs(x = "Age", y = "Domain score (z)") +
  theme_bw(base_size = 10) + theme(legend.position = "top") +
  ggtitle("Observed domain scores by age and sex (US sample, ages 14-65)",
          subtitle = "Points: mean at each year of age; lines: loess")

The age trends agree with the maturity principle (Roberts, Walton & Viechtbauer, 2006) and with Soto, John, Gosling and Potter’s (2011) cross-sectional study of more than a million internet respondents aged 10 to 65: Agreeableness (latent difference between the oldest and youngest groups +1.39 SD) and Conscientiousness (+0.72) are higher at older ages, and Neuroticism is lower (-0.56). Women score higher than men on Neuroticism and Agreeableness at every age. Openness shows why invariance matters: its latent mean rises into the twenties while the observed score stays almost flat, because the latent mean rests only on the facets whose intercepts were kept equal (Emotionality, Adventurousness, Intellect), while the freed facets (Imagination, Liberalism, Artistic Interests) follow different age trends. These are cross-sectional differences between people of different ages, not changes within people.

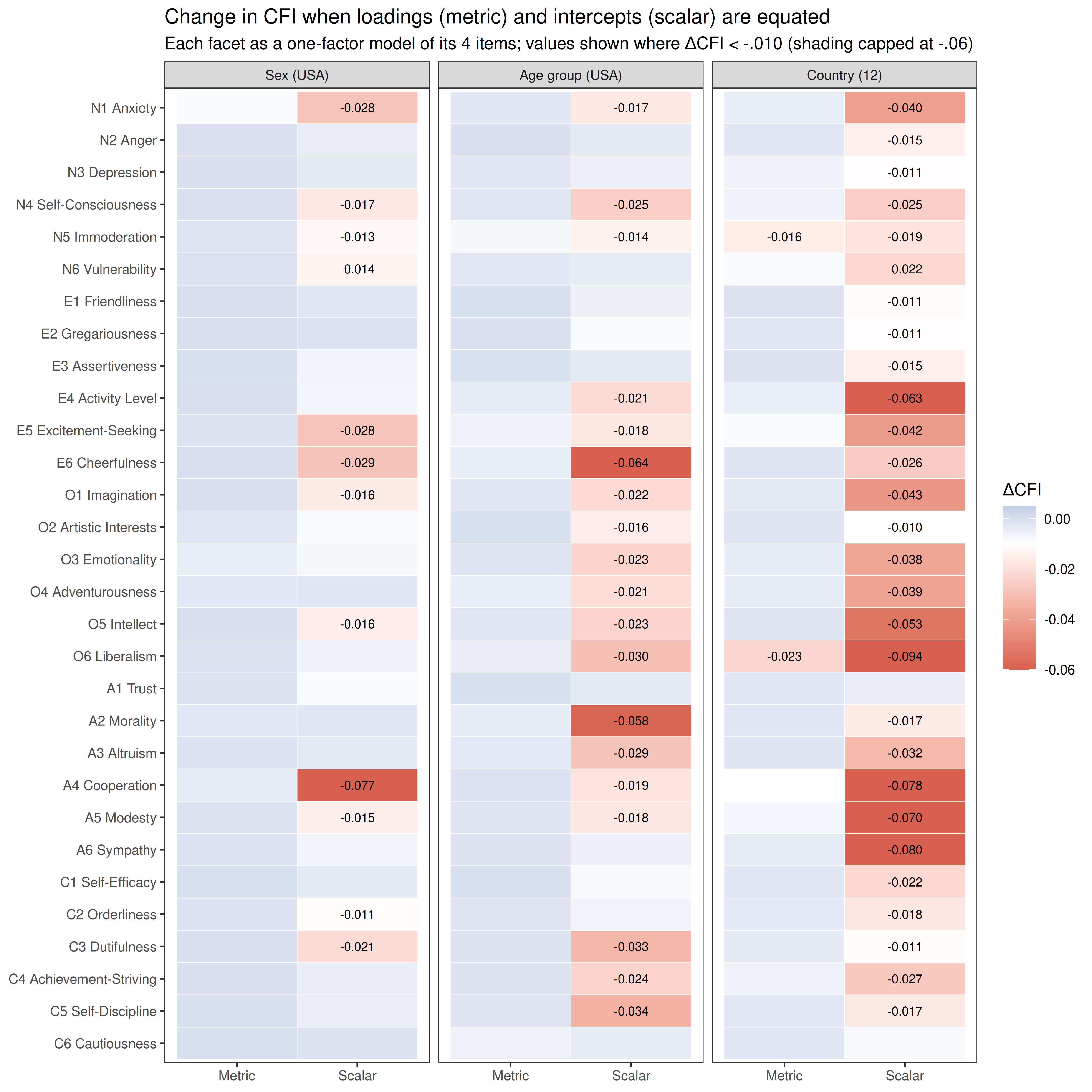

Facet-Level Invariance Map

The domain models above use facet scores. The same tests can be run inside each facet, with its four items as indicators, which is a much stricter look at the items themselves.

facet_step <- function(f, data, group) {
  model <- paste0("F =~ ", paste(key$item[key$facet_code == f], collapse = " + "))
  groups <- levels(droplevels(data[[group]]))
  cfi <- sapply(list(character(0), "loadings", c("loadings", "intercepts")), function(eq)
    fitMeasures(cfa(model, data = data, group = group, group.label = groups, group.equal = eq,
                    estimator = "MLR"), "cfi.robust"))
  data.frame(facet = f, configural = cfi[1], metric = cfi[2] - cfi[1], scalar = cfi[3] - cfi[2])
}
facet_map <- rbind(
  cbind(grouping = "Sex (USA)",      do.call(rbind, lapply(facet_codes, facet_step, data = us,  group = "sex"))),
  cbind(grouping = "Country (12)",   do.call(rbind, lapply(facet_codes, facet_step, data = dat, group = "country"))),
  cbind(grouping = "Age group (USA)", do.call(rbind, lapply(facet_codes, facet_step, data = us,  group = "agegroup"))))

knitr::kable(aggregate(cbind(metric_fails = metric < -0.010, scalar_fails = scalar < -0.010,
                             poor_configural = configural < 0.95) ~ grouping, data = facet_map, FUN = sum),
             row.names = FALSE,
             col.names = c("Grouping", "Metric fails (ΔCFI < -.010)", "Scalar fails (ΔCFI < -.010)",
                           "Configural CFI < .95"))

Grouping	Metric fails (ΔCFI < -.010)	Scalar fails (ΔCFI < -.010)	Configural CFI < .95
Age group (USA)	0	19	2
Country (12)	2	28	3
Sex (USA)	0	12	2

map_long <- melt(facet_map, id.vars = c("grouping", "facet", "configural"),
                 variable.name = "step", value.name = "d_cfi")
map_long$label    <- factor(facet_label[map_long$facet], levels = rev(facet_label))
map_long$grouping <- factor(map_long$grouping, levels = c("Sex (USA)", "Age group (USA)", "Country (12)"))
map_long$step     <- factor(map_long$step, levels = c("metric", "scalar"), labels = c("Metric", "Scalar"))
ggplot(map_long, aes(x = step, y = label, fill = pmax(d_cfi, -0.06))) +
  geom_tile(colour = "white") +
  geom_text(aes(label = ifelse(d_cfi < -0.010, sprintf("%.3f", d_cfi), "")), size = 2.3) +
  scale_fill_gradient2(low = "#d6604d", mid = "white", high = "#2166ac", midpoint = -0.010,
                       limits = c(-0.06, 0.005), name = "ΔCFI") +
  facet_wrap(~ grouping, nrow = 1) +
  labs(x = NULL, y = NULL) +
  theme_bw(base_size = 9) + theme(panel.grid = element_blank()) +
  ggtitle("Change in CFI when loadings (metric) and intercepts (scalar) are equated",
          subtitle = "Each facet as a one-factor model of its 4 items; values shown where ΔCFI < -.010 (shading capped at -.06)")

worst <- facet_map[order(facet_map$scalar), ][1:6, ]
worst$facet <- facet_label[worst$facet]
knitr::kable(worst, digits = 3, row.names = FALSE,
             col.names = c("Grouping", "Facet", "Configural CFI", "ΔCFI metric", "ΔCFI scalar"))

Grouping	Facet	Configural CFI	ΔCFI metric	ΔCFI scalar
Country (12)	O6 Liberalism	0.985	-0.023	-0.094
Country (12)	A6 Sympathy	0.979	-0.004	-0.080
Country (12)	A4 Cooperation	0.989	-0.010	-0.078
Sex (USA)	A4 Cooperation	0.989	-0.004	-0.077
Country (12)	A5 Modesty	0.979	-0.007	-0.070
Age group (USA)	E6 Cheerfulness	0.973	-0.005	-0.064

knitr::kable(key[key$facet_code == "O6", c("item", "key", "text")], row.names = FALSE,
             col.names = c("Item", "Key", "Wording"), caption = "The four Liberalism (O6) items")

The four Liberalism (O6) items

Item	Key	Wording
I28	+	Tend to vote for liberal political candidates.
I58	+	Believe that there is no absolute right or wrong.
I88	-	Tend to vote for conservative political candidates.
I118	-	Believe that we should be tough on crime.

At the item level, loadings are equal across groups almost everywhere, but intercepts are not, and least of all across countries. The worst case is Liberalism, whose items ask about voting for liberal or conservative candidates, moral relativism and being tough on crime: what these mean depends on each country’s politics, so neither the loadings nor the intercepts are the same across countries. N3 Depression, E5 Excitement-Seeking, N5 Immoderation fit poorly even before any equality constraint (configural CFI below .95 in at least one grouping), so their four items are not a clean single factor in the first place.

The practical lesson: the domain scores of the IPIP-NEO-120 can be compared across sex, age and these countries at the latent level, using the invariant facets; raw facet scores, and especially raw item scores, should not be compared across countries without testing first.

Summary

Evidence	Result
Reliability	Domain alpha 0.82-0.91; facet alpha 0.61-0.89
Five-factor structure	24 of 30 facets load highest on their own domain
Baseline models	CFI 0.955-0.989 after at most 3 residual covariances per domain
Invariance: sex	Metric holds in 5 of 5 domains; partial scalar after freeing 12 of 30 facet intercepts
Invariance: countries	Metric holds in 5 of 5 domains; partial scalar after freeing 16 of 30 facet intercepts
Invariance: age groups	Metric holds in 4 of 5 domains (not Openness); partial scalar after freeing 15 of 30 facet intercepts
Sex differences	Women higher on Neuroticism (latent d = 0.65) and Agreeableness (0.47)
Facet-level map	Scalar invariance of the items fails for 12 (sex), 19 (age) and 28 (countries) of 30 facets

References

Byrne, B. M., Shavelson, R. J., & Muthén, B. (1989). Testing for the equivalence of factor covariance and mean structures: The issue of partial measurement invariance. Psychological Bulletin, 105(3), 456-466.

Chen, F. F. (2007). Sensitivity of goodness of fit indexes to lack of measurement invariance. Structural Equation Modeling, 14(3), 464-504.

Costa, P. T., Jr., Terracciano, A., & McCrae, R. R. (2001). Gender differences in personality traits across cultures: Robust and surprising findings. Journal of Personality and Social Psychology, 81(2), 322-331.

Johnson, J. A. (2005). Ascertaining the validity of individual protocols from Web-based personality inventories. Journal of Research in Personality, 39(1), 103-129.

Johnson, J. A. (2014). Measuring thirty facets of the Five Factor Model with a 120-item public domain inventory: Development of the IPIP-NEO-120. Journal of Research in Personality, 51, 78-89.

Putnick, D. L., & Bornstein, M. H. (2016). Measurement invariance conventions and reporting: The state of the art and future directions for psychological research. Developmental Review, 41, 71-90.

Roberts, B. W., Walton, K. E., & Viechtbauer, W. (2006). Patterns of mean-level change in personality traits across the life course: A meta-analysis of longitudinal studies. Psychological Bulletin, 132(1), 1-25.

Soto, C. J., John, O. P., Gosling, S. D., & Potter, J. (2011). Age differences in personality traits from 10 to 65: Big Five domains and facets in a large cross-sectional sample. Journal of Personality and Social Psychology, 100(2), 330-348.

Vandenberg, R. J., & Lance, C. E. (2000). A review and synthesis of the measurement invariance literature: Suggestions, practices, and recommendations for organizational research. Organizational Research Methods, 3(1), 4-70.

Data: Johnson’s IPIP-NEO data repository, osf.io/tbmh5. Items: International Personality Item Pool, ipip.ori.org.
