The functions in cat_eap_common.R and cat_eap_ggrm.R are adapted from the source code of the catR package by David Magis, Gilles Raîche and Juan Ramón Barrada (Magis & Raîche, 2012; Magis & Barrada, 2017). The model parameterisations, the formulas for the response probabilities and their derivatives, the item information, maximum-information item selection and the trapezoidal EAP integration all follow catR’s Pi(), Ii(), nextItem(), eapEst(), eapSem() and integrate.catR(), and much of the code keeps catR’s structure line for line. The purpose of the rewrite is teaching, not replacement: every step is written out in plain base R so that it can be read, and catR remains the reference implementation that every function is checked against below. catR is free software distributed under the GNU General Public License (version 3 or later).
The companion vignette on dichotomous items builds the whole EAP pipeline, item information and next-item selection included, for items scored right/wrong under the 4PL model. This vignette does the same job for polytomous items — a Likert scale scored 0, 1, 2, 3, 4 — under Muraki’s modified graded response model.
The model goes by several names, so it is worth fixing them once. Muraki (1990) introduced it as a modification of Samejima’s (1969) graded response model (GRM). catR calls it "MGRM". mirt calls it the graded rating scale model (itemtype = "grsm"). And cat_eap_ggrm.R calls it the generalized graded response model, which is where the _ggrm suffix of its function names comes from. Despite that name the model is not a generalisation of the GRM but a restriction of it: every item keeps its own discrimination, but the spacing between its thresholds is shared by all the items that use the same rating scale. The vignette keeps the file’s function names and otherwise calls the model the modified GRM, or MGRM.
working_examples/cat_eap_ggrm.R implements the model-specific part of the pipeline in six small functions, and working_examples/cat_eap_common.R supplies the two helpers every model shares. All eight are written in base R with no runtime dependency on catR:
| Function | File | Purpose | catR equivalent it mirrors |
|---|---|---|---|
density_function() |
cat_eap_common.R |
Normal density (the prior) | stats::dnorm() |
integrate_cat() |
cat_eap_common.R |
Numerical integration (trapezoidal rule) | catR::integrate.catR() |
compute_pi_ggrm() |
cat_eap_ggrm.R |
Category response probabilities and their first three derivatives | catR::Pi(model="MGRM") |
compute_ii_ggrm() |
cat_eap_ggrm.R |
Item information and its first two derivatives | catR::Ii(model="MGRM") |
compute_next_item_ggrm() |
cat_eap_ggrm.R |
Maximum Fisher information item selection, with randomesque exposure control | catR::nextItem(model="MGRM", criterion="MFI") |
compute_likelihood_ggrm() |
cat_eap_ggrm.R |
Likelihood of a polytomous response pattern | (internal to catR::eapEst()) |
compute_eap_ggrm() |
cat_eap_ggrm.R |
EAP ability estimate | catR::eapEst(model="MGRM") |
compute_eap_se_ggrm() |
cat_eap_ggrm.R |
EAP standard error | catR::eapSem(model="MGRM") |
The sections below walk through the theory behind each function, validate every one of them against its catR counterpart, work through four properties that follow from the model’s restricted form, run a small adaptive test end to end, and close with the numerical side: the integration settings and the floating-point precision of the category probabilities.
library(ggplot2)
library(catR)
source("R/cat_eap_common.R", local = knitr::knit_global())
source("R/cat_eap_ggrm.R", local = knitr::knit_global())
# the graded response model functions, needed only for the comparison with the GRM
source("R/cat_eap_grm.R", local = knitr::knit_global())A dichotomous model needs one curve per item: the probability of a correct response. A polytomous item scored \(0,1,\ldots,m\) needs \(m+1\) curves — one per category — that sum to 1 at every ability level. The graded response family builds them in two steps. First, for each \(k = 1,\ldots,m\) it models the cumulative probability of responding in category \(k\) or above with a 2PL curve,
\[P^*_{jk}(\theta) = P(X_j \ge k \mid \theta) = \frac{\exp\big[D\alpha_j(\theta - \beta_{jk})\big]}{1 + \exp\big[D\alpha_j(\theta - \beta_{jk})\big]},\]
with the two boundary curves fixed at \(P^*_{j0} = 1\) (every response is in category 0 or above) and \(P^*_{j,m+1} = 0\). Second, the probability of category \(k\) is the difference between two adjacent cumulative curves:
\[P_{jk}(\theta) = P(X_j = k \mid \theta) = P^*_{jk}(\theta) - P^*_{j,k+1}(\theta), \qquad k = 0,\ldots,m,\]
so the lowest category has \(P_{j0} = 1 - P^*_{j1}\) and the highest \(P_{jm} = P^*_{jm}\). This makes the model cumulative: the threshold \(\beta_{jk}\) is the ability at which “category \(k\) or above” becomes more likely than “below \(k\)”. The rating scale and partial credit models are adjacent-category models instead: they compare each category with its neighbour and divide by a normalising total. For every difference to be a positive probability the cumulative curves must never cross or coincide, and since all \(m\) curves of an item share the slope \(\alpha_j\), that means the thresholds must be strictly increasing, \(\beta_{j1} < \beta_{j2} < \cdots < \beta_{jm}\).
cat_eap_ggrm.R expects one row per item:
| Column | Holds |
|---|---|
| 1 | the item discrimination \(\alpha_j\) |
| 2 | the item location \(b_j\) |
| 3 to \(m+2\) | the category parameters \(c_1,\ldots,c_m\) |
A bank for items with \(m+1\) categories therefore has \(m+2\) columns, and the number of categories is ncol(bank) - 1: a five-point Likert scale scored 0 to 4 has \(m = 4\) category parameters and needs a six-column bank. The category columns are identical down every row of a block, and a bank with a single block has the same \(c_k\) in every row. Items answered on a different rating scale form a block of their own with their own \(c_k\) — always the case for items with a different number of categories — and the shorter rows are padded with NA on the right. In such a bank \(m\) is the number of category parameters of the widest item; item \(j\) has \(m_j \le m\) non-NA category parameters and the categories \(0,\ldots,m_j\), and every formula below applies to item \(j\) with \(m\) replaced by \(m_j\).
The columns are read by position, not by name, and each row is read on its own: nothing in the code checks that the rows of a block really share their \(c_k\), and a bank in which every row had its own \(c_k\) would simply be a GRM bank written in another form. compute_pi_ggrm(), which every other model function calls directly or through another one, begins with bank <- rbind(bank), so a single item may also be passed as a plain vector c(alpha, b, c1, ..., cm).
Item information needs the first derivative of each category probability, and its own derivatives need the second and third. All of them come from the cumulative curves, using the logistic identity \(\frac{d}{d\theta}P^* = D\alpha_j P^*(1-P^*)\) repeatedly. compute_pi_ggrm() evaluates them recursively, as catR::Pi() does:
\[\frac{dP^*_{jk}}{d\theta} = D\alpha_j P^*_{jk}\big(1-P^*_{jk}\big), \qquad \frac{d^2P^*_{jk}}{d\theta^2} = D\alpha_j \frac{dP^*_{jk}}{d\theta}\big(1-2P^*_{jk}\big),\]
\[\frac{d^3P^*_{jk}}{d\theta^3} = D\alpha_j\left[\frac{d^2P^*_{jk}}{d\theta^2} - 2\left(\frac{dP^*_{jk}}{d\theta}\right)^2 - 2P^*_{jk}\,\frac{d^2P^*_{jk}}{d\theta^2}\right].\]
Substituting each line into the next gives the closed forms, with \(W_{jk} = P^*_{jk}\big(1-P^*_{jk}\big)\):
\[\frac{dP^*_{jk}}{d\theta} = D\alpha_j W_{jk}, \qquad \frac{d^2P^*_{jk}}{d\theta^2} = D^2\alpha_j^2 W_{jk}\big(1-2P^*_{jk}\big), \qquad \frac{d^3P^*_{jk}}{d\theta^3} = D^3\alpha_j^3 W_{jk}\big(1-6P^*_{jk}+6P^{*2}_{jk}\big).\]
The boundary curves \(P^*_{j0}=1\) and \(P^*_{j,m+1}=0\) are constants with zero derivatives of every order (\(W_{j0} = W_{j,m+1} = 0\)), and differentiation is linear, so every derivative of a category probability is the same difference of two adjacent cumulative derivatives. Writing primes for derivatives with respect to \(\theta\), for \(k = 0,\ldots,m\):
\[ \begin{aligned} P'_{jk} &= D\alpha_j\big[W_{jk} - W_{j,k+1}\big],\\ P''_{jk} &= D^2\alpha_j^2\big[W_{jk}\big(1-2P^*_{jk}\big) - W_{j,k+1}\big(1-2P^*_{j,k+1}\big)\big],\\ P'''_{jk} &= D^3\alpha_j^3\big[W_{jk}\big(1-6P^*_{jk}+6P^{*2}_{jk}\big) - W_{j,k+1}\big(1-6P^*_{j,k+1}+6P^{*2}_{j,k+1}\big)\big]. \end{aligned} \]
compute_pi_ggrm() returns the four matrices Pi, dPi, d2Pi and d3Pi, holding \(P_{jk}\), \(P'_{jk}\), \(P''_{jk}\) and \(P'''_{jk}\), one row per item and one column per category: column \(k+1\) (named cat0, cat1, …) holds category \(k\). For an item with \(m_j < m\) category parameters, the entries for the categories \(k = m_j+1,\ldots,m\) are NA in all four matrices.
The dichotomous code replaces a probability of exactly 0 or 1 by \(10^{-10}\) or \(1-10^{-10}\), as catR::Pi() does for dichotomous items. For the MGRM neither compute_pi_ggrm() nor catR::Pi() floors, clips or renormalises anything: the category probabilities are exactly the differences above. They are positive and sum to 1 when the category parameters are strictly decreasing, but far above an item’s thresholds every category except the highest is the difference of two cumulative probabilities close to 1, so it loses precision and can come out as exactly 0; a worked example below measures the error. The only numerical guard is in compute_ii_ggrm(), which sums the information terms with na.rm = TRUE. That skips the NA entries of padded categories, and also any term that is \(0/0\) because \(P_{jk}\) has rounded to exactly 0 (its derivatives, computed from the same rounded cumulative probabilities, are then exactly 0 as well), so the information stays finite.
\(D\) appears only in the product \(D\alpha_j\), so for every \(\theta\)
\[P_{jk}\big(\theta;\,D,\,\alpha_j\big) = P_{jk}\big(\theta;\,1,\,D\alpha_j\big).\]
Setting \(D = 1.702\) is therefore exactly the same model as keeping \(D = 1\) and multiplying every discrimination by 1.702: it rescales the slopes and leaves the locations and category parameters alone. catR::Pi(model = "MGRM") applies \(D\) in the same place, and every function that takes \(D\) is checked against catR at both values below. \(D\) must match the metric on which the item parameters were calibrated; parameters from mirt are on the \(D = 1\) metric.
For a dichotomous item Fisher information is \(I_j(\theta) = P'^2/\big(P(1-P)\big)\). The polytomous generalisation sums the same quantity over categories, and test information is the sum of the item informations:
\[I_j(\theta) = \sum_{k=0}^{m} \frac{\big[P'_{jk}(\theta)\big]^2}{P_{jk}(\theta)}, \qquad I(\theta) = \sum_{j=1}^{n} I_j(\theta).\]
compute_ii_ggrm() evaluates \(I_j\) in exactly this form from the matrices of compute_pi_ggrm() and returns one value per item, so test information is the sum of its Ii. For \(m = 1\) the two categories are \(P\) and \(1-P\) with derivatives \(P'\) and \(-P'\), and the sum collapses to the dichotomous formula: the item is a 2PL item with difficulty \(b_j - c_1\), and \(I_j = D^2\alpha_j^2\,P^*_{j1}\big(1-P^*_{j1}\big)\). compute_ii_ggrm() also returns the first and second derivatives of the item information with respect to \(\theta\), obtained by differentiating each category term \(P'^2_{jk}/P_{jk}\) and summing:
\[I'_j = \sum_{k} \left[\frac{2P'_{jk}P''_{jk}}{P_{jk}} - \frac{P'^3_{jk}}{P^2_{jk}}\right], \qquad I''_j = \sum_{k} \left[\frac{2P''^2_{jk} + 2P'_{jk}P'''_{jk}}{P_{jk}} - \frac{5P'^2_{jk}P''_{jk}}{P^2_{jk}} + \frac{2P'^4_{jk}}{P^3_{jk}}\right].\]
Neither EAP scoring nor MFI selection uses \(I'_j\) and \(I''_j\); they are returned because catR::Ii() returns them.
Writing \(\Psi\) for the logistic function and \(\psi = \Psi(1-\Psi)\) for its derivative, the information of an MGRM item can be written as
\[I_j(\theta) = D^2\alpha_j^2 \sum_{k=0}^{m} \frac{\big[\psi(z_{jk}) - \psi(z_{j,k+1})\big]^2}{\Psi(z_{jk}) - \Psi(z_{j,k+1})}, \qquad z_{jk} = D\alpha_j\,(\theta - b_j + c_k),\]
with the boundary conventions \(z_{j0} = +\infty\) and \(z_{j,m+1} = -\infty\), so that \(\Psi(z_{j0}) = 1\), \(\Psi(z_{j,m+1}) = 0\) and \(\psi(z_{j0}) = \psi(z_{j,m+1}) = 0\). Two things can be read off. The ability enters only through \(\theta - b_j\), and the \(c_k\) are shared, so two items of a block with the same \(\alpha_j\) have the same information curve, shifted by the difference of their \(b_j\). And \(\alpha_j\) enters twice: as the factor \(\alpha_j^2\) in front, and inside \(z_{jk}\), where it sets how far apart the thresholds are relative to the width of each logistic step. So a larger \(\alpha_j\) gives a taller curve whose height grows roughly, not exactly, with \(\alpha_j^2\), and a curve that is narrower around each threshold. Both statements are checked numerically in a worked example below.
An adaptive test picks, at each step, the unadministered item that is most informative at the current ability estimate — the Maximum Fisher Information (MFI) criterion. compute_next_item_ggrm() takes the indices of the items already administered in out and chooses among the rest:
\[j^{*} = \arg\max_{j\notin\texttt{out}} I_j(\hat\theta)\]
It returns the index \(j^*\) as item, its information \(I_{j^*}(\hat\theta)\) as info, and the indices of the items that were available as available; when out already holds every item it stops with an error.

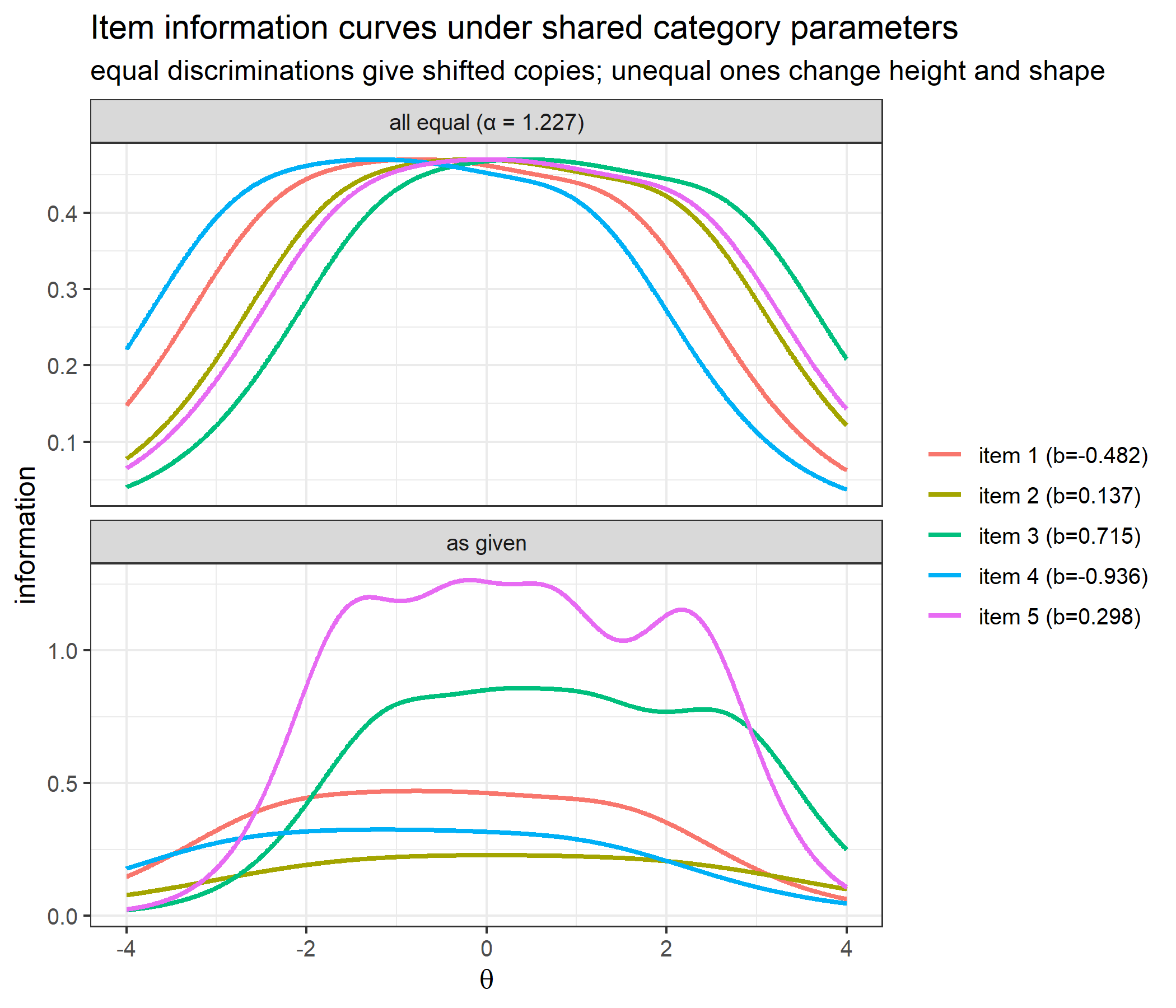

Within a block of equal discriminations the information curves are shifted copies of one another, so the choice depends only on where \(\theta\) sits relative to each \(b_j\). With different discriminations the curves differ in height and shape as well, so there is no such shortcut: the information of every available item has to be computed at \(\theta\), and an item with a large \(\alpha_j\) whose thresholds cover the current estimate tends to win most comparisons. That is why the randomesque argument matters: instead of always taking the single best item it draws at random from the \(k\) most informative ones, the standard way to keep a few items from being administered to almost everyone. Precisely, with
\[k = \max\Big(1,\ \min\big(\lfloor\texttt{randomesque}\rfloor,\ \text{number of available items}\big)\Big),\]
the next item is drawn with equal probabilities from the \(k\) available items with the largest \(I_j(\hat\theta)\), ties broken by item order as order() does; the default randomesque = 1 is pure MFI and draws no random number.
Two documented differences from catR::nextItem() matter only for exact ties. When several items tie for the maximum, catR draws one of them at random while compute_next_item_ggrm() takes the first; and with randomesque above 1, catR also keeps every item tied with the last one kept, so it can draw from more than \(k\) items. With randomesque = 1 and no exact tie the two always choose the same item.
Under local independence, the likelihood of a response pattern \(\mathbf{x} = (x_1,\ldots,x_n)\), with each response coded from 0, \(x_j \in \{0,\ldots,m\}\), is
\[L(\theta) = \prod_{j=1}^{n} P_{j x_j}(\theta).\]
This is the polytomous counterpart of \(\prod_j P_j^{x_j}(1-P_j)^{1-x_j}\): with more than two categories there is nothing for the exponents to switch between, so the response simply indexes a column of the probability matrix. The x[i]+1 in compute_likelihood_ggrm() is index bookkeeping — categories start at 0, R columns at 1 — so \(P_{jx_j}\) is read from column \(x_j+1\) of row \(j\).
A prior \(\pi(\theta)\) on ability (standard normal by default) turns the likelihood into a posterior, and EAP (Bock & Mislevy, 1982) reports its mean and standard deviation:
\[\hat\theta_{EAP} = \frac{\displaystyle\int \theta\,\pi(\theta)\,L(\theta)\,d\theta}{\displaystyle\int \pi(\theta)\,L(\theta)\,d\theta} \qquad SE(\hat\theta_{EAP}) = \sqrt{\frac{\displaystyle\int (\theta-\hat\theta_{EAP})^2\,\pi(\theta)\,L(\theta)\,d\theta}{\displaystyle\int \pi(\theta)\,L(\theta)\,d\theta}}\]
For a response pattern \(\mathbf{x}\) with likelihood \(L\), the three integrands are
\[ \begin{aligned} g(s) &= s\,\pi(s)\,L(s),\\ h(s) &= \pi(s)\,L(s),\\ g_{SE}(s) &= (s-\hat\theta_{EAP})^2\,\pi(s)\,L(s). \end{aligned} \]
On the quadrature grid \(X=(\theta_1,\ldots,\theta_Q)\), where \(Q=\texttt{nqp}\) and \(\theta_q=\texttt{lower}+(q-1)(\texttt{upper}-\texttt{lower})/(Q-1)\) (by default 33 points from \(-4\) to \(4\), as in catR), the two quantities are approximated by
\[ \hat\theta_{EAP} \approx \frac{\operatorname{Trap}(X,\,g(X))}{\operatorname{Trap}(X,\,h(X))} \qquad SE(\hat\theta_{EAP}) \approx \sqrt{\frac{\operatorname{Trap}(X,\,g_{SE}(X))}{\operatorname{Trap}(X,\,h(X))}}, \]
where \(g(X)=(g(\theta_1),\ldots,g(\theta_Q))\), likewise for \(h\) and \(g_{SE}\), and Trap denotes the trapezoidal integration implemented by integrate_cat() below. compute_eap_ggrm() computes the first ratio. compute_eap_se_ggrm() computes the second with its theta argument in place of \(\hat\theta_{EAP}\) in \(g_{SE}\): passing the EAP estimate gives the posterior standard deviation, and any other value gives the larger root mean squared deviation around that value.
Maximum Likelihood has no finite maximum for a pattern in which every response sits in the lowest category, or every response in the highest: the likelihood keeps increasing towards \(\theta = -\infty\) or \(\theta = +\infty\). As long as the category parameters are strictly decreasing, \(0 < L(\theta) \le 1\); since the normal prior has a finite mean and variance, all three integrals are then finite and the denominator positive for every response pattern, which is how the prior keeps the estimate and its standard error finite.
None of these integrals has a closed form, so the integrands are evaluated at the nqp quadrature points \(\theta_1<\cdots<\theta_Q\) and integrated with the trapezoidal rule, which approximates the area between two adjacent points by a trapezoid, the width times the average of the two heights:
\[\int f(\theta)\,d\theta \approx \operatorname{Trap}(X,\,f(X)) = \sum_{q=1}^{Q-1} (\theta_{q+1}-\theta_q)\,\frac{f(\theta_q)+f(\theta_{q+1})}{2}\]
integrate_cat() implements exactly this sum. The prior is the normal density, which density_function() writes out longhand:
\[\pi(\theta) = \frac{1}{\sigma\sqrt{2\pi}}\exp\!\left(-\frac{(\theta-\mu)^2}{2\sigma^2}\right), \qquad (\mu,\sigma) = \texttt{priorPar}\]
with the default priorPar = c(0, 1), the standard normal.
The bank from the examples in cat_eap_ggrm.R: five items on one five-point rating scale. \(\alpha_j\) and \(b_j\) vary across items; the four category parameters are common to all of them.
alphaj <- c(1.227, 0.845, 1.694, 1.012, 2.103)
bj <- c(-0.482, 0.137, 0.715, -0.936, 0.298)
c1 <- rep( 1.812, 5)
c2 <- rep( 0.603, 5)
c3 <- rep(-0.452, 5)
c4 <- rep(-1.963, 5)
bank <- matrix(c(alphaj, bj, c1, c2, c3, c4), nrow = 5,
dimnames = list(1:5, c("alphaj", "bj", "c1", "c2", "c3", "c4")))
bank alphaj bj c1 c2 c3 c4
1 1.227 -0.482 1.812 0.603 -0.452 -1.963
2 0.845 0.137 1.812 0.603 -0.452 -1.963
3 1.694 0.715 1.812 0.603 -0.452 -1.963
4 1.012 -0.936 1.812 0.603 -0.452 -1.963
5 2.103 0.298 1.812 0.603 -0.452 -1.963The bank has 6 columns for 5 response categories. The category parameters \(1.812 > 0.603 > -0.452 > -1.963\) are strictly decreasing and sum to zero, Muraki’s convention.
catRv <- seq(-3, 3, by = 0.1)
comparison <- data.frame(x = v, density_function = density_function(v), dnorm = dnorm(v))
head(comparison) x density_function dnorm
1 -3.0 0.004431848 0.004431848
2 -2.9 0.005952532 0.005952532
3 -2.8 0.007915452 0.007915452
4 -2.7 0.010420935 0.010420935
5 -2.6 0.013582969 0.013582969
6 -2.5 0.017528300 0.017528300all.equal(comparison$density_function, comparison$dnorm)[1] TRUEggplot(comparison, aes(x = x)) +

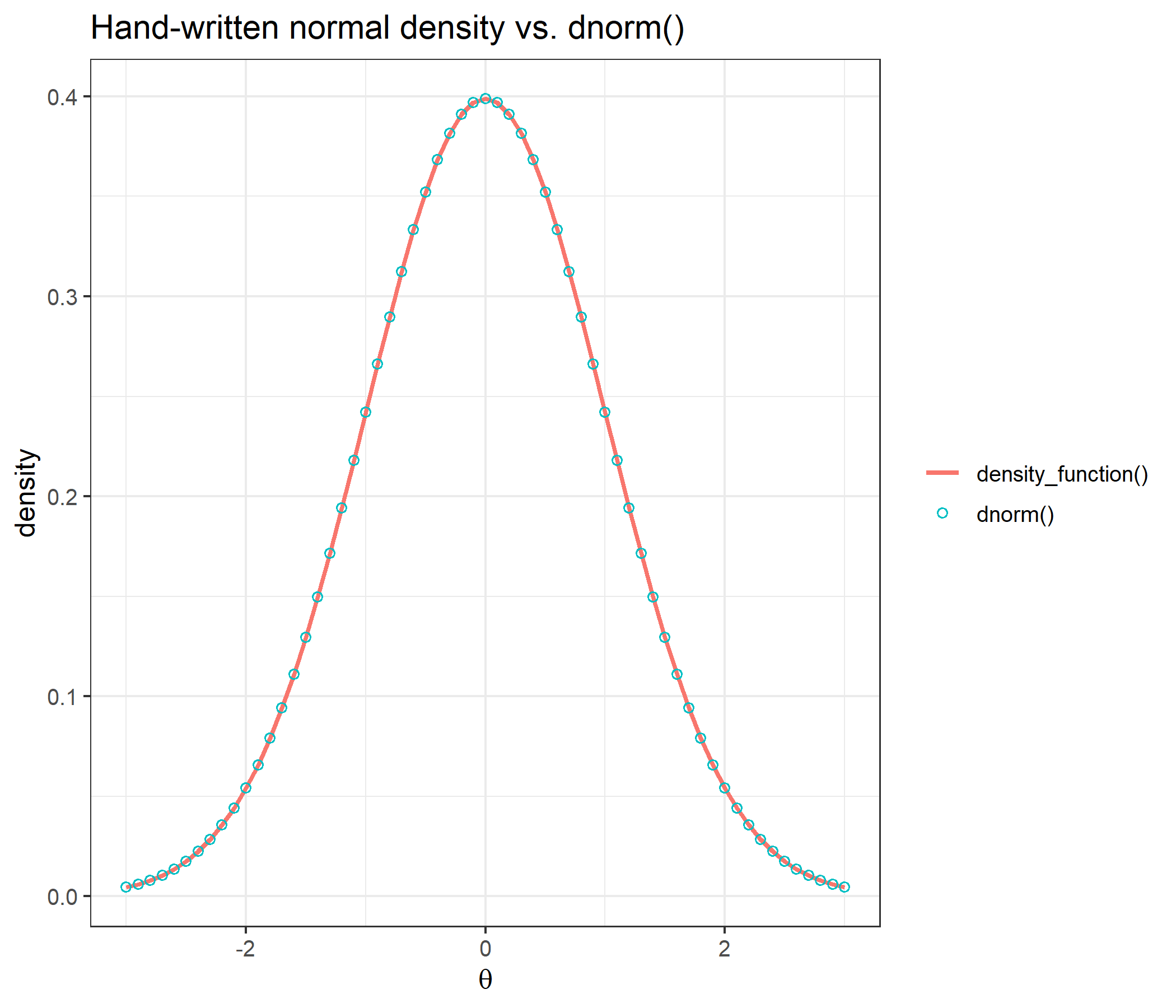

geom_line(aes(y = density_function, color = "density_function()"), linewidth = 1) +
geom_point(aes(y = dnorm, color = "dnorm()"), shape = 1) +
labs(title = "Hand-written normal density vs. dnorm()",
x = expression(theta), y = "density", color = NULL) +
theme_bw(base_size = 12)
The function writes out the textbook normal density longhand. It uses exp(1) rather than a hard-coded 2.71828, which is accurate to only six significant digits and, according to its documentation, shifts the EAP estimate in the seventh decimal.
x <- seq(from = -3, to = 3, length = 33)
y <- round(exp(x), 2)
c(integrate_cat = integrate_cat(x, y), integrate.catR = catR::integrate.catR(x, y)) integrate_cat integrate.catR
20.09437 20.09437 all.equal(integrate_cat(x, y), catR::integrate.catR(x, y))[1] TRUEBoth approximate \(\int_{-3}^{3} e^x\,dx\) on the same 33-point trapezoidal grid and return the same number.
At \(\theta = 0\), the probabilities; then, at nine abilities from \(-6\) to \(6\) and at both metric constants, the largest absolute difference from catR::Pi() in each of the four returned matrices, and whether the whole returned list, dimension names included, is identical to catR’s:
round(compute_pi_ggrm(theta = 0, bank)$Pi, 6) cat0 cat1 cat2 cat3 cat4
Item1 0.056533 0.152412 0.281853 0.369430 0.139772
Item2 0.195388 0.207422 0.219110 0.233097 0.144984
Item3 0.134899 0.412391 0.331060 0.111053 0.010597
Item4 0.058361 0.115649 0.205929 0.358781 0.261280
Item5 0.039775 0.305152 0.483888 0.162649 0.008536theta_check <- c(-6, -4, -2.5, -1, 0, 0.7, 2, 4, 6)
pi_diff <- do.call(rbind, lapply(c(1, 1.702), function(D) {
do.call(rbind, lapply(theta_check, function(th) {
mine <- compute_pi_ggrm(theta = th, bank, D = D)
theirs <- catR::Pi(th = th, bank, model = "MGRM", D = D)
data.frame(D = D, theta = th,
Pi = max(abs(mine$Pi - theirs$Pi)),
dPi = max(abs(mine$dPi - theirs$dPi)),
d2Pi = max(abs(mine$d2Pi - theirs$d2Pi)),
d3Pi = max(abs(mine$d3Pi - theirs$d3Pi)),
identical = identical(mine, theirs))
}))
}))
pi_diff D theta Pi dPi d2Pi d3Pi identical
1 1.000 -6.0 0 0 0 0 TRUE
2 1.000 -4.0 0 0 0 0 TRUE
3 1.000 -2.5 0 0 0 0 TRUE
4 1.000 -1.0 0 0 0 0 TRUE
5 1.000 0.0 0 0 0 0 TRUE
6 1.000 0.7 0 0 0 0 TRUE
7 1.000 2.0 0 0 0 0 TRUE
8 1.000 4.0 0 0 0 0 TRUE
9 1.000 6.0 0 0 0 0 TRUE
10 1.702 -6.0 0 0 0 0 TRUE
11 1.702 -4.0 0 0 0 0 TRUE
12 1.702 -2.5 0 0 0 0 TRUE
13 1.702 -1.0 0 0 0 0 TRUE
14 1.702 0.0 0 0 0 0 TRUE
15 1.702 0.7 0 0 0 0 TRUE
16 1.702 2.0 0 0 0 0 TRUE
17 1.702 4.0 0 0 0 0 TRUE
18 1.702 6.0 0 0 0 0 TRUEThe largest difference over all 18 comparisons and all four matrices is 0, and 18 of the 18 returned lists are identical to catR’s: the arithmetic is the same as catR’s, operation for operation.
Items answered on a different rating scale form a block with its own category parameters, and a scale with fewer categories leaves its rows padded with NA. Here three four-category items (scored 0 to 3, so three category parameters, centred at zero) are added to the bank and compared with catR on the same grid:
bank_two_blocks <- rbind(bank,
"6" = c(1.400, -0.300, 1.2, 0, -1.2, NA),
"7" = c(0.900, 0.500, 1.2, 0, -1.2, NA),
"8" = c(1.100, 0.100, 1.2, 0, -1.2, NA))
P_two_blocks <- compute_pi_ggrm(theta = 0, bank_two_blocks)$Pi
round(P_two_blocks, 6) cat0 cat1 cat2 cat3 cat4
Item1 0.056533 0.152412 0.281853 0.369430 0.139772
Item2 0.195388 0.207422 0.219110 0.233097 0.144984
Item3 0.134899 0.412391 0.331060 0.111053 0.010597
Item4 0.058361 0.115649 0.205929 0.358781 0.261280
Item5 0.039775 0.305152 0.483888 0.162649 0.008536
Item6 0.109097 0.287420 0.382509 0.220974 NA
Item7 0.347511 0.263129 0.211367 0.177994 NA
Item8 0.229701 0.297771 0.279429 0.193099 NArowSums(P_two_blocks, na.rm = TRUE)Item1 Item2 Item3 Item4 Item5 Item6 Item7 Item8
1 1 1 1 1 1 1 1 all(sapply(c(1, 1.702), function(D) sapply(theta_check, function(th)
identical(compute_pi_ggrm(theta = th, bank_two_blocks, D = D),
catR::Pi(th = th, bank_two_blocks, model = "MGRM", D = D)))))[1] TRUEItems 6 to 8 have NA for cat4 — the category does not exist — and the probabilities of every item still sum to 1. All four matrices, NAs included, are identical to catR’s at every point of the grid; the EAP check below scores a pattern on this bank as well.
theta_grid <- seq(-5, 5, by = 0.05)
curves <- t(sapply(theta_grid, function(th) compute_pi_ggrm(theta = th, bank)$Pi[1, ]))
cumulative <- t(apply(curves, 1, function(p) rev(cumsum(rev(p)))[-1])) # P(X >= k), k = 1..4
df_category <- data.frame(theta = theta_grid, curves)
names(df_category)[-1] <- paste0("category ", 0:4)
df_cumulative <- data.frame(theta = theta_grid, cumulative)
names(df_cumulative)[-1] <- paste0("X >= ", 1:4)
df_long <- rbind(
transform(reshape2::melt(df_cumulative, id.vars = "theta",
variable.name = "curve", value.name = "P"),
panel = "cumulative curves P(X >= k)"),
transform(reshape2::melt(df_category, id.vars = "theta",
variable.name = "curve", value.name = "P"),
panel = "category curves P(X = k)"))
df_long$panel <- factor(df_long$panel, levels = unique(df_long$panel))
ggplot(df_long, aes(x = theta, y = P, color = curve)) +
geom_line(linewidth = 1) +
facet_wrap(~ panel, ncol = 1) +
labs(title = "Item 1: cumulative curves and the category curves they produce",
subtitle = "each category curve is the gap between two adjacent cumulative curves",
x = expression(theta), y = expression(P(theta)), color = NULL) +
theme_bw(base_size = 12)

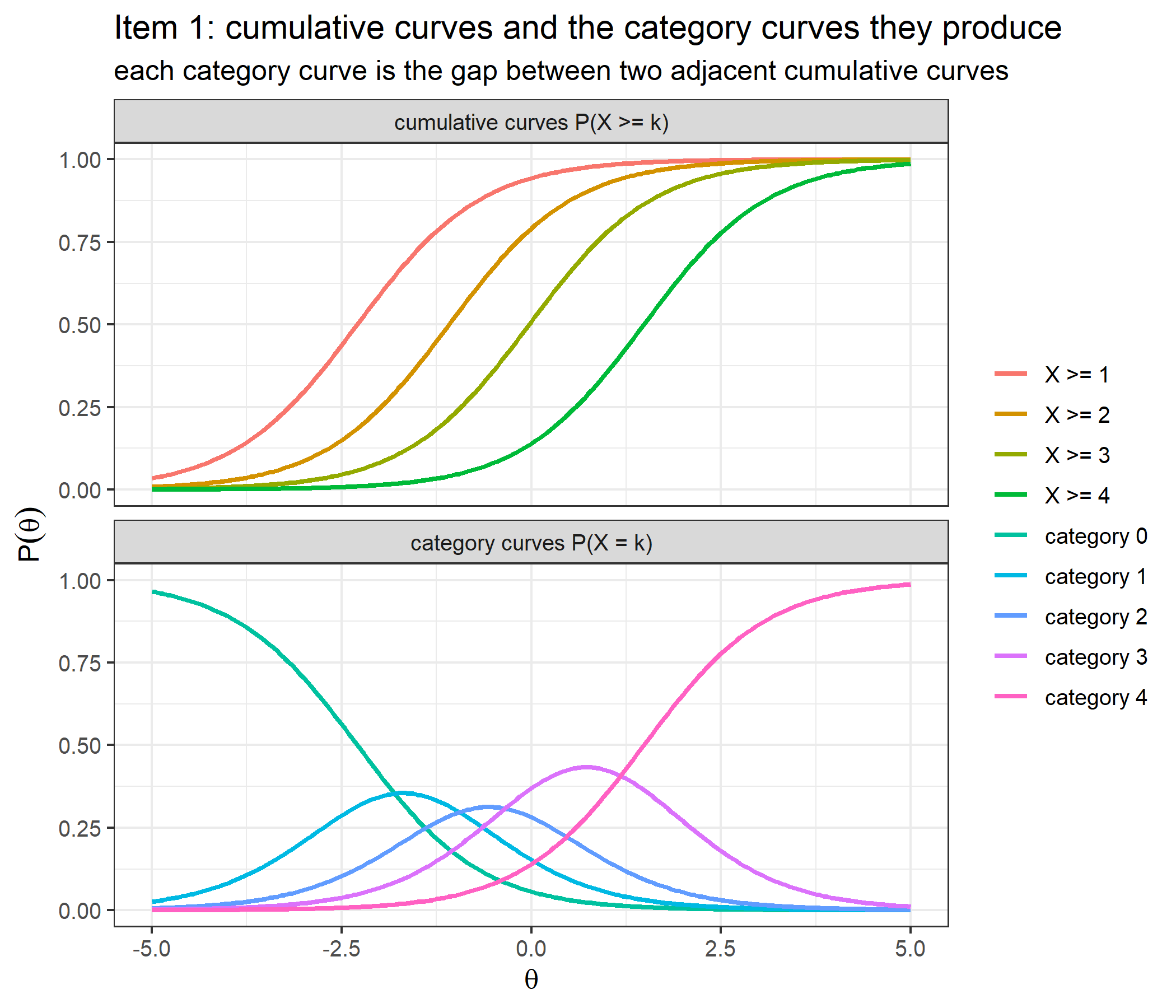

The top panel shows four parallel 2PL curves, one per threshold of item 1, all with the slope \(\alpha_1\); the bottom panel shows the gaps between them.
At \(\theta = 0\), the information of each item next to catR::Ii(); then every element — Ii, dIi and d2Ii — on the same grid of abilities and metric constants, as the largest absolute difference in each:
data.frame(mine = compute_ii_ggrm(theta = 0, bank)$Ii,
catR = catR::Ii(th = 0, bank, model = "MGRM")$Ii) mine catR
1 0.4620661 0.4620661
2 0.2278655 0.2278655
3 0.8510921 0.8510921
4 0.3159488 0.3159488
5 1.2588474 1.2588474ii_diff <- do.call(rbind, lapply(c(1, 1.702), function(D) {
do.call(rbind, lapply(theta_check, function(th) {
mine <- compute_ii_ggrm(theta = th, bank, D = D)
theirs <- catR::Ii(th = th, bank, model = "MGRM", D = D)
data.frame(D = D, theta = th,
Ii = max(abs(mine$Ii - theirs$Ii)),
dIi = max(abs(mine$dIi - theirs$dIi)),
d2Ii = max(abs(mine$d2Ii - theirs$d2Ii)))
}))
}))
ii_diff D theta Ii dIi d2Ii
1 1.000 -6.0 0 0 0
2 1.000 -4.0 0 0 0
3 1.000 -2.5 0 0 0
4 1.000 -1.0 0 0 0
5 1.000 0.0 0 0 0
6 1.000 0.7 0 0 0
7 1.000 2.0 0 0 0
8 1.000 4.0 0 0 0
9 1.000 6.0 0 0 0
10 1.702 -6.0 0 0 0
11 1.702 -4.0 0 0 0
12 1.702 -2.5 0 0 0
13 1.702 -1.0 0 0 0
14 1.702 0.0 0 0 0
15 1.702 0.7 0 0 0
16 1.702 2.0 0 0 0
17 1.702 4.0 0 0 0
18 1.702 6.0 0 0 0max(ii_diff[, c("Ii", "dIi", "d2Ii")])[1] 0info_grid <- seq(-4, 4, by = 0.01)

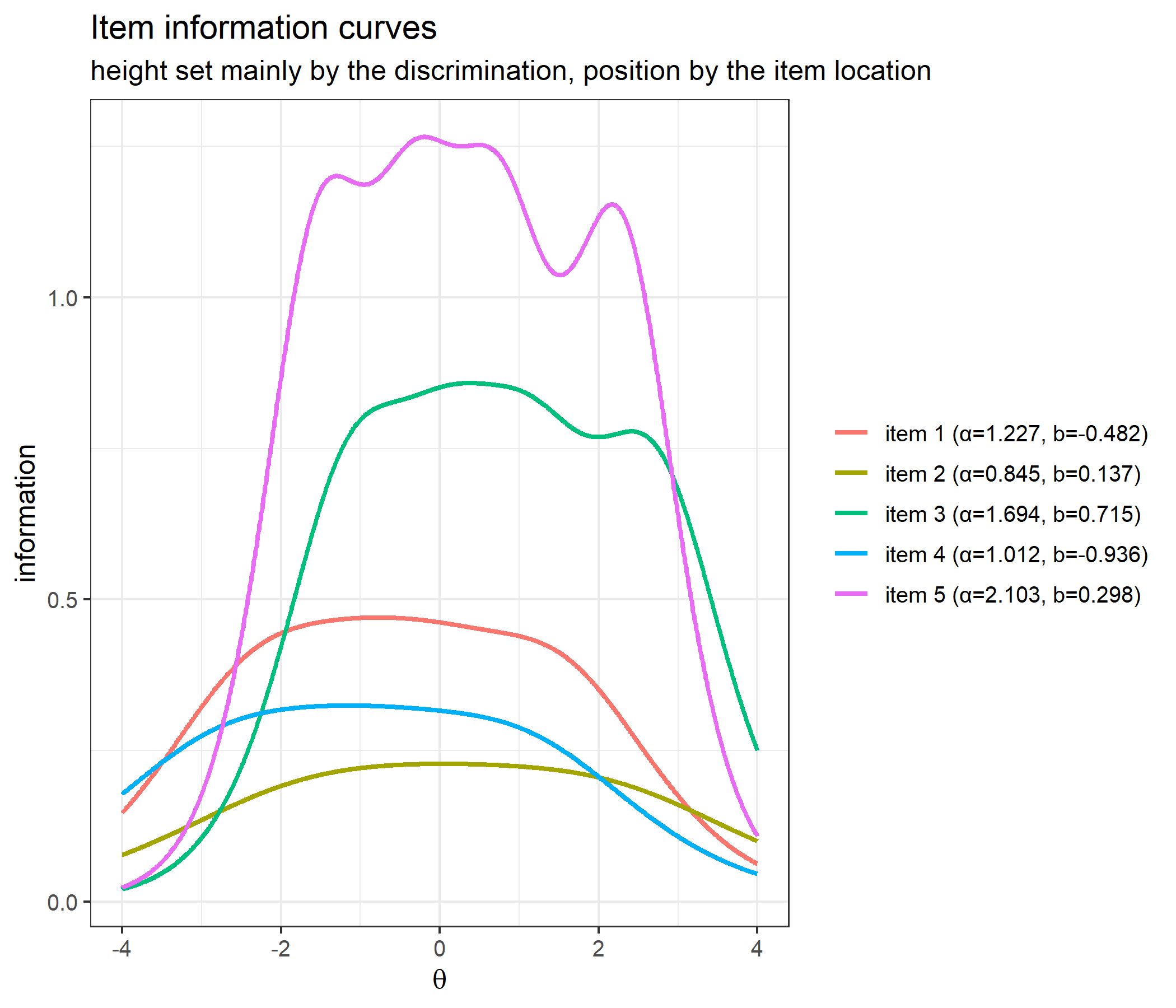

info <- t(sapply(info_grid, function(th) compute_ii_ggrm(th, bank)$Ii))
df_info <- data.frame(theta = info_grid, info)
names(df_info)[-1] <- paste0("item ", 1:5, " (α=", alphaj, ", b=", bj, ")")
df_info_long <- reshape2::melt(df_info, id.vars = "theta",
variable.name = "item", value.name = "information")
ggplot(df_info_long, aes(x = theta, y = information, color = item)) +
geom_line(linewidth = 1) +
labs(title = "Item information curves",
subtitle = "height set mainly by the discrimination, position by the item location",
x = expression(theta), y = "information", color = NULL) +
theme_bw(base_size = 12)

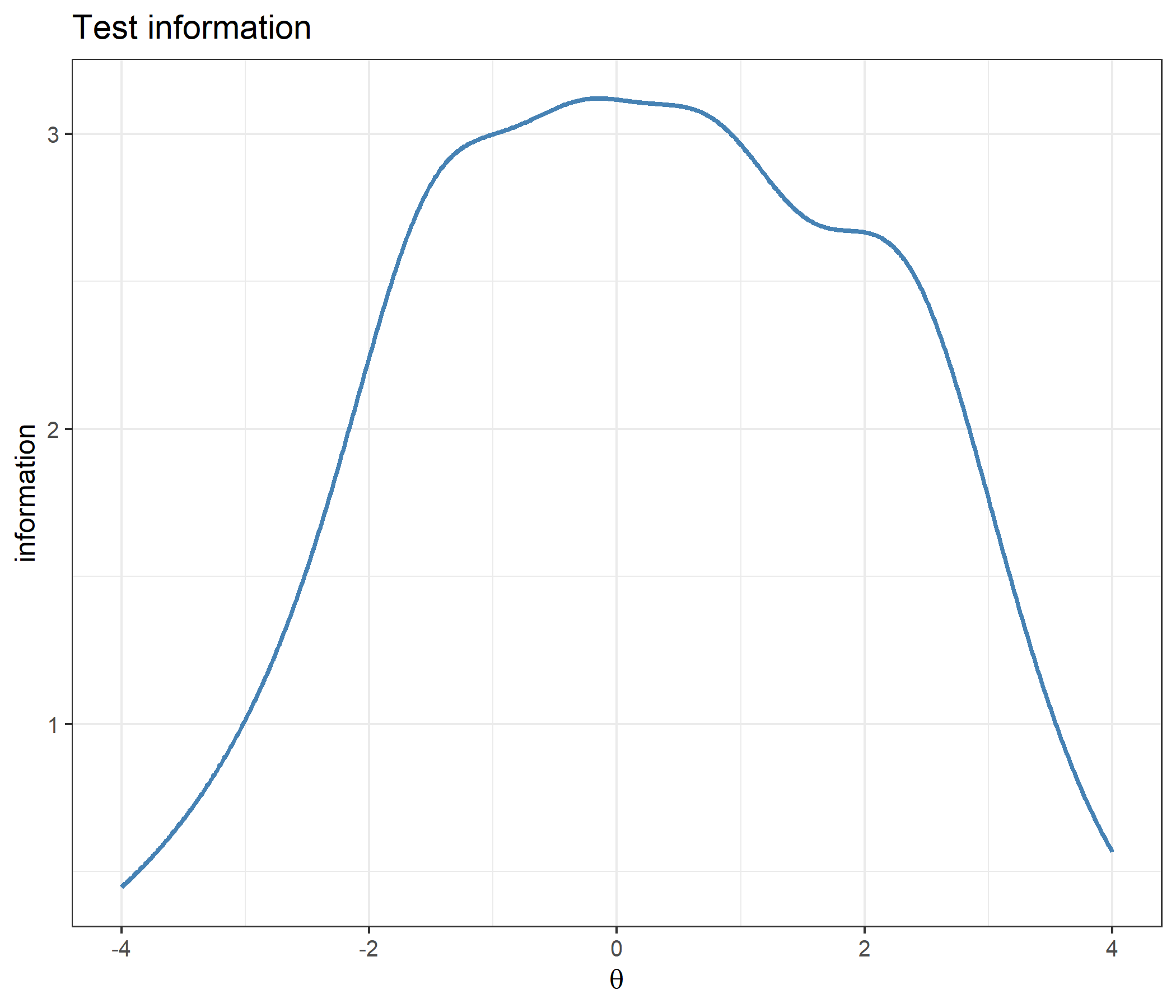

df_test <- data.frame(theta = info_grid, information = rowSums(info))
ggplot(df_test, aes(x = theta, y = information)) +
geom_line(linewidth = 1, color = "steelblue") +
labs(title = "Test information", x = expression(theta), y = "information") +
theme_bw(base_size = 12)
The curves differ in height and in shape, not only in position; the worked example on the information curves below separates the part of that caused by the discriminations from the part caused by the shared category parameters.
At \(\theta = 0\), and then across a grid of abilities at both metric constants:
mine <- compute_next_item_ggrm(theta = 0, bank)
theirs <- catR::nextItem(bank, model = "MGRM", theta = 0, criterion = "MFI")
c(mine_item = mine$item, catR_item = theirs$item,
mine_info = mine$info, catR_info = theirs$info)mine_item catR_item mine_info catR_info
5.000000 5.000000 1.258847 1.258847 next_diff <- do.call(rbind, lapply(c(1, 1.702), function(D) {
do.call(rbind, lapply(seq(-3, 3, by = 0.5), function(th) {
mine <- compute_next_item_ggrm(theta = th, bank, D = D)
theirs <- catR::nextItem(bank, model = "MGRM", theta = th, criterion = "MFI", D = D)
data.frame(D = D, theta = th, mine = mine$item, catR = theirs$item,
info_difference = abs(mine$info - theirs$info))
}))
}))
c(agreements = sum(next_diff$mine == next_diff$catR), comparisons = nrow(next_diff),
max_info_difference = max(next_diff$info_difference)) agreements comparisons max_info_difference
26 26 0 With items already administered excluded via out:
out_sets <- list(5, c(5, 3), c(5, 3, 1), c(5, 3, 1, 4))
do.call(rbind, lapply(out_sets, function(o) data.frame(
out = paste(o, collapse = ", "),
mine = compute_next_item_ggrm(theta = 0.5, bank, out = o)$item,
catR = catR::nextItem(bank, model = "MGRM", theta = 0.5, out = o, criterion = "MFI")$item))) out mine catR
1 5 3 3
2 5, 3 1 1
3 5, 3, 1 4 4
4 5, 3, 1, 4 2 2The documented differences are in the handling of exact ties, and the first one is easy to show. A bank in which the first two rows are the same item makes the most informative item tied by construction. catR::nextItem() re-seeds the random-number generator with set.seed(NULL) before it returns, so its draws are made reproducible here with its own random.seed argument, one seed per call:
bank_tied_items <- bank[c(1, 1, 2), ]
table(mine = replicate(200, compute_next_item_ggrm(theta = -0.8, bank_tied_items)$item))mine
1
200 table(catR = sapply(1:200, function(s)
catR::nextItem(bank_tied_items, model = "MGRM", theta = -0.8, criterion = "MFI",
random.seed = s)$item))catR
1 2
107 93 compute_next_item_ggrm() takes the first of the tied items every time; catR draws between them at random. With continuous item parameters exact ties are rare, which is why the grid comparison above agrees everywhere.
catR has no exported likelihood function to compare against, so the check reconstructs the same product from catR’s own probability matrix, \(\prod_j P_{jx_j}\) with \(P_{jx_j}\) taken from column \(x_j + 1\), at several abilities and both metric constants:
response <- c(4, 3, 2, 1, 0)
lik_check <- do.call(rbind, lapply(c(1, 1.702), function(D) {
do.call(rbind, lapply(c(-4, -1, 0.3, 2, 4), function(th) {
P_catR <- catR::Pi(th = th, bank, model = "MGRM", D = D)$Pi
mine <- compute_likelihood_ggrm(theta = th, bank = bank, x = response, D = D)
manual <- prod(P_catR[cbind(1:5, response + 1)])
data.frame(D = D, theta = th, compute_likelihood_ggrm = mine, from_catR_Pi = manual,
relative_difference = abs(mine - manual) / manual)
}))
}))
lik_check D theta compute_likelihood_ggrm from_catR_Pi relative_difference
1 1.000 -4.0 1.948919e-09 1.948919e-09 0.000000e+00
2 1.000 -1.0 3.799937e-05 3.799937e-05 1.783257e-16
3 1.000 0.3 3.793332e-05 3.793332e-05 0.000000e+00
4 1.000 2.0 3.458956e-07 3.458956e-07 0.000000e+00
5 1.000 4.0 1.763794e-11 1.763794e-11 1.831945e-16
6 1.702 -4.0 7.784494e-15 7.784494e-15 2.026749e-16
7 1.702 -1.0 5.420947e-07 5.420947e-07 0.000000e+00
8 1.702 0.3 7.590095e-07 7.590095e-07 1.394964e-16
9 1.702 2.0 1.674812e-10 1.674812e-10 1.543421e-16

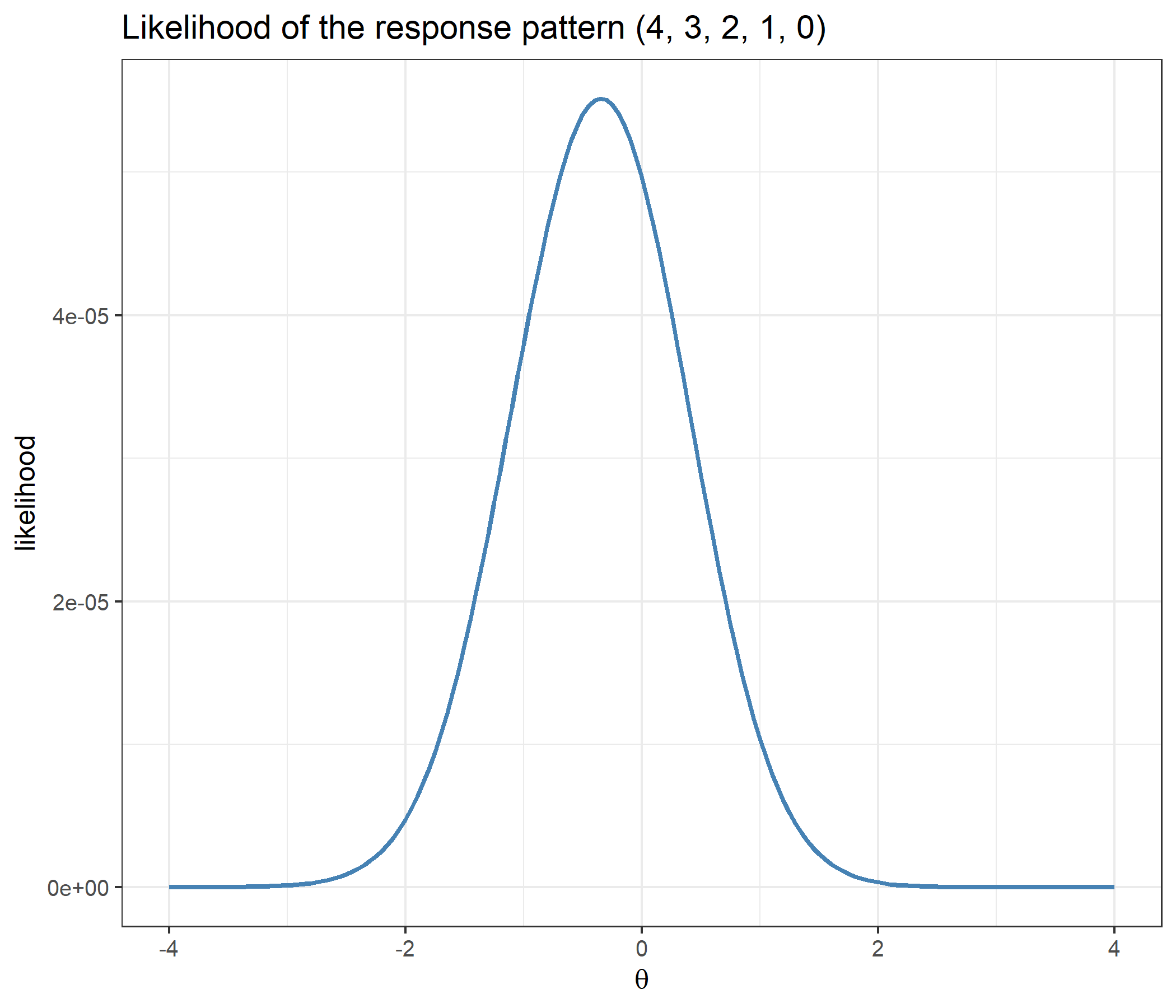

10 1.702 4.0 2.435776e-18 2.435776e-18 1.581368e-16lik_grid <- seq(-4, 4, by = 0.05)
df_lik <- data.frame(theta = lik_grid,
likelihood = sapply(lik_grid, function(th)
compute_likelihood_ggrm(th, bank, response)))
ggplot(df_lik, aes(x = theta, y = likelihood)) +
geom_line(linewidth = 1, color = "steelblue") +
labs(title = "Likelihood of the response pattern (4, 3, 2, 1, 0)",
x = expression(theta), y = "likelihood") +
theme_bw(base_size = 12)
Eight patterns on the five-item bank — the five uniform ones, including the two extremes, and three mixed ones — and one on the two-block bank with its NA padding, where items 6 to 8 can only be scored 0 to 3, at both metric constants:
patterns <- list(c(0, 0, 0, 0, 0), c(1, 1, 1, 1, 1), c(2, 2, 2, 2, 2),
c(3, 3, 3, 3, 3), c(4, 4, 4, 4, 4), c(4, 3, 2, 1, 0),
c(0, 1, 2, 3, 4), c(0, 4, 0, 4, 0),
c(4, 3, 2, 1, 0, 3, 0, 2)) # eight responses: the two-block bank
validation <- do.call(rbind, lapply(c(1, 1.702), function(D) {
do.call(rbind, lapply(patterns, function(x) {
b <- if (length(x) == nrow(bank)) bank else bank_two_blocks
th_mine <- compute_eap_ggrm(b, x, D = D)
th_catR <- catR::eapEst(b, x, model = "MGRM", D = D)
data.frame(D = D,
pattern = paste(x, collapse = " "),
eap_mine = th_mine,
eap_catR = th_catR,
se_mine = compute_eap_se_ggrm(th_mine, b, x, D = D),
se_catR = catR::eapSem(th_mine, b, x, model = "MGRM", D = D))
}))
}))
validation D pattern eap_mine eap_catR se_mine se_catR
1 1.000 0 0 0 0 0 -2.27647790 -2.27647790 0.6028025 0.6028025
2 1.000 1 1 1 1 1 -0.84240021 -0.84240021 0.4640510 0.4640510
3 1.000 2 2 2 2 2 0.05112909 0.05112909 0.4575643 0.4575643
4 1.000 3 3 3 3 3 1.02361816 1.02361816 0.4823409 0.4823409
5 1.000 4 4 4 4 4 2.53802232 2.53802232 0.5611965 0.5611965
6 1.000 4 3 2 1 0 -0.22803539 -0.22803539 0.5956929 0.5956929
7 1.000 0 1 2 3 4 0.47500791 0.47500791 0.5852100 0.5852100
8 1.000 0 4 0 4 0 -1.25298213 -1.25298213 0.6013998 0.6013998
9 1.000 4 3 2 1 0 3 0 2 0.04939176 0.04939176 0.5112199 0.5112199
10 1.702 0 0 0 0 0 -2.53355463 -2.53355463 0.5102942 0.5102942
11 1.702 1 1 1 1 1 -0.97536710 -0.97536710 0.3390033 0.3390033
12 1.702 2 2 2 2 2 0.03840348 0.03840348 0.3280065 0.3280065
13 1.702 3 3 3 3 3 1.12627363 1.12627363 0.3525305 0.3525305
14 1.702 4 4 4 4 4 2.76338499 2.76338499 0.4365596 0.4365596
15 1.702 4 3 2 1 0 -0.19980307 -0.19980307 0.5021662 0.5021662
16 1.702 0 1 2 3 4 0.50665081 0.50665081 0.4545588 0.4545588
17 1.702 0 4 0 4 0 -1.44666657 -1.44666657 0.4397063 0.4397063
18 1.702 4 3 2 1 0 3 0 2 0.15770594 0.15770594 0.3906113 0.3906113c(max_eap_difference = max(abs(validation$eap_mine - validation$eap_catR)),
max_se_difference = max(abs(validation$se_mine - validation$se_catR)))max_eap_difference max_se_difference
4.440892e-16 1.110223e-16 Both the point estimate and the standard error reproduce catR to machine precision for every pattern, at both metric constants — the largest differences are 4.4e-16 for the estimate and 1.1e-16 for the standard error — including the all-lowest and all-highest patterns, where Maximum Likelihood would have failed outright, and the NA-padded items of the two-block bank.
Computing the thresholds \(\beta_{jk} = b_j - c_k\) turns an MGRM bank into an ordinary GRM bank, laid out the way cat_eap_grm.R expects (discrimination, then the \(m\) thresholds), with the discriminations unchanged:
\[\big(\alpha_j,\ b_j,\ c_1,\ldots,c_m\big) \;\longmapsto\; \big(\alpha_j,\ b_j - c_1,\ \ldots,\ b_j - c_m\big).\]
The thresholds of the bank, and the gaps between consecutive thresholds:
bank_as_grm <- cbind(bank[, "alphaj"], bank[, "bj"] - bank[, c("c1", "c2", "c3", "c4")])
colnames(bank_as_grm) <- c("alphaj", "betaj1", "betaj2", "betaj3", "betaj4")
bank_as_grm alphaj betaj1 betaj2 betaj3 betaj4
1 1.227 -2.294 -1.085 -0.030 1.481
2 0.845 -1.675 -0.466 0.589 2.100
3 1.694 -1.097 0.112 1.167 2.678
4 1.012 -2.748 -1.539 -0.484 1.027
5 2.103 -1.514 -0.305 0.750 2.261round(t(apply(bank_as_grm[, -1], 1, diff)), 12) betaj2 betaj3 betaj4
1 1.209 1.055 1.511
2 1.209 1.055 1.511
3 1.209 1.055 1.511
4 1.209 1.055 1.511
5 1.209 1.055 1.511Every item has its own thresholds, but the gaps between them are the same in every row — 1.209, 1.055, 1.511, the differences \(c_k - c_{k+1}\). That is the restriction made concrete: each item’s set of thresholds is the same ladder, slid along the ability axis by \(b_j\). Passed to compute_pi_grm(), the converted bank gives the same output as the original bank passed to compute_pi_ggrm():
grm_grid <- seq(-4, 4, by = 0.25)
same_output <- sapply(grm_grid, function(th)
identical(compute_pi_ggrm(th, bank), compute_pi_grm(th, bank_as_grm)))
c(identical = sum(same_output), grid_points = length(grm_grid)) identical grid_points
33 33 The two functions return identical results — all four matrices, bit for bit — at every one of the 33 grid points. That is not a coincidence of rounding: compute_pi_ggrm() forms \(b_j - c_k\) as its first step and then runs exactly the code of compute_pi_grm(). Scoring agrees as well, both here and in catR:
x <- c(4, 3, 2, 1, 0)
c(compute_eap_ggrm = compute_eap_ggrm(bank, x),
compute_eap_grm = compute_eap_grm(bank_as_grm, x),
catR_MGRM = catR::eapEst(bank, x, model = "MGRM"),
catR_GRM = catR::eapEst(bank_as_grm, x, model = "GRM"))compute_eap_ggrm compute_eap_grm catR_MGRM catR_GRM
-0.2280354 -0.2280354 -0.2280354 -0.2280354 The conversion only runs one way. A GRM bank can be written as an MGRM bank only if the gaps between consecutive thresholds are the same for every item of a block, \(\beta_{j,k+1} - \beta_{jk} = c_k - c_{k+1}\) for every item \(j\) of the block. The bank from the examples of cat_eap_grm.R shows the usual situation:
grm_example <- matrix(c(1.227, 0.845, 1.694, 1.012, 2.103,
-2.183, -1.542, -1.021, -2.460, -0.812,
-0.874, -0.415, -0.231, -1.105, 0.094,
0.316, 0.783, 0.652, 0.047, 0.881,
1.592, 2.064, 1.438, 1.271, 1.736), nrow = 5,
dimnames = list(1:5, c("alphaj", "betaj1", "betaj2", "betaj3", "betaj4")))
t(apply(grm_example[, 2:5], 1, diff)) betaj2 betaj3 betaj4
1 1.309 1.190 1.276
2 1.127 1.198 1.281
3 0.790 0.883 0.786
4 1.355 1.152 1.224
5 0.906 0.787 0.855Every item has its own gaps, so no choice of \(b_j\) and shared \(c_k\) can reproduce these thresholds. The MGRM spends 13 item parameters on a five-item, five-category block where the GRM spends 25, and the price is exactly this assumption: the rating scale is used with the same spacing on every item.
Under the rating scale model the raw score is a sufficient statistic, so patterns with the same total get the same estimate. The MGRM shares the rating scale model’s idea of a common set of step parameters, but not that property. Five patterns that all sum to 10, scored with the bank as given and with a copy in which every discrimination is set to the same value:
same_total <- list(c(2, 2, 2, 2, 2), c(4, 3, 2, 1, 0), c(0, 1, 2, 3, 4),
c(4, 4, 2, 0, 0), c(0, 0, 2, 4, 4))
bank_equal_alpha <- bank
bank_equal_alpha[, "alphaj"] <- 1.227
sufficiency <- data.frame(
pattern = sapply(same_total, paste, collapse = " "),
raw_score = sapply(same_total, sum),
theta_EAP = sapply(same_total, function(x) compute_eap_ggrm(bank, x)),
theta_EAP_equal_alpha = sapply(same_total, function(x) compute_eap_ggrm(bank_equal_alpha, x)))
sufficiency pattern raw_score theta_EAP theta_EAP_equal_alpha
1 2 2 2 2 2 10 0.05112909 -0.09334225
2 4 3 2 1 0 10 -0.22803539 0.03429957
3 0 1 2 3 4 10 0.47500791 -0.02287911
4 4 4 2 0 0 10 -0.20461383 0.14801315
5 0 0 2 4 4 10 0.64529845 0.11013245With the discriminations as given the five estimates range from -0.228 to 0.645: which items the high responses fall on matters, through both their discriminations and their locations. Making the discriminations equal narrows the range to -0.093 to 0.148 but does not close it. The reason is the cumulative form: a category probability is a difference of two logistic curves, not an exponential of a linear function of \(\theta\), so the likelihood does not depend on the pattern only through its total, whatever the discriminations are.
The theory section showed that, within a block, an item’s information depends on \(\theta\) only through \(\theta - b_j\) and on \(\alpha_j\). The copy of the bank with equal discriminations isolates the first part. If the claim holds, each item’s curve is item 1’s curve shifted by \(b_j - b_1\):
info_item <- function(b, j, th) sapply(th, function(t) compute_ii_ggrm(t, b[j, , drop = FALSE])$Ii)
shift_check <- sapply(2:5, function(j)
max(abs(info_item(bank_equal_alpha, j, info_grid) -
info_item(bank_equal_alpha, 1, info_grid - (bj[j] - bj[1])))))
names(shift_check) <- paste("item", 2:5)
shift_check item 2 item 3 item 4 item 5
2.220446e-16 2.775558e-16 2.498002e-16 2.775558e-16 To rounding error they are. The peaks and heights make the same point:
peak_summary <- function(b) {
I <- t(sapply(info_grid, function(th) compute_ii_ggrm(th, b)$Ii))
data.frame(alphaj = b[, "alphaj"], bj = b[, "bj"],
peak = info_grid[apply(I, 2, which.max)],
max_information = apply(I, 2, max),
local_maxima = apply(I, 2, function(y) sum(diff(sign(diff(y))) == -2)))
}
peaks_equal <- peak_summary(bank_equal_alpha)
peaks_equal$offset <- peaks_equal$peak - peaks_equal$bj
peaks_equal alphaj bj peak max_information local_maxima offset
1 1.227 -0.482 -0.78 0.4699391 1 -0.298
2 1.227 0.137 -0.16 0.4699391 1 -0.297
3 1.227 0.715 0.42 0.4699391 1 -0.295
4 1.227 -0.936 -1.23 0.4699391 1 -0.294
5 1.227 0.298 0.00 0.4699391 1 -0.298With equal discriminations every item reaches the same maximum information, at the same offset of about -0.3 from its own \(b_j\) (the offset is not zero because the category parameters are not symmetric around zero, and it is only resolved to the 0.01 spacing of the grid). The bank then has no strong and weak items, only items aimed at different parts of the scale — and MFI selection among them depends only on where \(\theta\) sits relative to the \(b_j\). On this grid it is exactly a nearest-neighbour rule on \(b_j\) plus the offset:
mfi_equal <- sapply(info_grid, function(th) compute_next_item_ggrm(th, bank_equal_alpha)$item)
nearest <- sapply(info_grid, function(th) which.min(abs(th - mean(peaks_equal$offset) - bj)))
c(agreements = sum(mfi_equal == nearest), grid_points = length(info_grid)) agreements grid_points
801 801 With the discriminations as given, the picture changes:
peaks_given <- peak_summary(bank)
peaks_given$offset <- peaks_given$peak - peaks_given$bj
peaks_given$max_over_alpha2 <- peaks_given$max_information / peaks_given$alphaj^2
peaks_given alphaj bj peak max_information local_maxima offset max_over_alpha2
1 1.227 -0.482 -0.78 0.4699391 1 -0.298 0.3121421
2 0.845 0.137 0.04 0.2278741 1 -0.097 0.3191402
3 1.694 0.715 0.37 0.8578726 2 -0.345 0.2989482
4 1.012 -0.936 -1.16 0.3243571 1 -0.224 0.3167104
5 2.103 0.298 -0.19 1.2653538 4 -0.488 0.2861103info_long <- function(b, label) {
I <- t(sapply(info_grid, function(th) compute_ii_ggrm(th, b)$Ii))
d <- data.frame(theta = info_grid, I)
names(d)[-1] <- paste0("item ", 1:5, " (b=", bj, ")")
out <- reshape2::melt(d, id.vars = "theta", variable.name = "item", value.name = "information")
out$discriminations <- label
out
}
info_both <- rbind(info_long(bank_equal_alpha, "all equal (α = 1.227)"),
info_long(bank, "as given"))
ggplot(info_both, aes(x = theta, y = information, color = item)) +
geom_line(linewidth = 0.9) +
facet_wrap(~ discriminations, ncol = 1, scales = "free_y") +
labs(title = "Item information curves under shared category parameters",
subtitle = "equal discriminations give shifted copies; unequal ones change height and shape",
x = expression(theta), y = "information", color = NULL) +
theme_bw(base_size = 12)
Adding the same constant to every \(b_j\) and every \(c_k\) (\(t = 0.75\) below), or moving to mirt’s convention of \(b_1 = 0\) (\(t = -b_1\)), leaves every threshold, and therefore every probability, where it was:
bank_shifted <- bank
bank_shifted[, 2:6] <- bank[, 2:6] + 0.75
bank_mirt_convention <- bank
bank_mirt_convention[, 2:6] <- bank[, 2:6] - bank[1, "bj"]
bank_mirt_convention alphaj bj c1 c2 c3 c4
1 1.227 0.000 2.294 1.085 0.03 -1.481
2 0.845 0.619 2.294 1.085 0.03 -1.481
3 1.694 1.197 2.294 1.085 0.03 -1.481
4 1.012 -0.454 2.294 1.085 0.03 -1.481
5 2.103 0.780 2.294 1.085 0.03 -1.481max_pi_difference <- function(b1, b2) max(sapply(seq(-4, 4, by = 0.25), function(th) {
p1 <- compute_pi_ggrm(th, b1)
p2 <- compute_pi_ggrm(th, b2)
max(sapply(names(p1), function(k) max(abs(p1[[k]] - p2[[k]]))))
}))
c(shifted_by_0.75 = max_pi_difference(bank, bank_shifted),
mirt_convention = max_pi_difference(bank, bank_mirt_convention))shifted_by_0.75 mirt_convention
7.771561e-16 4.718448e-16 x <- c(4, 3, 2, 1, 0)
sprintf("%.12f", c(Muraki = compute_eap_ggrm(bank, x),
shifted = compute_eap_ggrm(bank_shifted, x),
mirt = compute_eap_ggrm(bank_mirt_convention, x)))[1] "-0.228035393373" "-0.228035393373" "-0.228035393373"The differences are floating-point rounding in \(b_j - c_k\), never more than 7.8e-16 across all four matrices, and the EAP estimates agree to twelve decimals. The practical consequence: parameters from two calibrations can look very different and still describe the same items. Before comparing \(b_j\) or \(c_k\) across sources, put them on the same convention — for example centre the \(c_k\) of each block at zero, as this bank already is.
Neither compute_pi_ggrm() nor catR::Pi() checks the order of the category parameters. Two equal category parameters make two cumulative curves coincide, and the category between them gets probability zero:
bank_tied <- bank
bank_tied[, "c2"] <- bank[, "c3"] # c2 = c3
round(compute_pi_ggrm(theta = 0, bank_tied)$Pi, 6) cat0 cat1 cat2 cat3 cat4
Item1 0.056533 0.434266 0 0.369430 0.139772
Item2 0.195388 0.426532 0 0.233097 0.144984
Item3 0.134899 0.743451 0 0.111053 0.010597
Item4 0.058361 0.321578 0 0.358781 0.261280
Item5 0.039775 0.789040 0 0.162649 0.008536c(mine = compute_eap_ggrm(bank_tied, c(2, 2, 2, 2, 2)),
catR = catR::eapEst(bank_tied, c(2, 2, 2, 2, 2), model = "MGRM"))mine catR
NaN NaN Category 2 is impossible for every item, so a pattern that uses it has likelihood zero everywhere; both integrals are zero and the EAP is 0/0, which is NaN in both implementations. An increasing pair is worse, because nothing fails visibly:
bank_crossed <- bank
bank_crossed[, c("c2", "c3")] <- bank[, c("c3", "c2")] # c2 < c3
P_crossed <- compute_pi_ggrm(theta = 0, bank_crossed)$Pi
round(P_crossed, 6) cat0 cat1 cat2 cat3 cat4
Item1 0.056533 0.434266 -0.281853 0.651283 0.139772
Item2 0.195388 0.426532 -0.219110 0.452206 0.144984
Item3 0.134899 0.743451 -0.331060 0.442113 0.010597
Item4 0.058361 0.321578 -0.205929 0.564709 0.261280
Item5 0.039775 0.789040 -0.483888 0.646537 0.008536rowSums(P_crossed)Item1 Item2 Item3 Item4 Item5
1 1 1 1 1 The cumulative curves cross, category 2 gets a negative “probability”, and the rows still sum to 1 because the differences telescope, so a check of the row sums would not catch it. The order has to be checked when the bank is built:
check_order <- function(b) all(apply(b[, -(1:2), drop = FALSE], 1,
function(ck) all(diff(ck[!is.na(ck)]) < 0)))
c(bank = check_order(bank), two_blocks = check_order(bank_two_blocks),
tied = check_order(bank_tied), crossed = check_order(bank_crossed)) bank two_blocks tied crossed
TRUE TRUE FALSE FALSE mirt graded rating scale fitThe documentation of compute_pi_ggrm() gives a recipe for turning a mirt model fitted with itemtype = "grsm" into a bank. mirt writes the cumulative curve as
\[P^*_{jk} = \Psi\big(a_{j}(\theta + c_j + b_k)\big)\]
— note that the letters swap roles: mirt’s item parameter is c and its category parameters are b1 to bm. Matching that with \(\Psi\big(D\alpha_j(\theta - b_j + c_k)\big)\) at \(D = 1\) gives the conversion, with mirt’s parameters on the right-hand sides:
\[\alpha_j = a_j, \qquad b_j = -c_j, \qquad c_k = b_k \qquad (D = 1).\]
To check the recipe, 1000 examinees are simulated from the bank, the model is fitted with mirt, and the converted bank is compared with mirt’s own trace lines.
set.seed(123)
n_examinees <- 1000
theta_sim <- rnorm(n_examinees)
responses_sim <- t(sapply(theta_sim, function(th) {
p <- compute_pi_ggrm(th, bank)$Pi
apply(p, 1, function(pr) sample(0:4, size = 1, prob = pr))
}))
colnames(responses_sim) <- paste0("item", 1:5)
fit <- mirt::mirt(as.data.frame(responses_sim), 1, itemtype = "grsm", verbose = FALSE)
pars <- mirt::coef(fit, simplify = TRUE)$items
round(pars, 3) a1 b1 b2 b3 b4 c
item1 1.190 2.086 0.947 -0.053 -1.508 0.000
item2 0.925 2.086 0.947 -0.053 -1.508 -0.403
item3 1.737 2.086 0.947 -0.053 -1.508 -1.059
item4 1.075 2.086 0.947 -0.053 -1.508 0.605
item5 2.249 2.086 0.947 -0.053 -1.508 -0.681mirt::coef(fit, simplify = TRUE)[c("means", "cov")]$means
F1
0
$cov
F1
F1 1mirt has fixed \(c_j = 0\) for the first item — its identifiability convention — and in this fit the latent distribution has mean 0 and variance 1, the same standard normal the EAP functions use as their default prior. The conversion:
bank_mirt <- cbind(pars[, "a1"], -pars[, "c"], pars[, grep("^b[0-9]", colnames(pars))])
colnames(bank_mirt) <- colnames(bank)
round(bank_mirt, 3) alphaj bj c1 c2 c3 c4
item1 1.190 0.000 2.086 0.947 -0.053 -1.508
item2 0.925 0.403 2.086 0.947 -0.053 -1.508
item3 1.737 1.059 2.086 0.947 -0.053 -1.508
item4 1.075 -0.605 2.086 0.947 -0.053 -1.508
item5 2.249 0.681 2.086 0.947 -0.053 -1.508trace_grid <- seq(-4, 4, by = 0.1)
trace_difference <- sapply(1:5, function(j) {
mirt_trace <- mirt::probtrace(mirt::extract.item(fit, j), matrix(trace_grid))
mine <- t(sapply(trace_grid, function(th) compute_pi_ggrm(th, bank_mirt[j, , drop = FALSE])$Pi[1, ]))
max(abs(mirt_trace - mine))
})
names(trace_difference) <- paste("item", 1:5)
trace_difference item 1 item 2 item 3 item 4 item 5
3.330669e-16 2.220446e-16 2.220446e-16 2.220446e-16 2.220446e-16 The converted bank reproduces mirt’s trace lines for every item to within 3.3e-16 over the whole grid, so the recipe is right. The converted bank uses mirt’s convention, \(b_1 = 0\); re-centring its category parameters at zero, as in the generating bank (the shift by \(t = -\bar c\) from the theory section, \(b_j - \bar c\) and \(c_k - \bar c\)), makes the estimates directly comparable with the values they were simulated from:
bank_mirt_centred <- bank_mirt
bank_mirt_centred[, 2:6] <- bank_mirt[, 2:6] - mean(bank_mirt[1, 3:6])
recovery <- data.frame(alphaj_true = bank[, "alphaj"], alphaj_mirt = bank_mirt_centred[, "alphaj"],
bj_true = bank[, "bj"], bj_mirt = bank_mirt_centred[, "bj"])
round(recovery, 3) alphaj_true alphaj_mirt bj_true bj_mirt
1 1.227 1.190 -0.482 -0.368
2 0.845 0.925 0.137 0.035
3 1.694 1.737 0.715 0.691
4 1.012 1.075 -0.936 -0.973
5 2.103 2.249 0.298 0.313round(rbind(true = bank[1, 3:6], mirt = bank_mirt_centred[1, 3:6]), 3) c1 c2 c3 c4
true 1.812 0.603 -0.452 -1.963
mirt 1.718 0.579 -0.421 -1.876c(max_difference = max(abs(bank_mirt_centred - bank)))max_difference
0.1457183 On a common convention the estimates are close to the generating values, the largest difference being 0.146 — the sampling error of a calibration on 1000 simulated examinees. Without the re-centring the locations would appear to disagree by the arbitrary constant that the two conventions differ by.
Everything above assembles into an adaptive loop. At each step, pick the most informative unadministered item at the current estimate, collect a response, rescore, repeat.
set.seed(1)
true_theta <- 1.0
# simulate a response to item j from an examinee at true_theta
simulate_response <- function(j, theta) {
p <- compute_pi_ggrm(theta, bank[j, , drop = FALSE])$Pi[1, ]
p <- p[!is.na(p)]
sample(0:(length(p) - 1), size = 1, prob = p)
}
theta <- 0
administered <- integer(0)
responses <- integer(0)
trace <- data.frame()
for (step in 1:5) {
sel <- compute_next_item_ggrm(theta, bank, out = administered)
administered <- c(administered, sel$item)
responses <- c(responses, simulate_response(sel$item, true_theta))
sub_bank <- bank[administered, , drop = FALSE]
theta <- compute_eap_ggrm(sub_bank, responses)
se <- compute_eap_se_ggrm(theta, sub_bank, responses)
trace <- rbind(trace, data.frame(step = step, item = sel$item,
alphaj = bank[sel$item, "alphaj"],
bj = bank[sel$item, "bj"],
information = sel$info,
response = tail(responses, 1),
theta_EAP = theta, SE = se))
}
trace step item alphaj bj information response theta_EAP SE
1 1 5 2.103 0.298 1.2588474 3 0.8101377 0.6945743
2 2 3 1.694 0.715 0.8529470 2 0.7625553 0.5622521
3 3 1 1.227 -0.482 0.4454313 4 1.0046814 0.5311685
4 4 4 1.012 -0.936 0.2880002 2 0.8103683 0.5148317

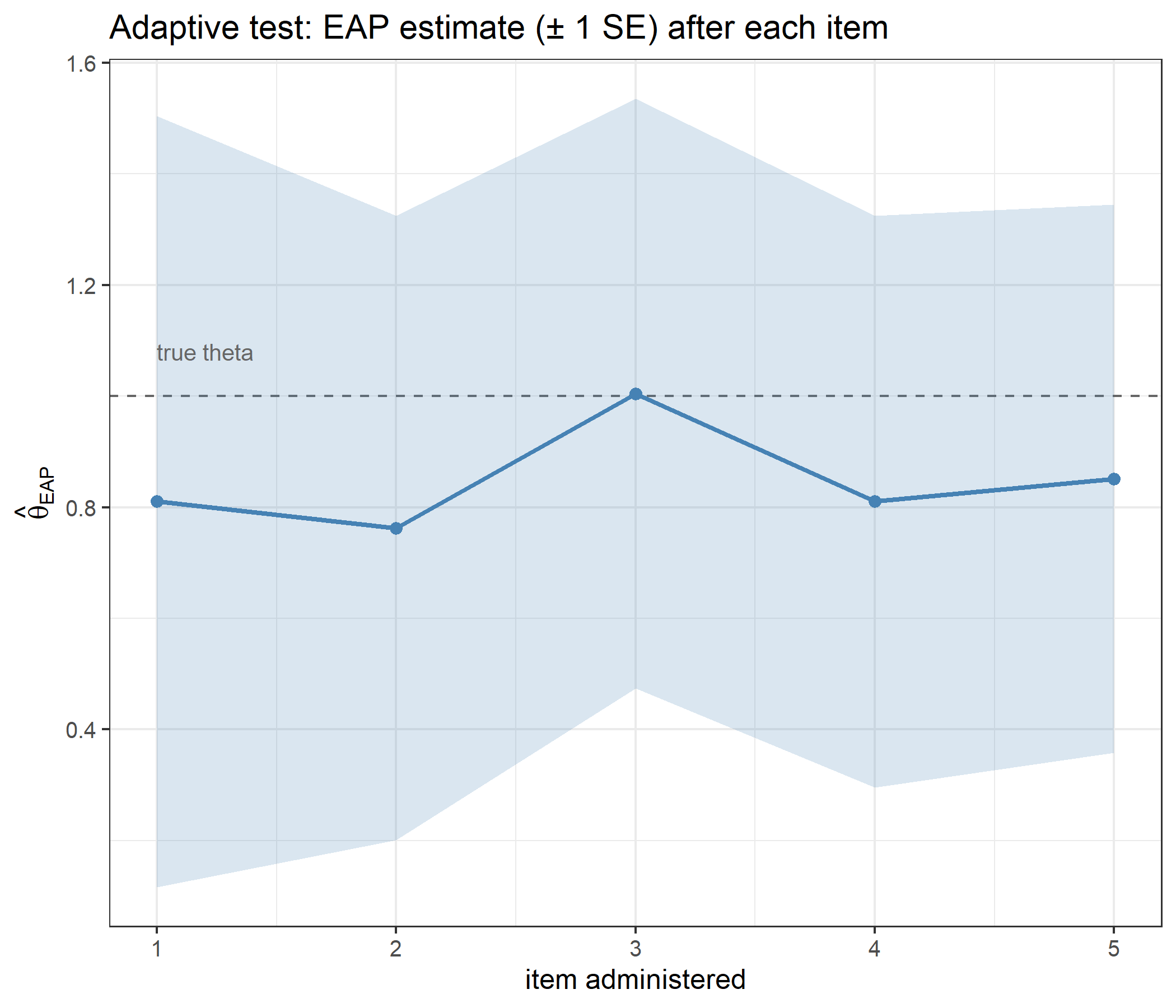

5 5 2 0.845 0.137 0.2251844 3 0.8512289 0.4938620ggplot(trace, aes(x = step, y = theta_EAP)) +
geom_hline(yintercept = true_theta, linetype = "dashed", color = "grey40") +
geom_ribbon(aes(ymin = theta_EAP - SE, ymax = theta_EAP + SE),
alpha = 0.2, fill = "steelblue") +
geom_line(color = "steelblue", linewidth = 1) +
geom_point(size = 2, color = "steelblue") +
annotate("text", x = 1, y = true_theta + 0.08, hjust = 0,
label = "true theta", color = "grey40", size = 3.5) +
scale_x_continuous(breaks = trace$step) +
labs(title = "Adaptive test: EAP estimate (± 1 SE) after each item",
x = "item administered", y = expression(hat(theta)[EAP])) +
theme_bw(base_size = 12)
The loop opens with item 5, the most discriminating item in the bank, and then takes the items in the order 5, 3, 1, 4, 2, which is also the order of decreasing discrimination (2.103, 1.694, 1.227, 1.012, 0.845). The standard error falls at every step, from 0.695 after one item to 0.494 after five, and the final estimate is 0.851 for a true ability of 1. Unlike a rating scale bank, where every item is equally good and only the targeting differs, the discrimination dominates the choice here.
Pure MFI is deterministic: every examinee starting at \(\theta = 0\) receives the same first item. Across the whole ability range the steepest item is chosen most of the time:
mfi_given <- sapply(info_grid, function(th) compute_next_item_ggrm(th, bank)$item)
round(table(mfi_given) / length(mfi_given), 3)mfi_given
1 3 4 5
0.114 0.135 0.065 0.687 Item 5 is the MFI choice at 68.7% of the grid points between \(-4\) and \(4\), and item 2 is never the first choice anywhere on the grid. The randomesque argument draws at random from the \(k\) best instead:
set.seed(42)
table(replicate(2000, compute_next_item_ggrm(theta = 0, bank, randomesque = 1)$item))
5
2000 table(replicate(2000, compute_next_item_ggrm(theta = 0, bank, randomesque = 3)$item))
1 3 5
679 664 657 With randomesque = 1 the same item is chosen 2000 times out of 2000; with randomesque = 3 the load is spread over three items. Because the items here differ in how informative they can be, the cost is much larger than in a bank with equal discriminations:
randomesque_cost <- function(b) {
info_at_0 <- compute_ii_ggrm(theta = 0, b)$Ii
top3 <- sort(info_at_0, decreasing = TRUE)[1:3]
c(best_item = max(info_at_0), mean_of_top_3 = mean(top3),
proportion_of_best = mean(top3) / max(info_at_0))
}
rbind(as_given = randomesque_cost(bank), equal_alpha = randomesque_cost(bank_equal_alpha)) best_item mean_of_top_3 proportion_of_best
as_given 1.2588474 0.8573352 0.6810477
equal_alpha 0.4699391 0.4690481 0.9981041Drawing from the top three keeps 68% of the information of the best item with the discriminations as given, against 100% when they are equal. That is the usual trade-off between measurement efficiency and item security, and in an MGRM bank with a wide spread of discriminations it is a real trade.
The EAP integrals are approximations, and four arguments control them. None of these is a free choice to make casually.
x <- c(4, 4, 4, 4, 4) # the hardest case for numerical integration
settings <- rbind(
data.frame(setting = "quadrature points", value = c(11, 33, 101, 501),
theta = sapply(c(11, 33, 101, 501),
function(n) compute_eap_ggrm(bank, x, nqp = n))),
data.frame(setting = "integration bound", value = c(3, 4, 6),
theta = sapply(c(3, 4, 6),
function(b) compute_eap_ggrm(bank, x, lower = -b, upper = b))),
data.frame(setting = "prior SD", value = c(1, 2),
theta = sapply(c(1, 2),
function(s) compute_eap_ggrm(bank, x, priorPar = c(0, s)))),
data.frame(setting = "metric constant D", value = c(1, 1.702),
theta = sapply(c(1, 1.702),
function(d) compute_eap_ggrm(bank, x, D = d)))
)
settings setting value theta
1 quadrature points 11.000 2.530149
2 quadrature points 33.000 2.538022
3 quadrature points 101.000 2.538743
4 quadrature points 501.000 2.538822
5 integration bound 3.000 2.334881
6 integration bound 4.000 2.538022
7 integration bound 6.000 2.554846
8 prior SD 1.000 2.538022
9 prior SD 2.000 3.196944
10 metric constant D 1.000 2.538022
11 metric constant D 1.702 2.763385Three different kinds of effect are visible here, and they should not be confused with one another:
catR.mirt calibration, \(D = 1\).A category probability is a difference of two cumulative probabilities. Far above an item’s thresholds both are close to 1, and their difference loses precision. The documentation of compute_pi_ggrm() warns about this, and it is easy to see on the steepest item: category 0 of item 5 is \(1 - P^*_{51}\), which can also be computed accurately as the upper tail of the logistic distribution.
theta_far <- c(4, 8, 12, 16, 20)
beta_51 <- bank[5, "bj"] - bank[5, "c1"]
precision <- data.frame(
theta = theta_far,
computed = sapply(theta_far, function(t) compute_pi_ggrm(t, bank[5, , drop = FALSE])$Pi[1, "cat0"]),
catR = sapply(theta_far, function(t) catR::Pi(t, bank[5, , drop = FALSE], model = "MGRM")$Pi[1, "cat0"]),
accurate = plogis(bank[5, "alphaj"] * (theta_far - beta_51), lower.tail = FALSE))
precision$relative_error <- abs(precision$computed - precision$accurate) / precision$accurate
precision theta computed catR accurate relative_error
1 4 9.203275e-06 9.203275e-06 9.203275e-06 4.380915e-13
2 8 2.044849e-09 2.044849e-09 2.044849e-09 1.646362e-08
3 12 4.543033e-13 4.543033e-13 4.543348e-13 6.944019e-05
4 16 0.000000e+00 0.000000e+00 1.009464e-16 1.000000e+00
5 20 0.000000e+00 0.000000e+00 2.242878e-20 1.000000e+00At \(\theta = 4\), the upper integration bound, the relative error is 4.4e-13. It grows as the true probability shrinks towards the size of the rounding error in numbers close to 1: at \(\theta = 12\) it is 6.9e-05, and further out the computed value is 0 at \(\theta = 16\) and 0 at \(\theta = 20\), where the accurate values are 1e-16 and 2.2e-20. catR computes these probabilities the same way and returns the same values. The problem only arises for a response far below what \(\theta\) predicts on a steep item, at abilities far outside the default integration range of this bank, so it has no visible effect on any EAP result in this vignette.
All eight functions used here reproduce their catR counterparts: the normal density, the trapezoidal integrator, the MGRM category probabilities with all three derivatives (for items padded with NA as well), the item information with both derivatives, MFI item selection with and without excluded items, the likelihood (rebuilt from catR’s probabilities, since catR does not export one), and the two integrals that define EAP scoring, at both metric constants and for extreme patterns as well as ordinary ones. The only documented differences, both in the handling of exactly tied items in selection, show up only when a tie is built in on purpose.
Written out, the model’s character is easy to see. The MGRM is the graded response model with its thresholds split into an item location and category parameters shared across a block — a restriction, which compute_pi_ggrm() makes literal by forming \(b_j - c_k\) and then running the GRM code unchanged. Sharing the category parameters makes the information curves of equally discriminating items shifted copies of one another, but because the model keeps the item discrimination, a real bank has strong and weak items, the most discriminating item dominates adaptive selection, and exposure control has a visible cost. The split between locations and category parameters is not identified without a constraint, so parameters from different sources must be put on one convention before they are compared, and the category parameters must be strictly decreasing, which nothing in the code checks. Finally, a mirt graded rating scale fit converts into this layout with a three-column recipe that reproduces mirt’s trace lines to machine precision.
Rendered with R 4.6.1 · validated against catR 3.17
