Line plot for a time series

Converts a ts object into a ggplot2 line chart with semi-transparent points and an overlaid linear trend line. The returned ggplot object can be extended with additional layers (e.g. geom_vline() to mark events).

Usage

plot_ts(df, base_size = 10, ylab = "Count", title = "")

Arguments

df

A ts object containing the time series to plot.

base_size

Base font size passed to theme_bw(). Default is 10.

ylab

Character string for the y-axis label. Default is "Count".

title

Character string used as the plot title. Default is "".

Value

A ggplot object showing the time series as a line with points, a linear trend line fitted via lm, and a caption reporting the total number of observations.

Examples

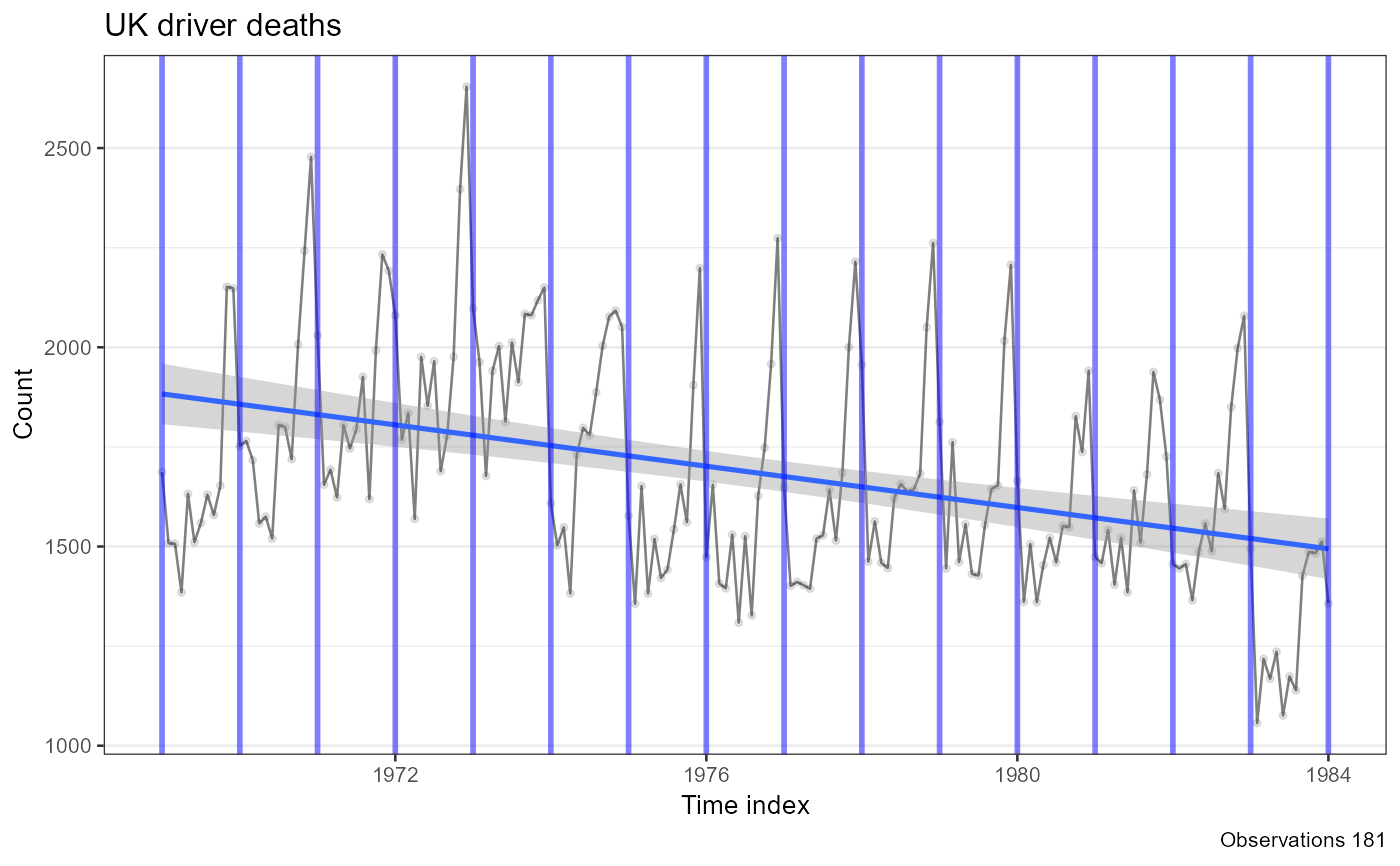

ts_data <- ts(UKDriverDeaths, start = 1969, end = 1984, frequency = 12)
result <- plot_ts(ts_data, title = "UK driver deaths")
for (i in 1969:1984) {
  result <- result + geom_vline(xintercept = i, color = "blue", size = 1, alpha = .5)
}
result

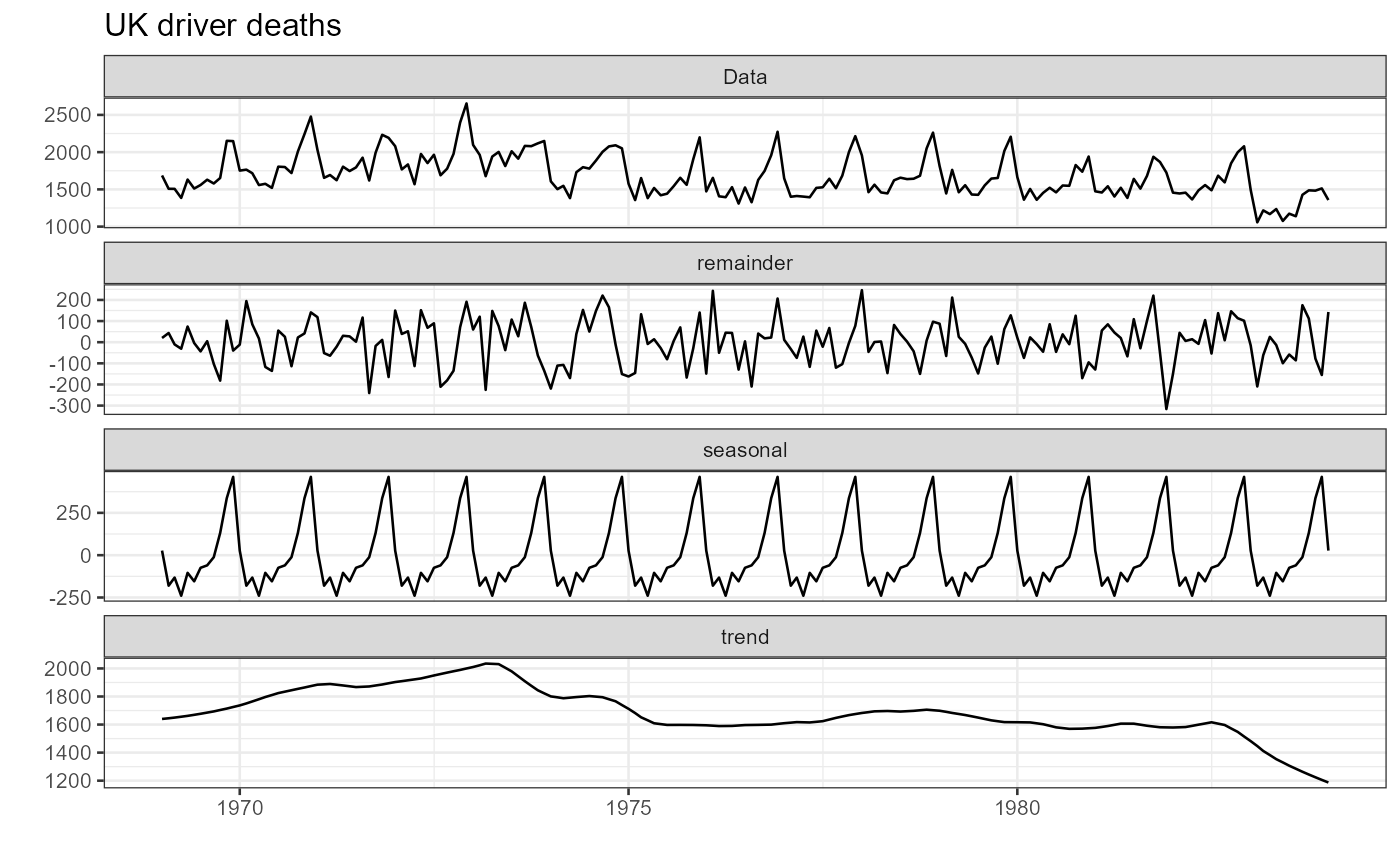

autoplot(stl(ts_data, s.window = "periodic")) +
  theme_bw(base_size = 10) +
  labs(title = "UK driver deaths")

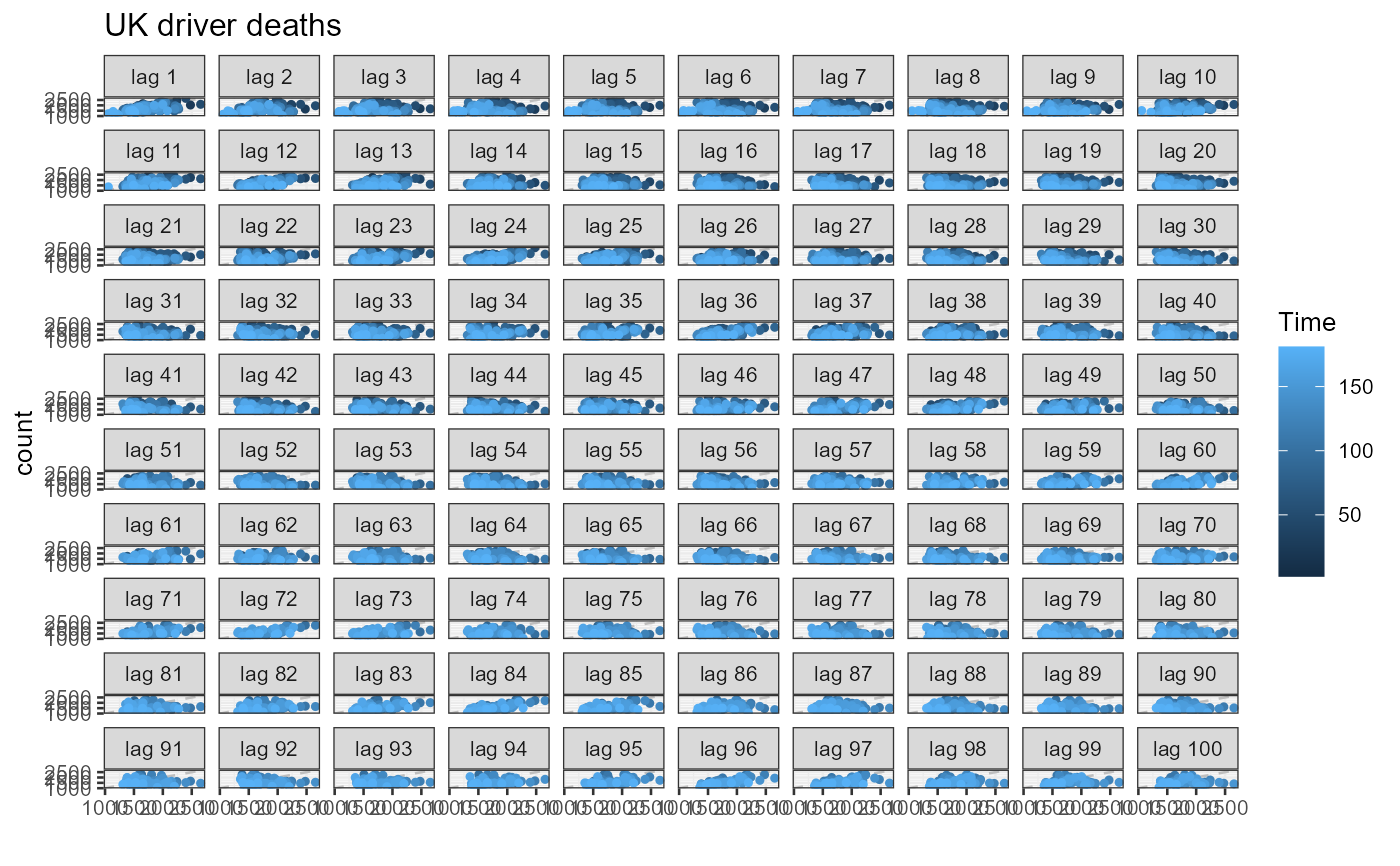

forecast::gglagplot(data.frame(ts_data), do.lines = FALSE, lags = 100) +
  theme_bw(base_size = 10) + labs(title = "UK driver deaths", y = "count")
#> Registered S3 methods overwritten by 'forecast':
#>   method                 from
#>   autoplot.Arima         ggfortify
#>   autoplot.acf           ggfortify
#>   autoplot.ar            ggfortify
#>   autoplot.bats          ggfortify
#>   autoplot.decomposed.ts ggfortify
#>   autoplot.ets           ggfortify
#>   autoplot.forecast      ggfortify
#>   autoplot.stl           ggfortify
#>   autoplot.ts            ggfortify
#>   fitted.ar              ggfortify
#>   fortify.ts             ggfortify
#>   residuals.ar           ggfortify
